Dahua XVR5104HS User Manual

200
3
Network port
100M Ethernet port
4
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
5
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
6
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
7
Power input port
Input 12V DC.
8
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
9
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
2.2.5 HCVR5104/5108C-S2 Series

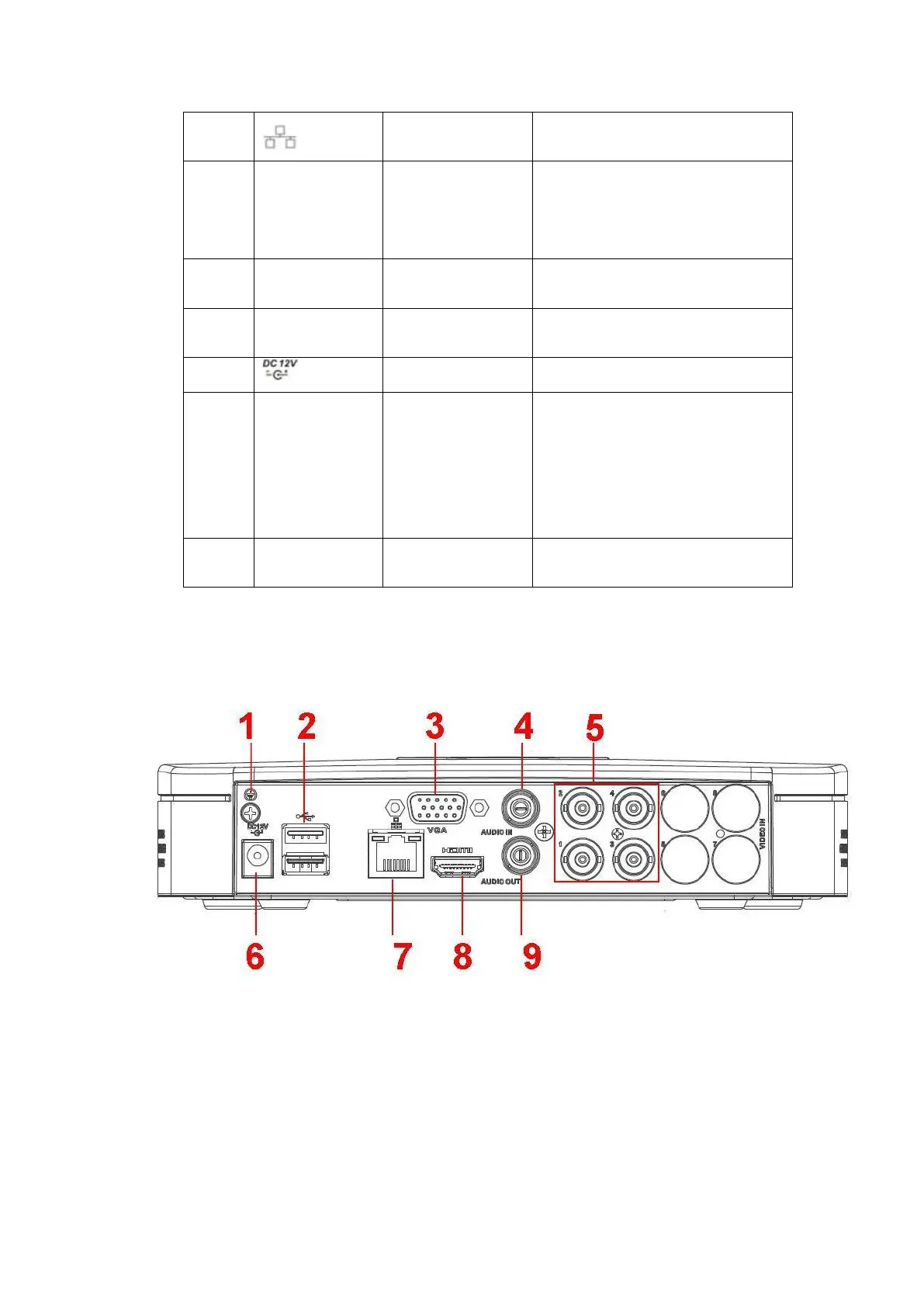

The HCVR5104C-S2 series rear panel is shown as below. See Figure 2- 17.
Figure 2- 17
The HCVR5108C-S2 series rear panel is shown as below. See Figure 2- 18.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
