Dahua XVR5104HS User Manual

580

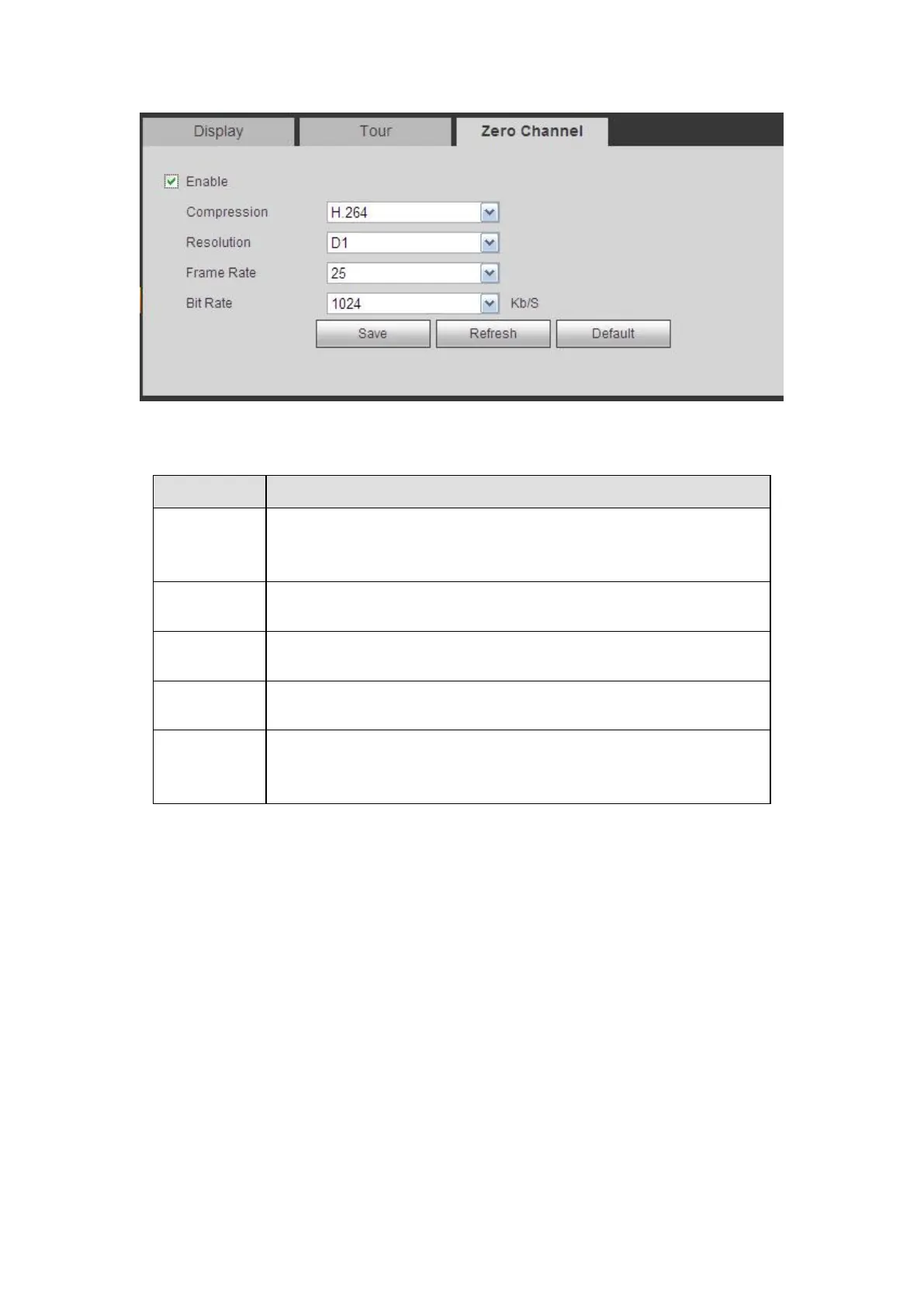

Figure 5- 119
Please refer to the following sheet for detailed information.
Parameter
Function
Enable
This function is disabled by default. Check the box here to enable
this function so that you can control the zero-channel encoding
function at the WEB.
Compression
System default setup is H.264. You can set according to device
capability.
Resolution
The resolution value may vary due to different device capabilities.
Please select from the dropdown list.
Frame rate
The frame rate value may vary due to different device capabilities.
Please select from the dropdown list.
Bit Rate
The default setup is 1024Kb/S. The bit rate value may vary due to
different device capabilities and frame rate setups. Please select
from the dropdown list.
5.10.5.3 Video Matrix
The interface is shown as in Figure 5- 120.
Here you can set video output channel and interval.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
