190
Record light
1-16
System is recording or not. It becomes on when system is
recording.
IR Receiver
IR
It is to receive the signal from the remote control.
2.1.6 HCVR42XXA-S2/ HCVR42XXAN-S2/ HCVR52XXA-S2/
HCVR5216AN-S2/HCVR720XA-S2/
HCVR42XXA-S3/HCVR42XXAN-S3/HCVR52XXA-S3/HCVR52XXAN-
S3/HCVR72XXA-S3/HCVR7216AN-S3/XVR42XXA/XVR42XXAN/XVR
52XXA/XVR52XXAN/XVR72XXA/XVR7216AN/HCVR
72XXAN-4M/HCVR720XAN-4K/XVR52XXAN-4M/
XVR52XXAN-4KL/XVR72XXA-4KL/XVR72XXA-4K/ XVR42XXA-S2/
XVR42XXAN-S2/ XVR52XXA-S2/ XVR52XXAN-S2 Series

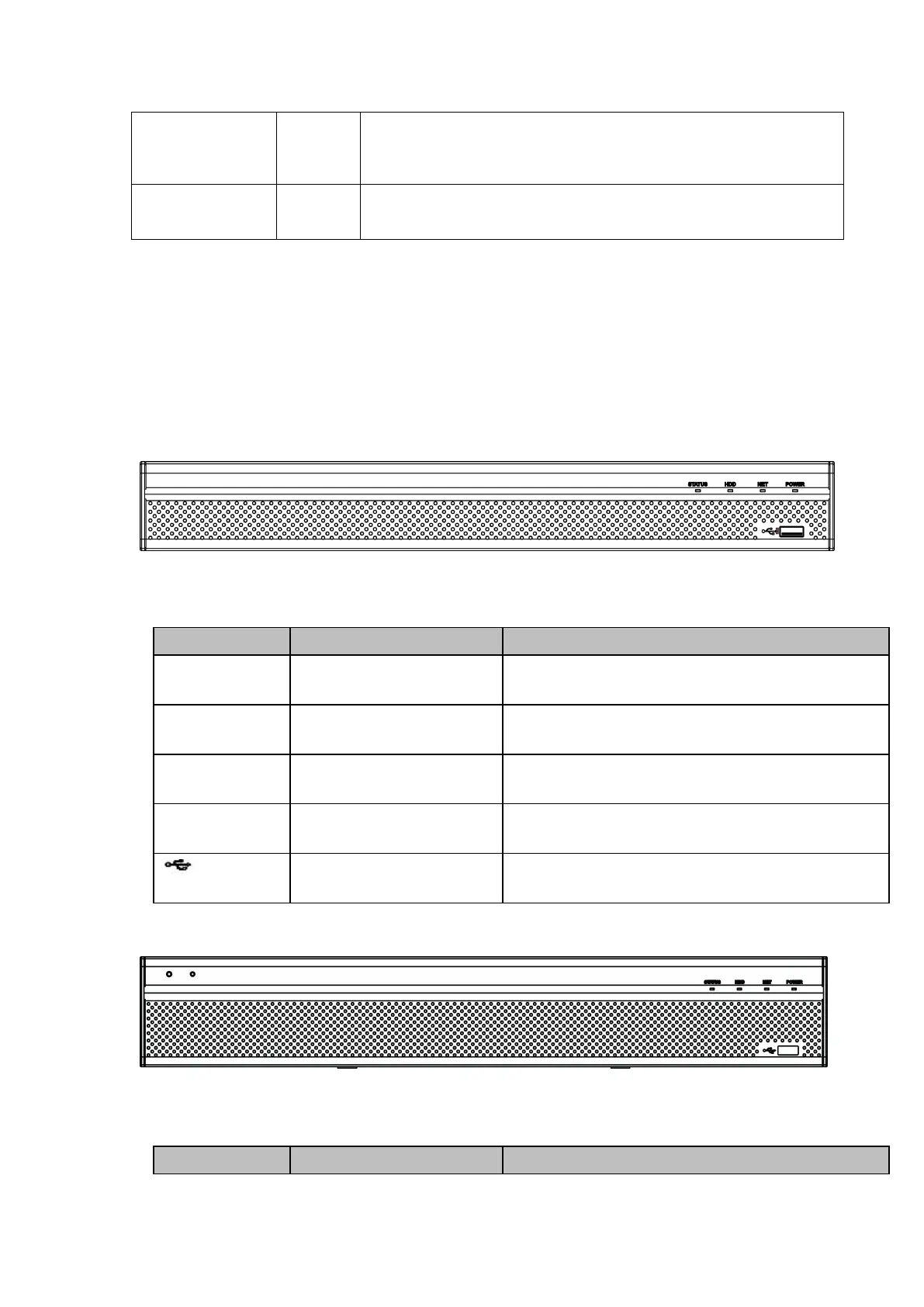

The front panel is shown as below. See Figure 2- 6.
Figure 2- 6
Please refer to the following sheet for front panel button information.
Icon
Name
Function
STATUS
Status indicator light
The blue light is on when the device is working
properly.
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
NET
Network status indicator
light
The blue light is on when the network connection is
abnormal.
POWER
Power status indicator light
The blue light is on when the power connection is
OK.
USB2.0 port
Connect to peripheral USB 2.0 storage device,
mouse, burner and etc.
2.1.7 HCVR42XXL-S2/HCVR44XXL-S2/ XVR54XXL/ XVR74XXL Series
The front panel is shown as below. See Figure 2- 7.
Figure 2- 7
Please refer to the following sheet for front panel button information.
Icon
Name
Function

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR5104HS and is the answer not in the manual?

Dahua XVR5104HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Audio Input/Output1/1, RCA
Video Output1 HDMI, 1 VGA
Network Interface1 RJ-45 Port (100M)
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Bit Rate32Kbps ~ 6144Kbps per channel
Operating Temperature-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input4+2 channel, each channel up to 6MP
Analog Video Input4 channel, BNC
USB Interface2x USB 2.0
HDD1 SATA port, up to 6TB
Dimensions260mm x 236mm x 48mm
HDCVI Camera Input4 channels
AHD Camera Input4 channels
TVI Camera Input4 channels
Operating Humidity10% ~ 90%
Resolution1080N, 720p, 960H, D1, CIF
Record RateUp to 25/30fps
