Dahua XVR5104HS User Manual

599
e) System only checks start address if you add IP address. System check start
address and end address if you add IP section and the end address shall be
larger than the start address.
f) System may check newly added IP address exists or not. System does not add if
input IP address does not exist.

Delete: Click it to remove specified item.

Edit: Click it to edit start address and end address. See Figure 5- 149. System can
check the IP address validity after the edit operation and implement IPv6 optimization.

Default: Click it to restore default setup. In this case, the trusted sites and blocked
sites are both null.
Step 4 Click Save to complete setup.

If you enabled trusted sites, only the IP in the trusted sites list can access the
device.

If you enabled blocked sites, the IP in the blocked sites cannot access the
device.

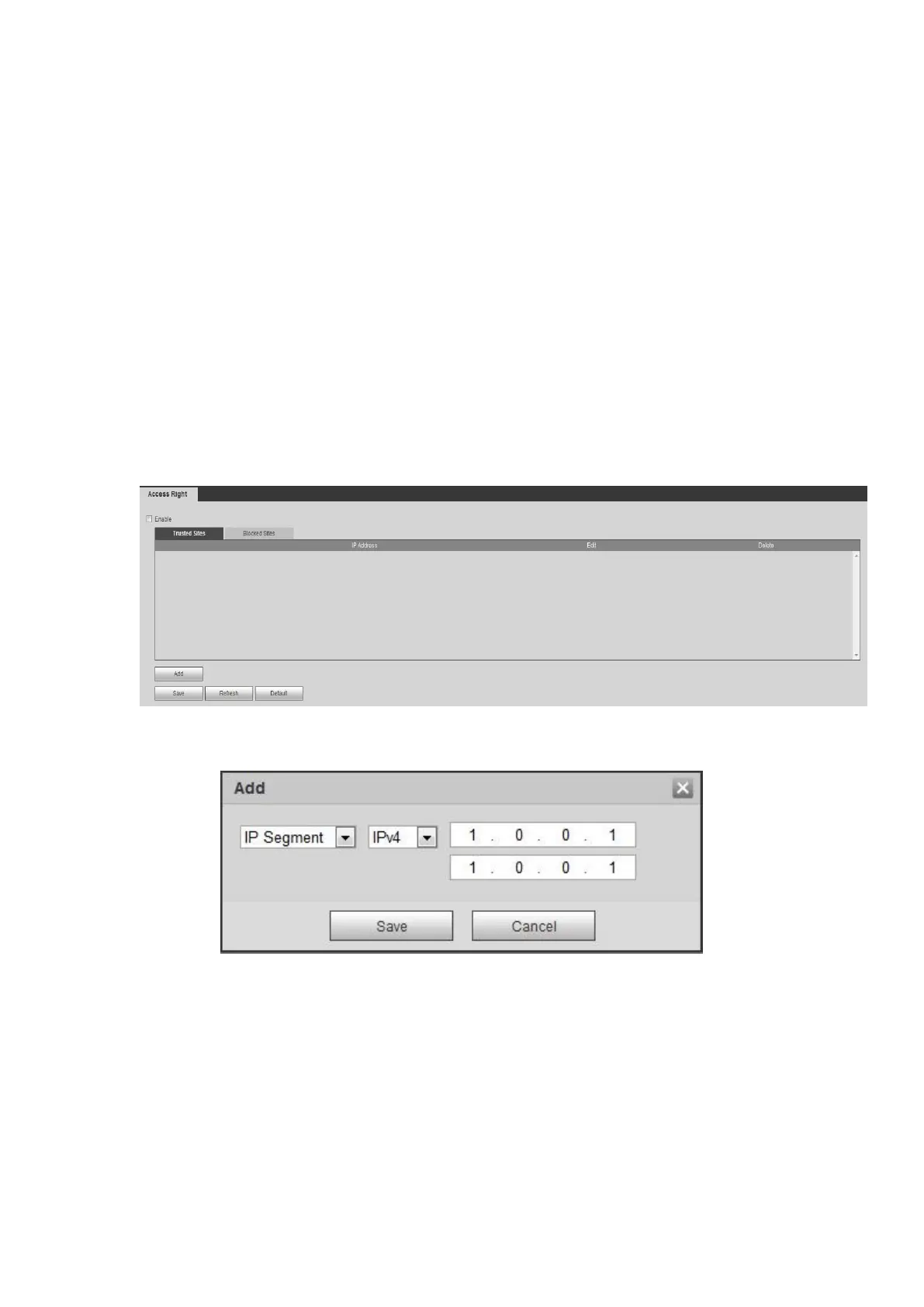

Figure 5- 148
Figure 5- 149
5.11 Information
5.11.1 Version
Here you can view record channel, alarm input/output information, software version,
release date and etc.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
