Dahua XVR5104HS User Manual

504
5.10.1 Camera
It is to add network camera, set camera properties and set encode parameters.
5.10.1.1 Remote Device (For digital channel only)

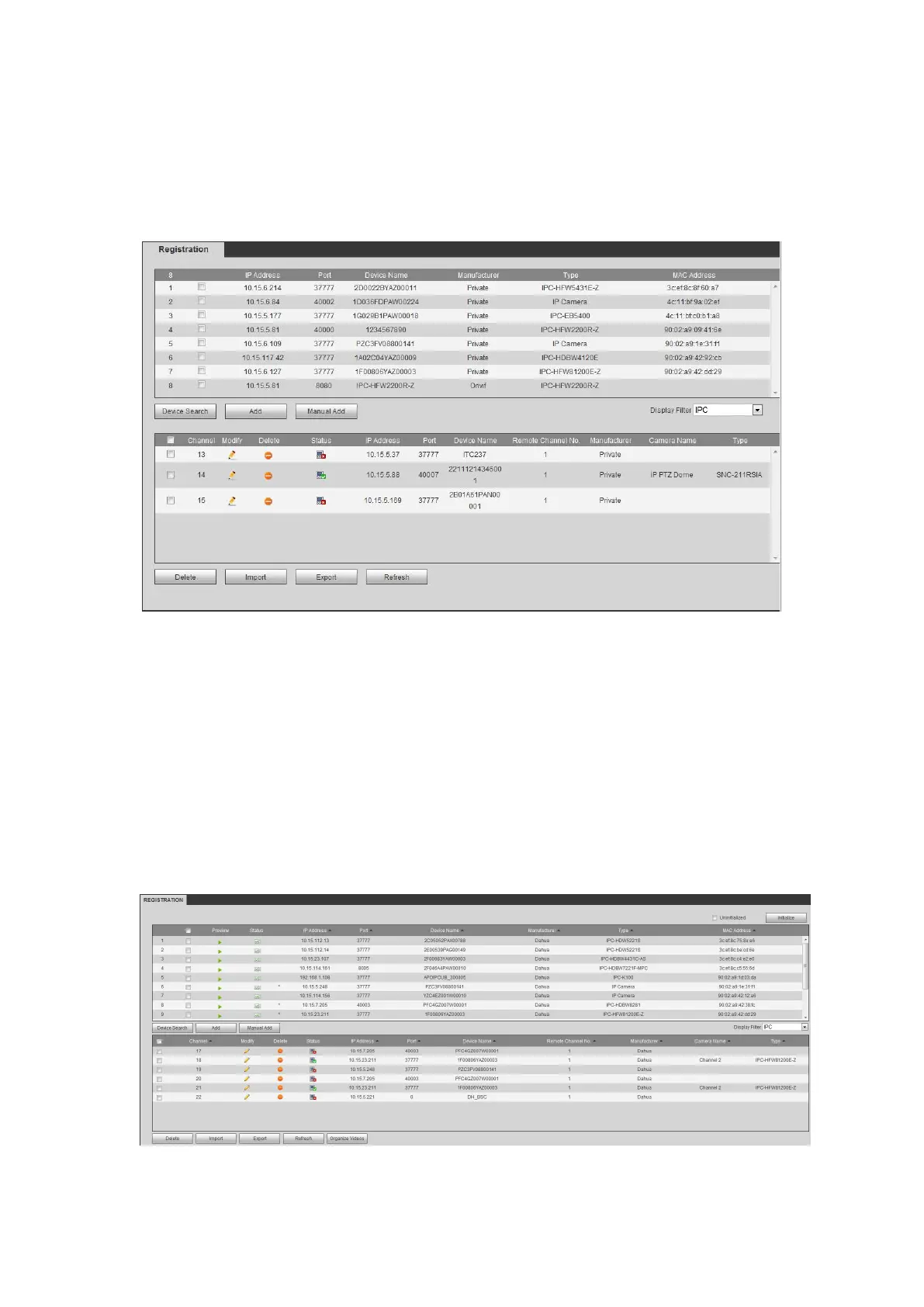

From main window->Setup->Camera->Registration, registration interface is shown as
below. See Figure 5- 22.
Figure 5- 22
5.10.1.1.1 Initialize Camera
It is to initialize connected remote device and change its login password and IP address.
Steps:
Step 1 From main interface->Setting->Camera->Registration.
Enter Registration interface. See Figure 5- 23.
Step 2 Click IP search and check the Uninitialized box.
Device displays uninitialized camera.
Figure 5- 23

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
