437
4.9.3.10 Alarm Output
Here is for you to set proper alarm output such as auto, manual. See Figure 4- 169.
Please highlight icon to select the corresponding alarm output.
Click Apply or Save to complete setup.

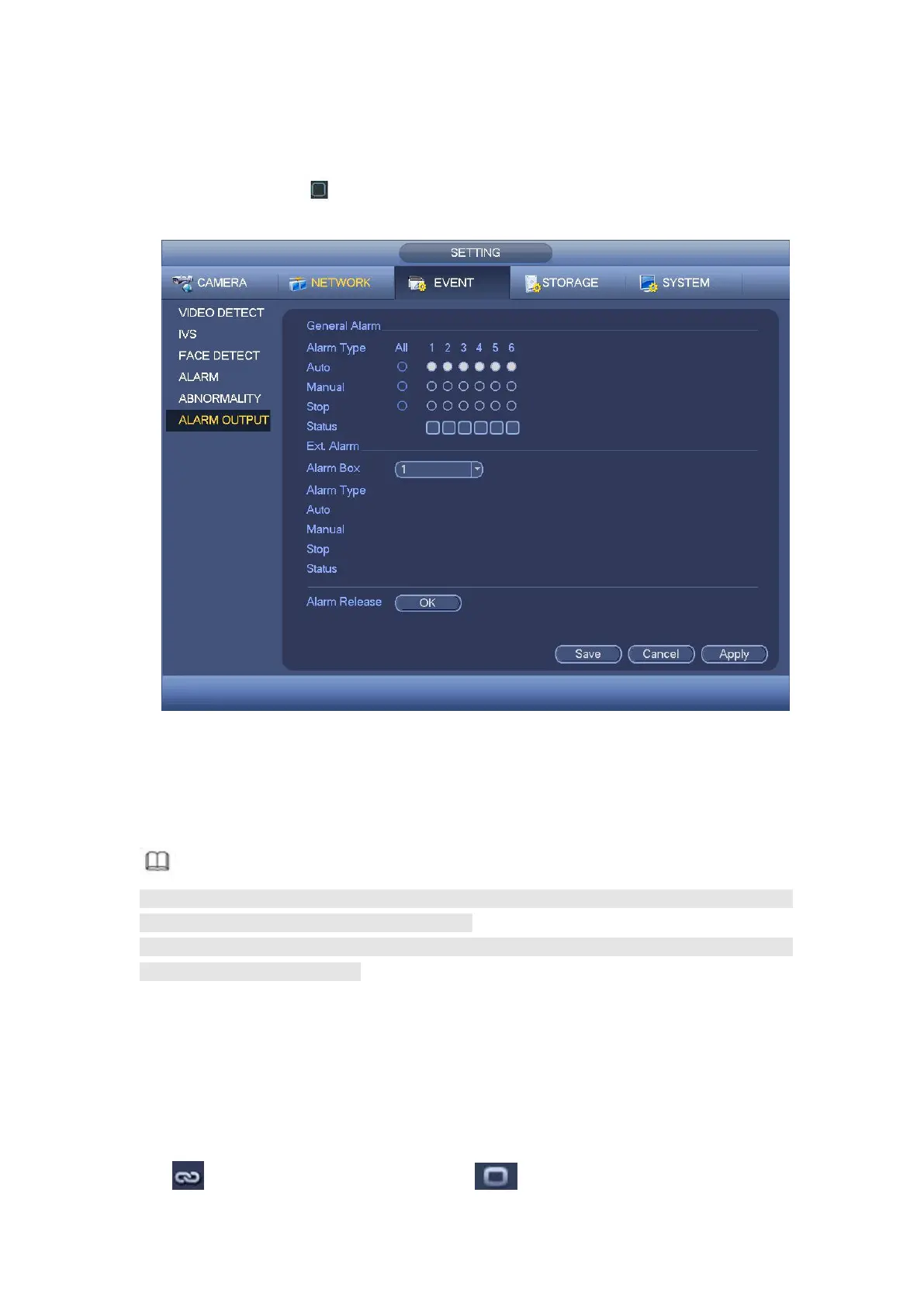

Figure 4- 169
4.9.4 Storage
4.9.4.1 Schedule
4.9.4.1.1Record
Note
You need to have proper rights to implement the following operations. Please make
sure the HDDs have been properly installed.
After the system booted up, it is in default 24-hour regular mode. You can set record type
and time in schedule interface.
In the main menu, from Setting->Storage->Schedule, you can go to schedule menu.
See Figure 4- 173.
Please note you need to go to main menu->Setting->System->General->Holiday to
set holiday date first, otherwise, there is no holiday setup item.
Channel: Please select the channel number first. You can select all if you want to
set for the whole channels.
: Sync connection icon. Select icon of several dates, all checked items
