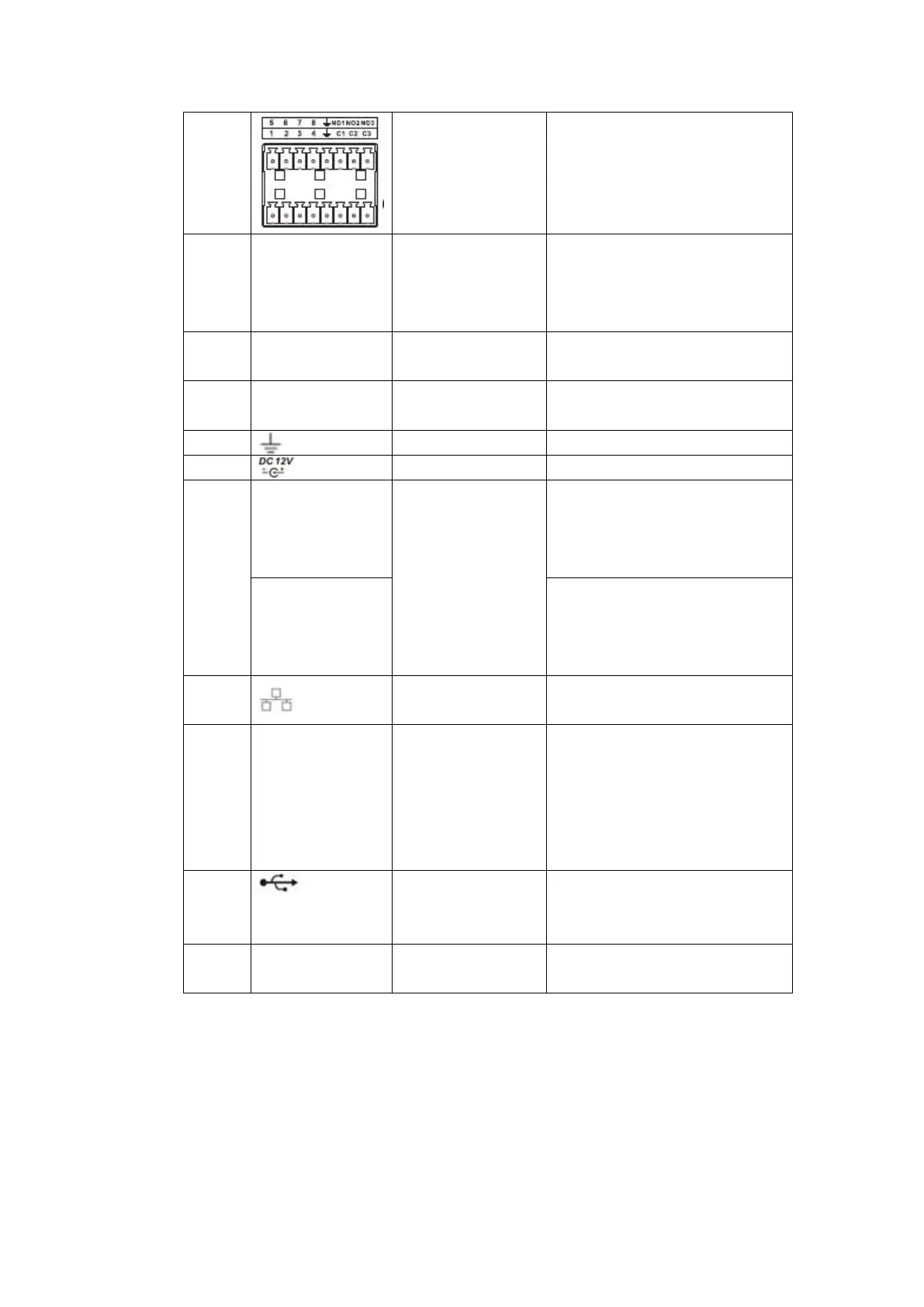

213
2
Alarm input/Alarm
output
Input/output alarm signal.
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can
connect to the monitor to view
ananlog video output.
4
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
5
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
6
GND
Ground end
7
Power input port
Input 12V DC.
8
A
RS485RS-485
communication
port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control
devices such as speed dome
PTZ.
9
Network port
100M Ethernet port
10
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
11
USB2.0 port
Connect to USB storage
device, mouse, burning
DVD-ROM and etc.
12
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
2.2.14 HCVR7104H-V2/HCVR7108H-V2 Series
The HCVR7104H-V2 series rear panel is shown as below. See Figure 2- 36.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR5104HS and is the answer not in the manual?

Dahua XVR5104HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Audio Input/Output1/1, RCA
Video Output1 HDMI, 1 VGA
Network Interface1 RJ-45 Port (100M)
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Bit Rate32Kbps ~ 6144Kbps per channel
Operating Temperature-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input4+2 channel, each channel up to 6MP
Analog Video Input4 channel, BNC
USB Interface2x USB 2.0
HDD1 SATA port, up to 6TB
Dimensions260mm x 236mm x 48mm
HDCVI Camera Input4 channels
AHD Camera Input4 channels
TVI Camera Input4 channels
Operating Humidity10% ~ 90%
Resolution1080N, 720p, 960H, D1, CIF
Record RateUp to 25/30fps
