Dahua XVR5104HS User Manual

607

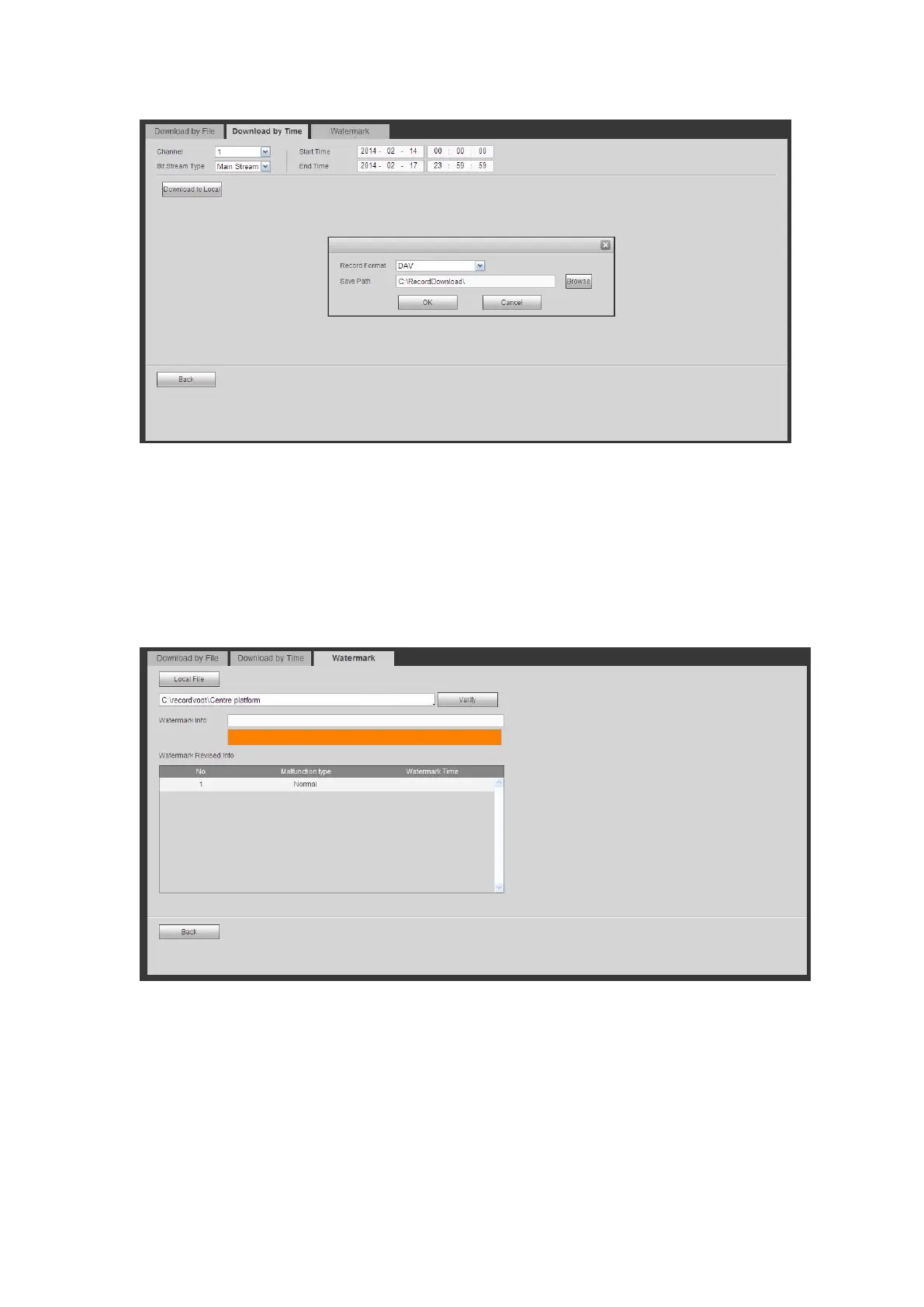

Figure 5- 162
Set record format and saved path, you can click OK to download and view the download
process. After the download operation, you can see corresponding dialog box.
5.12.6.3 Watermark
Watermark interface is shown as In Figure 5- 163. Please select a file and then click Verify
button to see the file has been tampered with or not
Figure 5- 163
5.13 Face Search
On the main interface, click Face search button, you can see an interface shown as
below. See Figure 5- 164.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
