369
4.8.1.8 Version
Here is for you to view some version information such as version number, built date, serial
number and etc.
4.8.2 Event

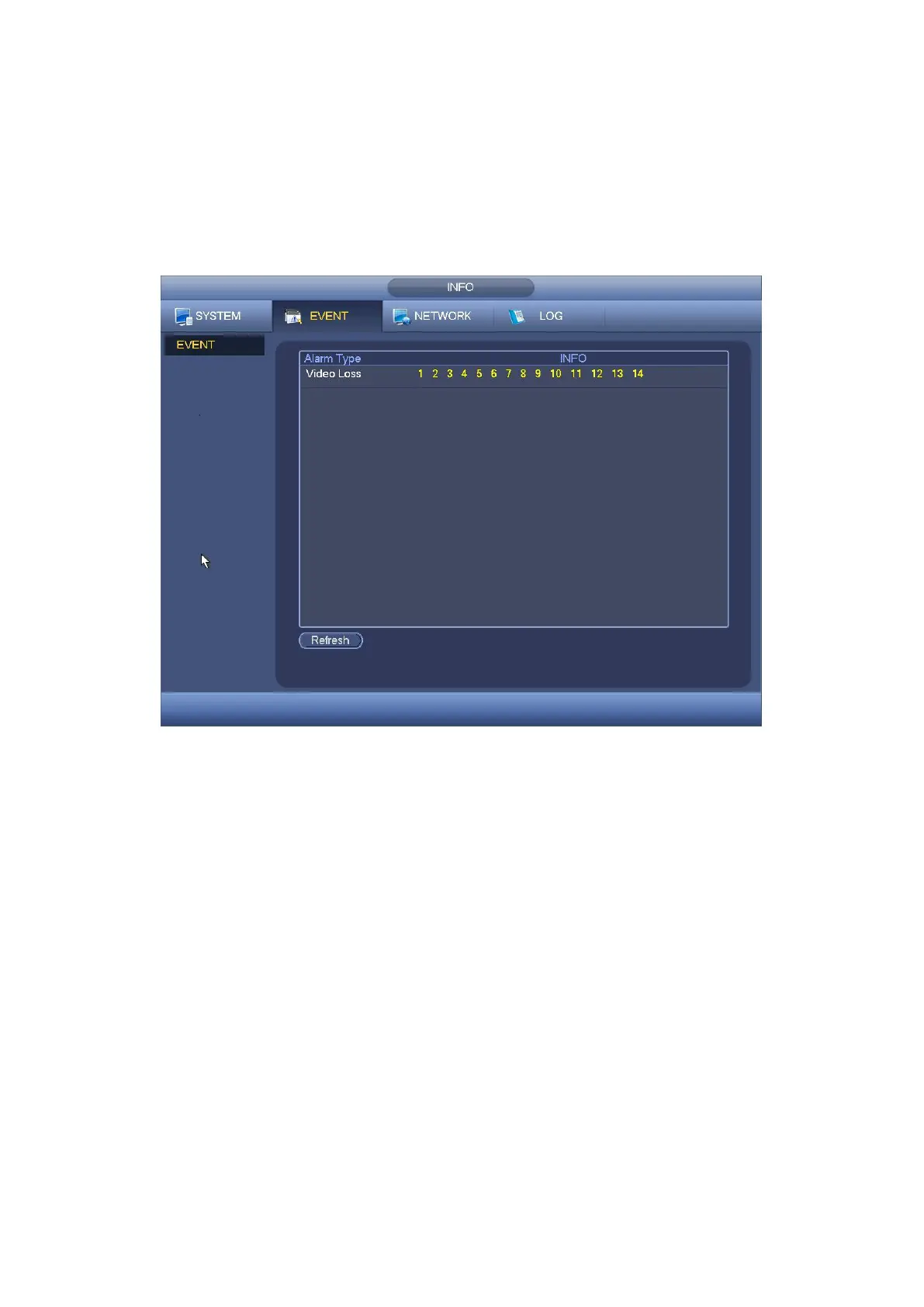

It is to display device status and channel status. See Figure 4- 95.
Figure 4- 95
4.8.3 Network
4.8.3.1 Online Users
Here is for you to manage online users. See Figure 4- 96.
You can disconnect one user or block one user if you have proper system right. Max
disconnection setup is 65535 seconds.
System detects there is any newly added or deleted user in each five seconds and refresh
the list automatically.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR5104HS and is the answer not in the manual?

Dahua XVR5104HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Audio Input/Output1/1, RCA
Video Output1 HDMI, 1 VGA
Network Interface1 RJ-45 Port (100M)
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Bit Rate32Kbps ~ 6144Kbps per channel
Operating Temperature-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input4+2 channel, each channel up to 6MP
Analog Video Input4 channel, BNC
USB Interface2x USB 2.0
HDD1 SATA port, up to 6TB
Dimensions260mm x 236mm x 48mm
HDCVI Camera Input4 channels
AHD Camera Input4 channels
TVI Camera Input4 channels
Operating Humidity10% ~ 90%
Resolution1080N, 720p, 960H, D1, CIF
Record RateUp to 25/30fps
