Important
Add/cancel IP CAM function is for some series product only.

Add IP CAM: Click it; you can add corresponding X IP channels. Here X refers to the
product channel amount. Please refer to chapter 1.3 Specifications for IP channel
amount information. System needs to restart to activate new setup.
For example, there is a 4-channel analog device, after the A/D switch, it can max
supports 4 analog channels and 4 IP channels. Once it has become the 3+1 mode (3
analog channels+1 IP channel), you click button, system becomes
3+5 mode (3 analog channels+5 IP channel).

Cancel IP CAM: Click it, you can cancel IP channel. System needs to restart to
restore original status.
5.10.2 Network
5.10.2.1 TCP/IP

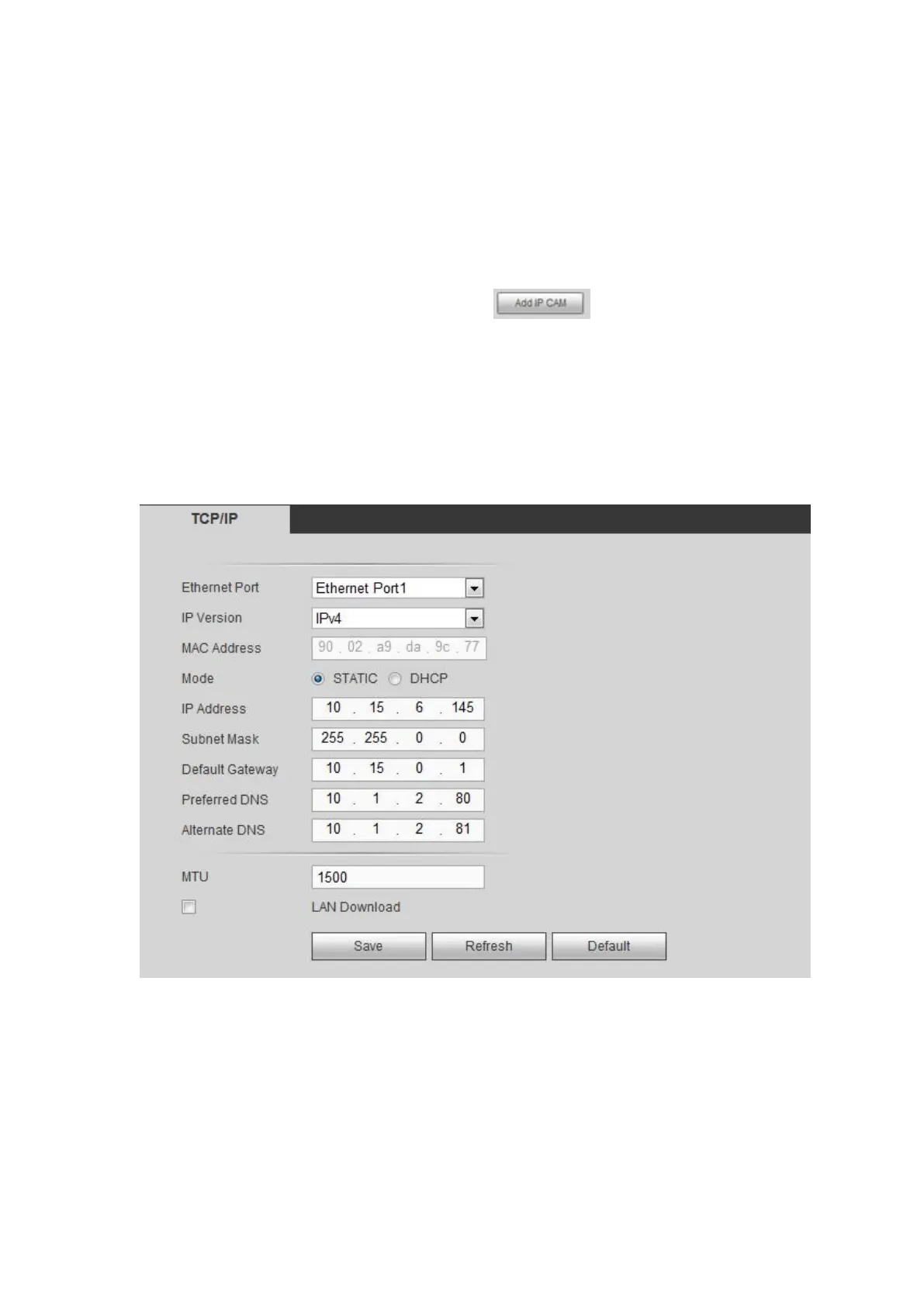

The single-Ethernet port interface is shown as in Figure 5- 40.
Figure 5- 40
The dual-Ethernet port interface is shown as in Figure 5- 41.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
