Dahua XVR5104HS User Manual

234
SN
Icon

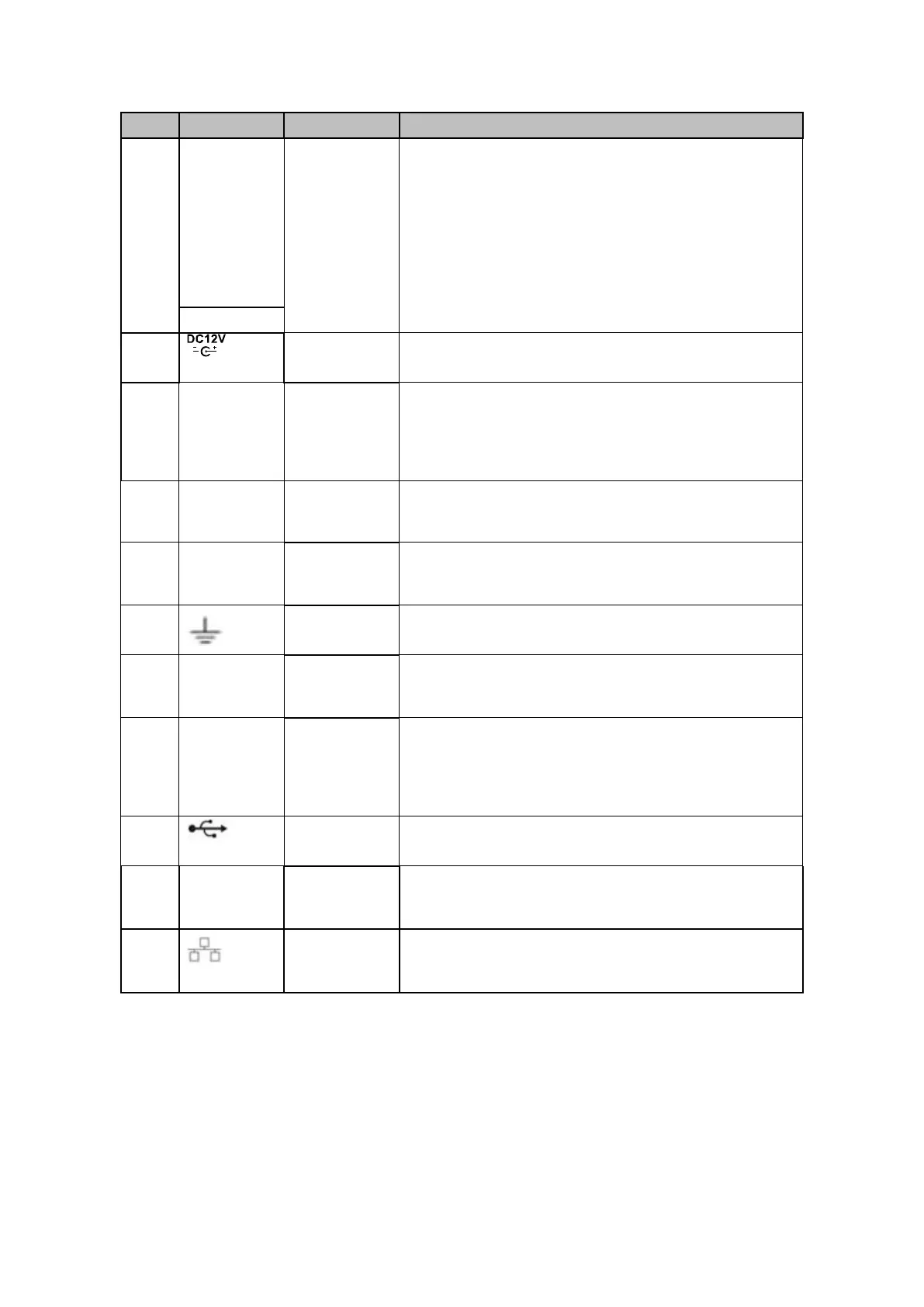

Name
Note
NO1～NO3
Alarm output
port 1～3
 3 groups of alarm output ports. (Group 1:port
NO1 ～ C1,Group 2:port NO2 ～ C2,Group 3:port
NO3 ～ C3 ） ).Output alarm signal to the alarm
device. Please make sure there is power to the
external alarm device.
 NO:Normal open alarm output port.
 C:Alarm output public end.
C1～C3
3
Power input
port
Input DC 12V/5A.
4
AB
RS-485
communicati
on port
 RS485_A port. It is the cable A. You can connect
to the control devices such as speed dome PTZ.
 RS485_B.It is the cable B. You can connect to
the control devices such as speed dome PTZ.
5
AUDIO IN
Audio input
port
It is to receive the analog audio signal output from the
devices such as mike phone, pickup.
6
VIDEO IN
Video input
port
Connect to analog camera to input video signal.
7
GND
Alarm input ground port.
8
AUDIO
OUT
Audio output
port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
9
HDMI
High
Definition
Media
Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device.
10
USB2.0 port
USB2.0 port. Connect to mouse, USB storage device,
USB burner and etc.
11
VGA
VGA video
output port
VGA video output port. Output analog video signal. It
can connect to the monitor to view analog video.
12
Network port
1000M Ethernet port
2.2.26 HCVR42XXA-S2/ HCVR4216AN-S2 Series
This HCVR4204A-S2 rear panel is shown as below. See Figure 2- 63.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
