Dahua XVR5104HS User Manual

402
For example:
Multiple cast IP: 235.8.8.36
Multiple cast PORT: 3666.
After you logged in the Web, the Web can automatically get multiple cast address and add
it to the multiple cast groups. You can enable real-time monitor function to view the view.
Please note multiple cast function applies to special series only.
4.9.2.12 Auto register
This function allows the device to auto register to the proxy you specified. In this way, you
can use the client-end to access the DVR and etc via the proxy. Here the proxy has a
switch function. In the network service, device supports the server address of IPv4 or
domain.
Please follow the steps listed below to use this function.
Please set proxy server address, port, and sub-device name at the device-end. Please
enable the auto register function, the device can auto register to the proxy server.

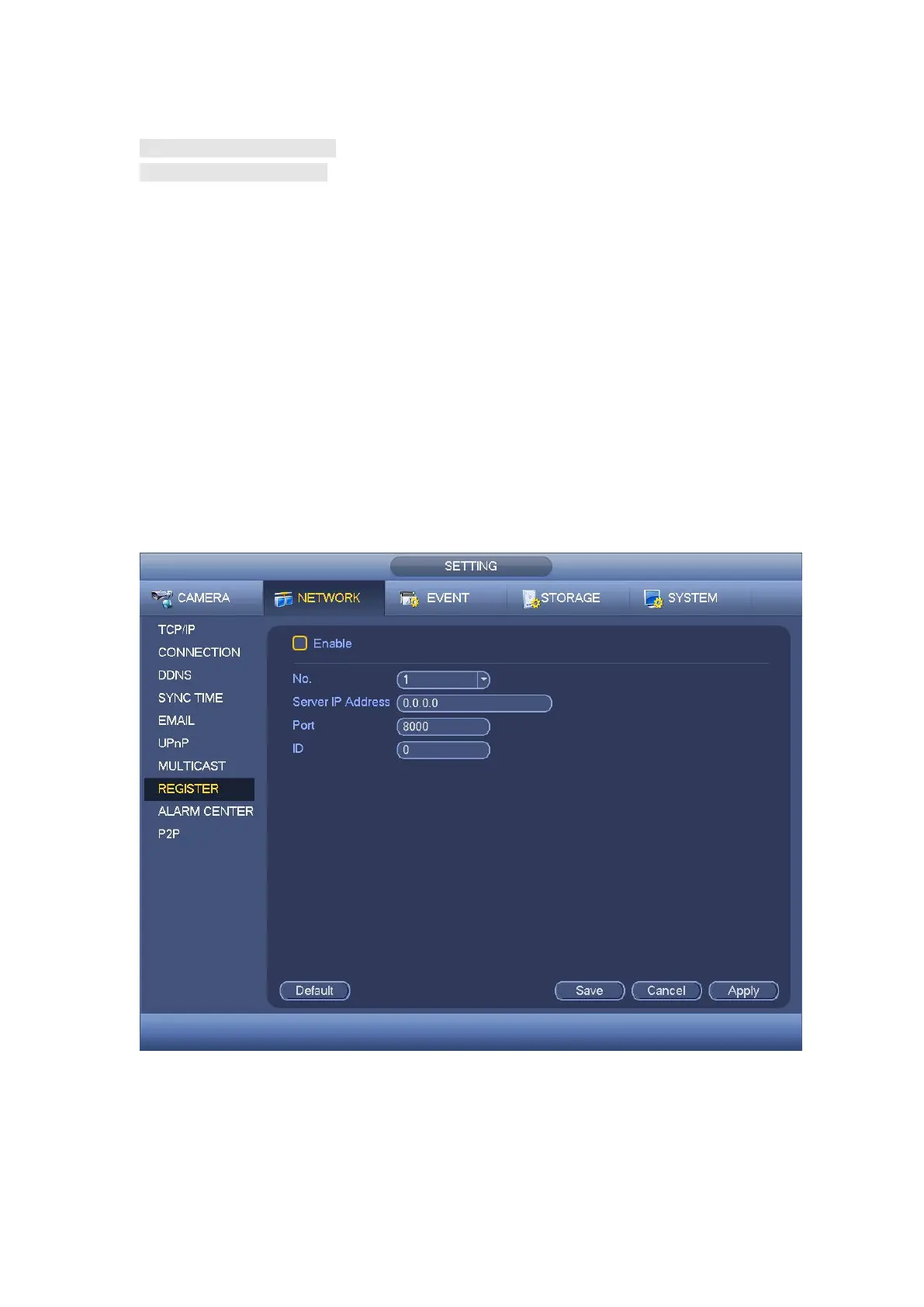

1) The setup interface is shown as in Figure 4- 131.
Important
Do not input network default port such as TCP port number.
Figure 4- 131
2) The proxy server software developed from the SDK. Please open the software and
input the global setup. Please make sure the auto connection port here is the same as the
port you set in the previous step.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
