Dahua XVR5104HS User Manual

345
4.3.9 Record Control
Please refer to chapter 4.9.4.5 for detailed information.
4.3.10 Alarm Output
Please refer to chapter 4.9.3.10 for detailed information.
4.3.11 Remote Device
Please refer to chapter 4.9.1.1 for detailed information.
4.3.12 Video Matrix
Please refer to chapter 4.9.5.3 for detailed information.
4.3.13 Main menu
Please refer to chapter 4.6 for detailed information.
4.4 Navigation Bar
You need to go to the Main menu->Setting->System->General to enable navigation
bar function; otherwise you cannot see the following interface.

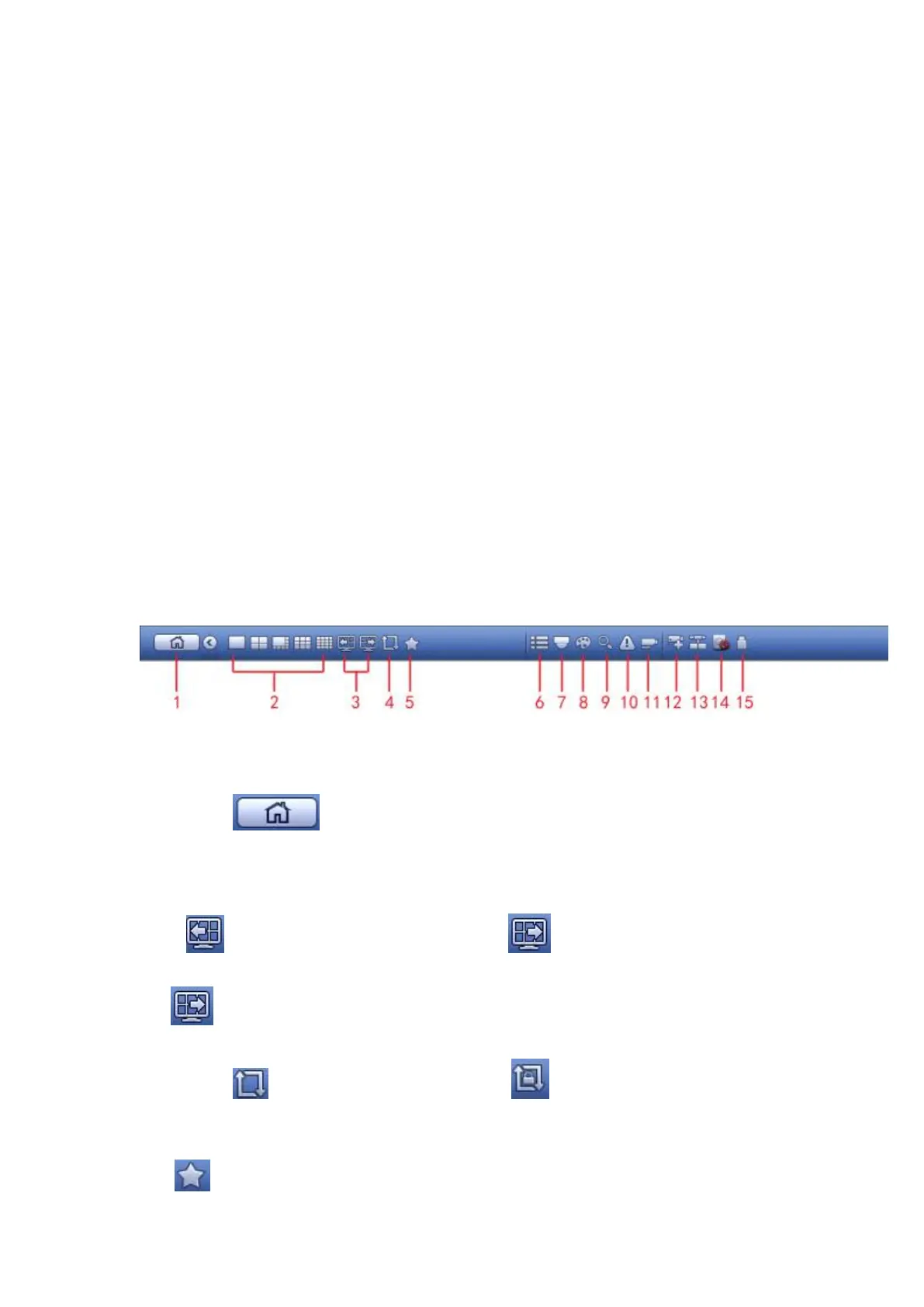

The navigation bar is shown as below. See Figure 4- 66.
Figure 4- 66
4.4.1 Main Menu
Click button to go to the main menu interface.
4.4.2 Output Screen
Select corresponding window-split mode and output channels.
4.4.3 Previous/Next Screen
Click to go to the previous screen, click to go to the next screen. For
example, if you are using 4-split mode, the first screen is displaying the channel 1-4,
click , you can view channel 5-8.
4.4.4 Tour
Click button to enable tour, the icon becomes , you can see the tour is in
process.
4.4.5 Favorites
Click , system pops up add/edit favorites. See Figure 4- 67.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
