Dahua XVR5104HS User Manual

193
Record light
1-16
System is recording or not. It becomes on when system is
recording.
2.1.9 HCVR58XXS-V2 Series

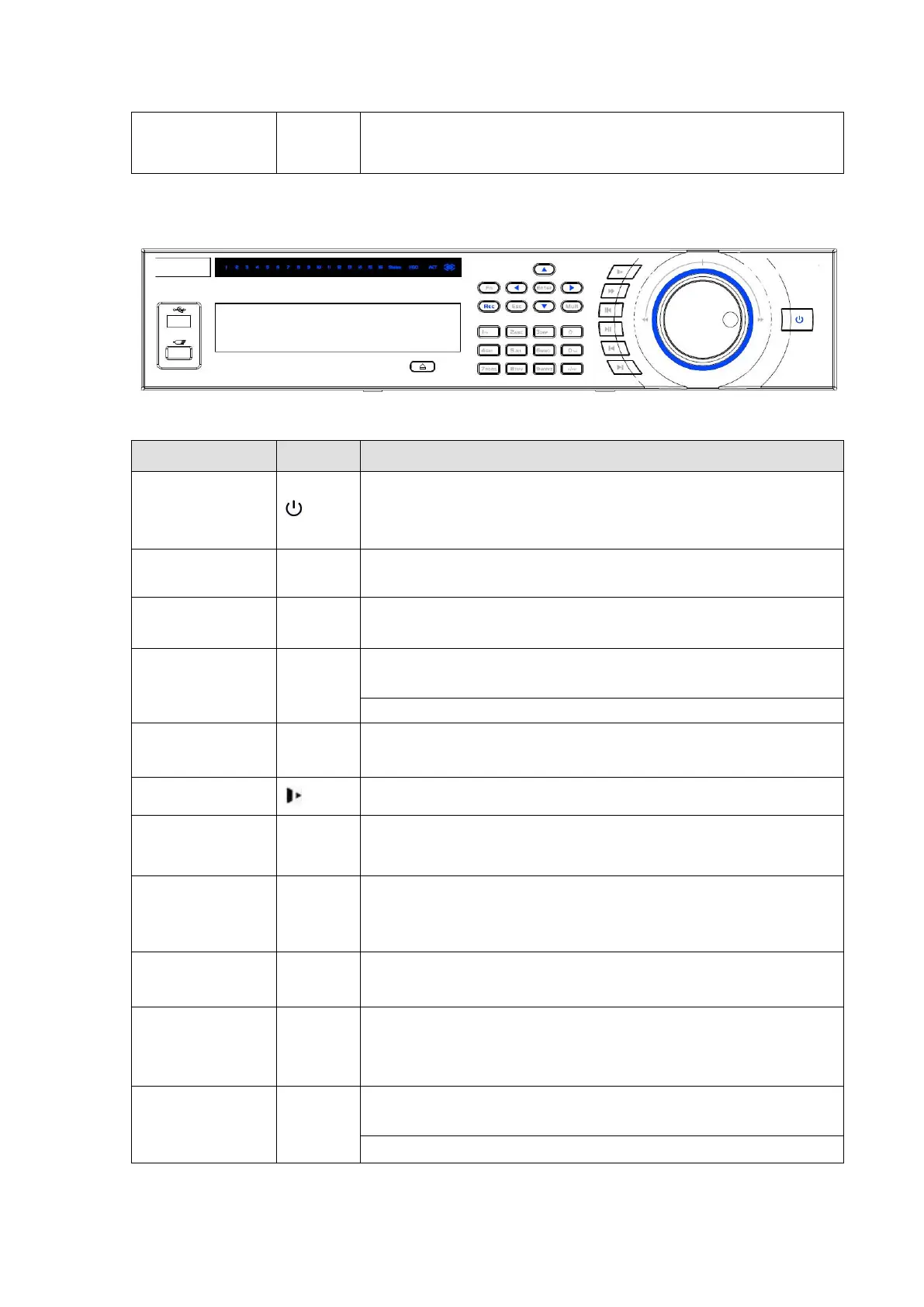

This series products’ front panel is shown as below. See Figure 2- 9.
Figure 2- 9
Please refer to the following sheet for front panel button information.
Name
Icon
Function
Power button
Power button, press this button for three seconds to boot up or
shut down DVR.
Number button
0-9
Input Arabic number
Switch channel
Input number
more than 10
-/--
If you want to input a number more than 10, please click this
button and then input.
Shift

In textbox, click this button to switch between numeral,
English(Small/Capitalized),donation and etc.
Enable or disable tour.
Fast play

Various fast speeds and normal playback.
Slow play
Multiple slow play speeds or normal playback.
Play/Pause

In normal playback click this button to pause playback
In pause mode, click this button to resume playback.
Reverse/Pause

In normal playback or pause mode, click this button to reverse
playback
In reverse playback, click this button to pause playback.
Play previous
|
In playback mode, playback the previous video
Play Next
|
In playback mode, playback the next video
In menu setup, go to down ward of the dropdown list.
Up/
Down
、
Activate current control, modify setup, and then move up and
down.
Increase/decrease numeral.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
