Dahua XVR5104HS User Manual

224
5
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
6
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
7
GND
Ground end
8
Power input port
Input 12V DC.
9
USB2.0 port
Connect to USB storage
device, mouse, burning
DVD-ROM and etc.
10
A
RS485（RS-485）
communication
port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control
devices such as speed dome
PTZ.
11
Network port
100M Ethernet port
12
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.

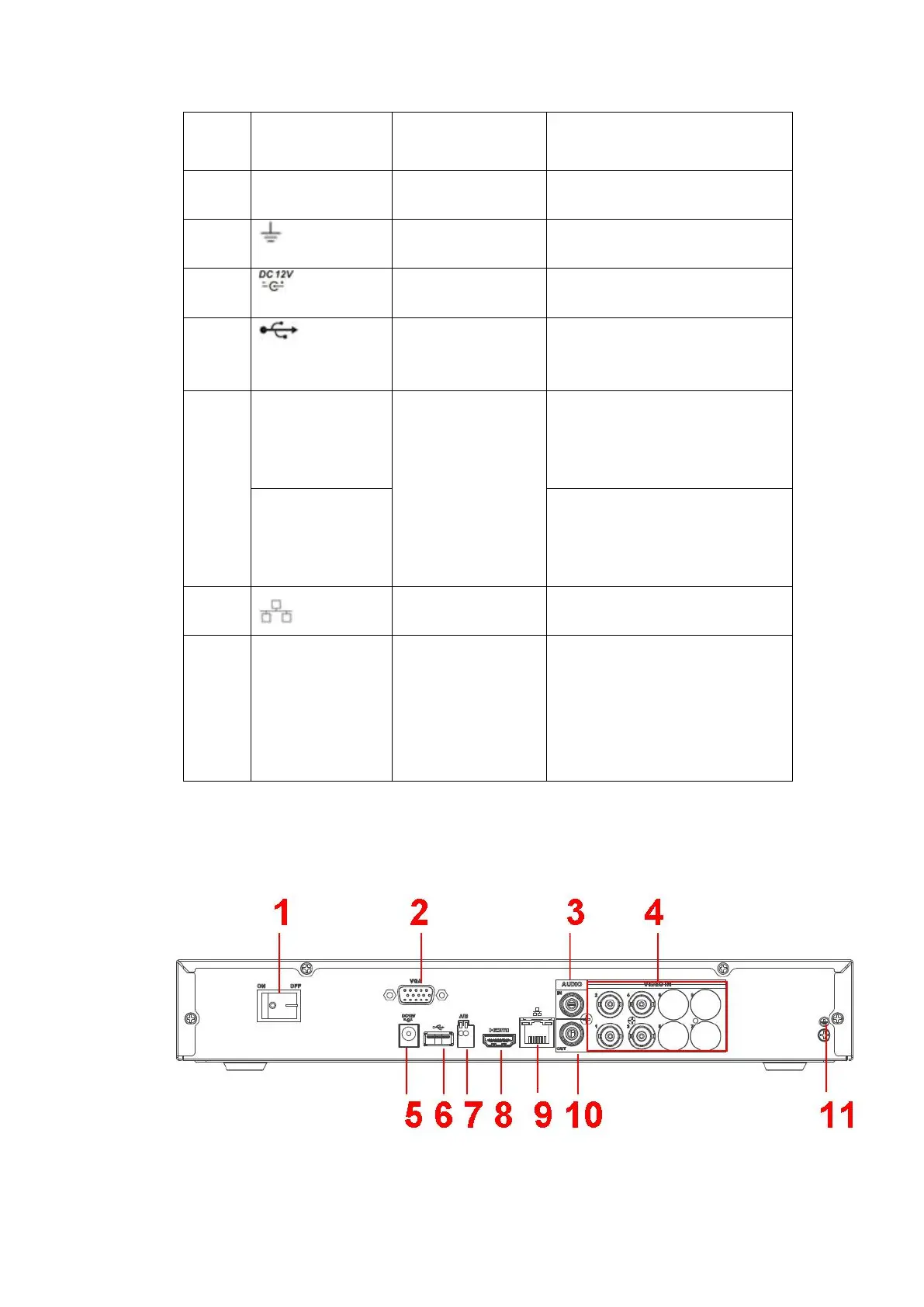

2.2.20 HCVR7104/7108H-S2 Series
The HCVR7104H-S2 series rear panel is shown as below. See Figure 2- 51.
Figure 2- 51

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
