Dahua XVR5104HS User Manual

283
○
4

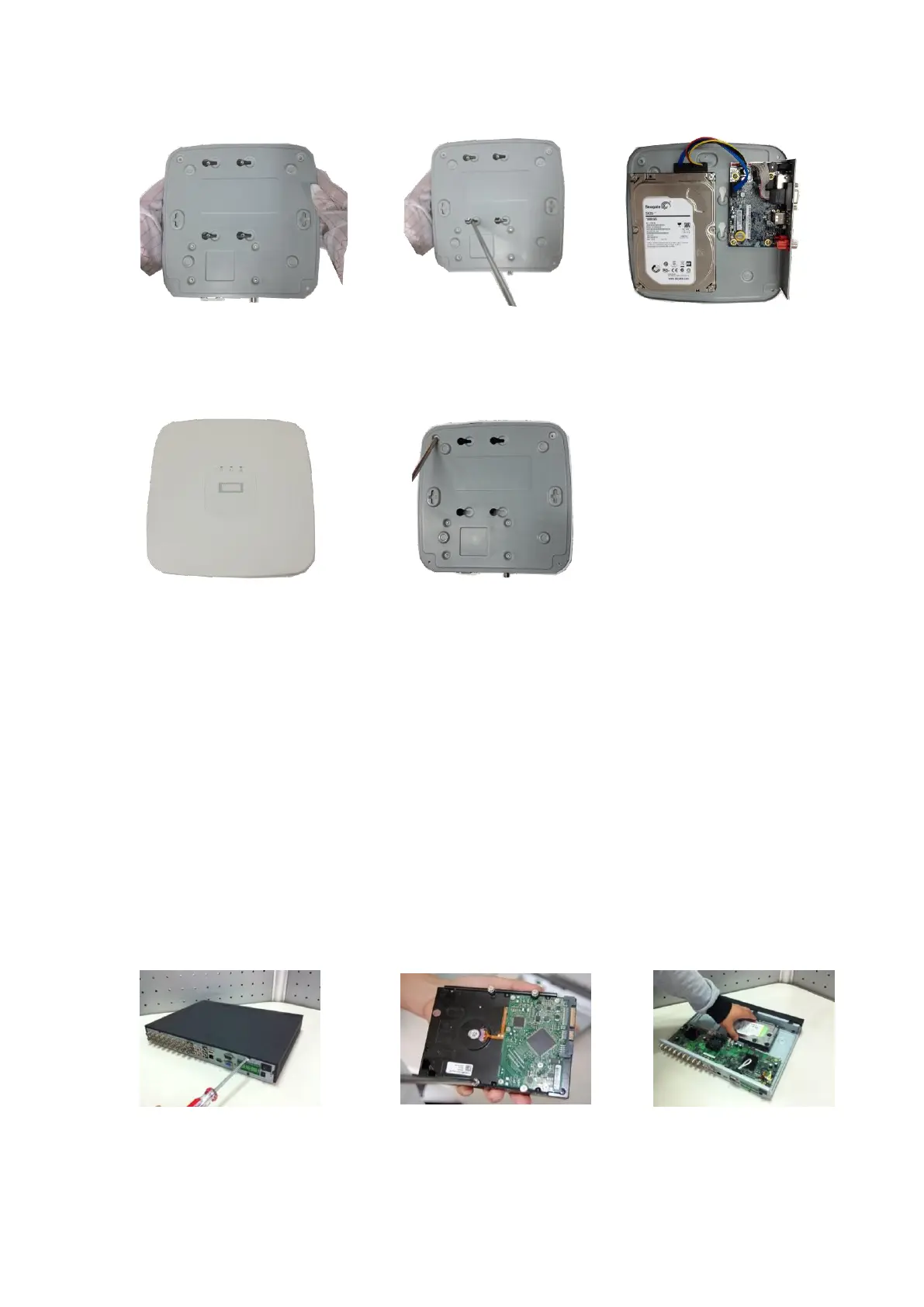

Turn the device upside down and
then turn the screws in firmly.
○
5
Fix the HDD firmly
.
○
6
Connect the HDD cable and
power cable.
○
7
Put the cover in accordance with
the clip and then place the upper cover
back.
○
8
Secure the screws in the rear panel and the side panel.
3.3.3 Compact 1U and Mini 1U Series

The mini 1U series includes
HCVR51XXH/51XXHC/51XXHE/51XXH-V2/HC-V2/HE-V2/71XXH-V2/71XXHC-V2/7
1XXHE-V2/ HCVR41XXHE-S2/ HCVR51XXH-S2/ HCVR51XXHE-S2/
HCVR710XH-S2/HCVR710XHE-S2/XVR41XXHE/XVR51XXHE/XVR71XXH/XVR71
XXHE/HCVR710XH-4K/XVR51XXH-S2/XVR51XXHE-S2 and etc.

The compact 1U series includes HCVR41XXHS-S2/HCVR2108HS-S2/
HCVR2116HS-S2/HCVR21XXHS-S2/XVR21XXHS/XVR41XXHS/51XXHS/7104HS/
XVR41XXHS-S2/ XVR51XXHS-S2 and etc.
The series DVR has one SATA HDD.
①Loosen the screws of the upper cover
and side panel.
② Fix four screws in the HDD (Turn
just three rounds).
③ Place the HDD in accordance
with the four holes in the bottom.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
