1: Fisheye: Click to adjust fisheye installation mode and display mode. See Figure
5- 16. Please note this function is for some series only.

2: Digital zoom: Click this button and then left drag the mouse in the zone to zoom in.
right click mouse system restores original status.

3: Local record. When you click local record button, the system begins recording and
this button becomes highlighted. You can go to system folder RecordDownload to
view the recorded file.

4: Snapshot picture. You can snapshot important video. All images are memorized in
system client folder PictureDownload (default).

5: Audio :Turn on or off audio.(It has no relationship with system audio setup )

6: Close video.
5.6.1 Fisheye de-warp

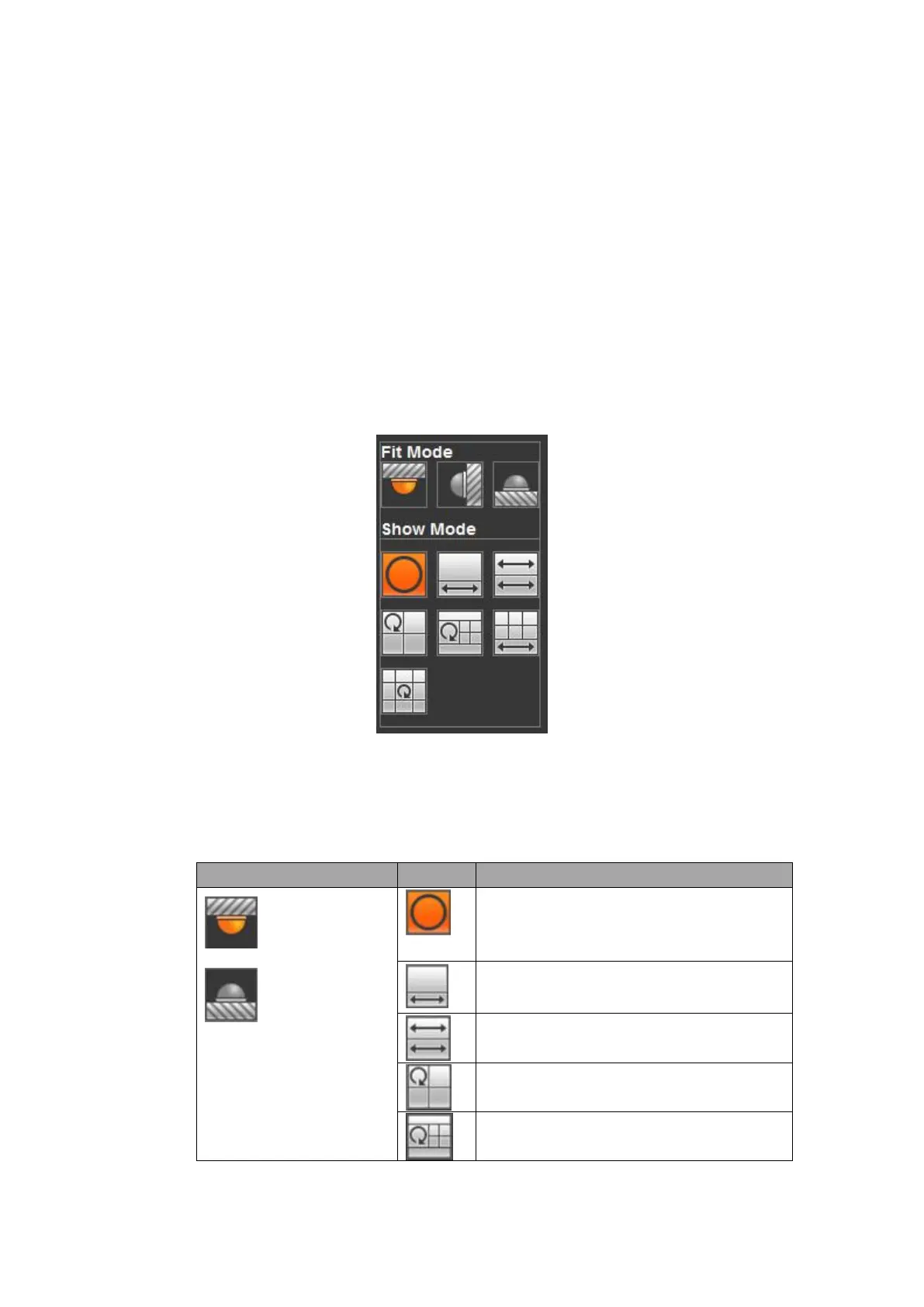

Fisheye de-warp interface is shown as in Figure 5- 16.
Figure 5- 16
There are three installation modes: ceiling mount/wall mount/ground mount. The
different installations modes have different de-warp modes.
Please refer to the following sheet for detailed information.
Installation modes
Icon
Note
（Ceiling mount）
（Ground mount）
360°panorama original view
1 de-warp window+1 panorama
stretching
2 panorama stretching view
1 360° panorama view+3 de-warp
windows
1 360°panorama view+4 de-warp
windows

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
