Dahua XVR5104HS User Manual

500

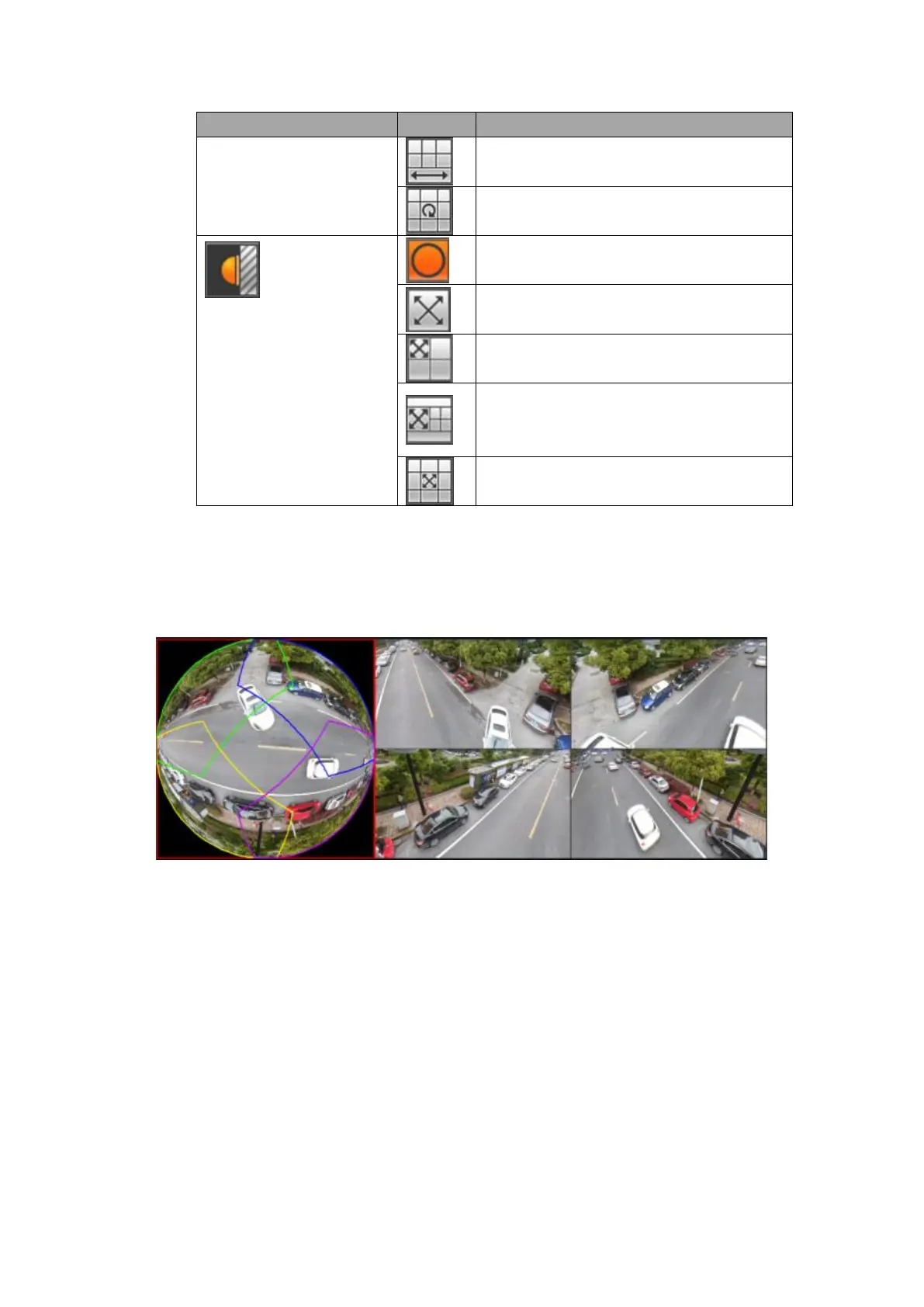

Installation modes
Icon
Note
6 de-warp windows+1 panorama
stretching
1 360° panorama view+8 de-warp
windows
（Wall mount）
360°panorama original view
Panorama stretching
1 panorama unfolding view+3 de-warp
windows
1 panorama unfolding view +4 de warp
windows
1 panorama unfolding view +8 de warp
windows
In Figure 5- 17, there are one ceiling mount 360 ° panorama view + four de-warp
windows.
You can adjust the color pane on the left pane or use your mouse to change the
position of the small images on the right pane to realize fish eye de-warp. Please use
mouse to zoom in/out, move, rotate and etc to adjust.
Figure 5- 17
5.7 PTZ
Before PTZ operation, please make sure you have properly set PTZ protocol. (Please
refer to chapter 5.10.5.5).
There are eight direction keys. In the middle of the eight direction keys, there is a 3D
intelligent positioning key.
Click 3D intelligent positioning key, system goes back to the single screen mode. Drag the
mouse in the screen to adjust section size. It can realize PTZ automatically.
Please refer to the following sheet for PTZ setup information.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
