Dahua XVR5104HS User Manual

606
Check the file(s) you want to download and there are two options for you to save the
file(s).

Download to local

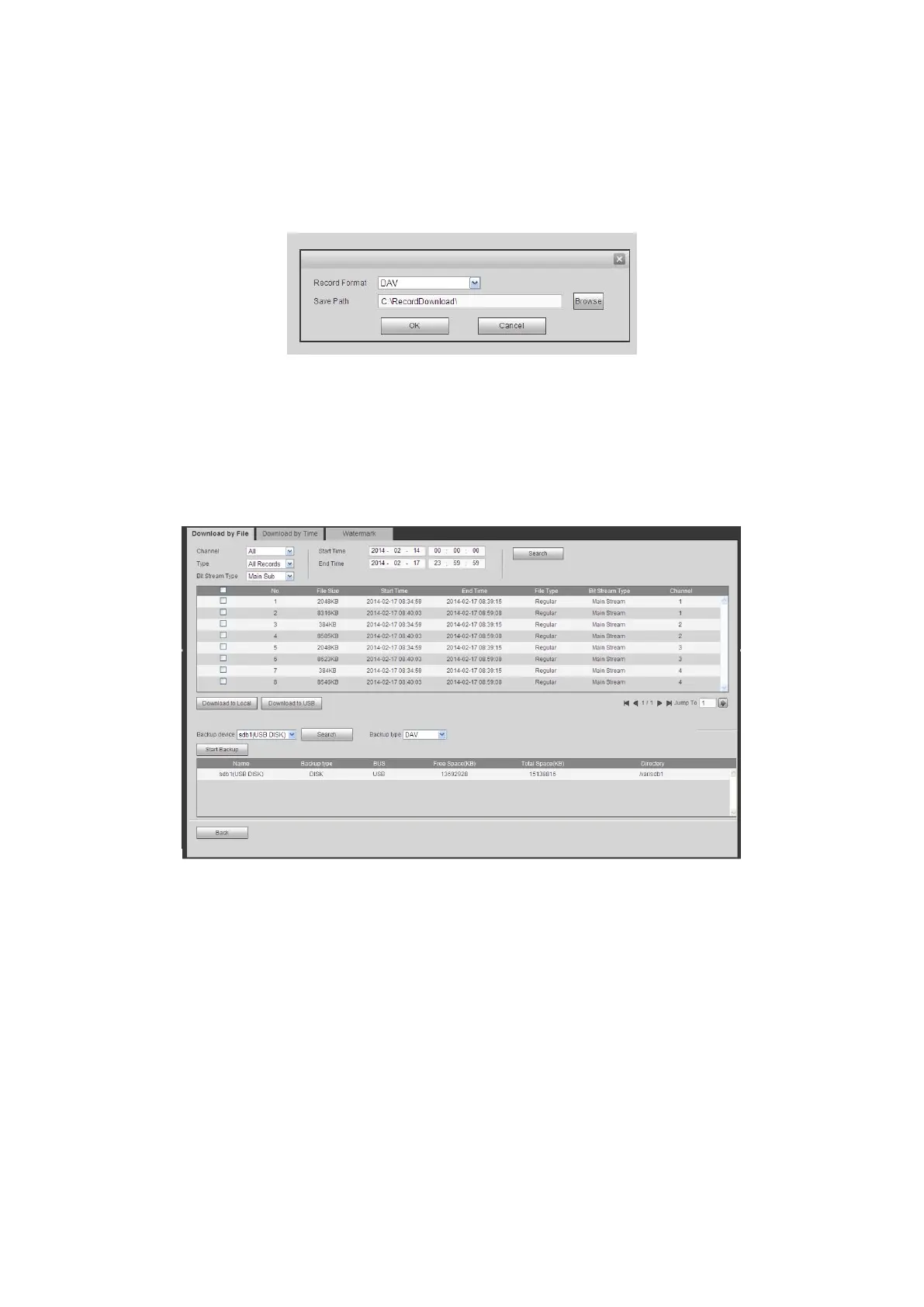

Click Download to local, system pops up the following interface for you to set record
format and saved path. See Figure 5- 160.
Figure 5- 160
You can click OK to download and view the download process. After the download
operation, you can see corresponding dialog box.

Download to USB
Connect the corresponding p peripheral device, and then click Download to USB button,
you can see the following interface. See Figure 5- 161.
Figure 5- 161
Select Backup device and backup type first and then click Start backup button.
After the download operation, you can see corresponding dialogue box.
5.12.6.2 Download by Time
Select channel, bit stream type, start time and end time.
Click Download to Local button, you can see download by time interface is shown as in
Figure 5- 162.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
