Figure 2- 24

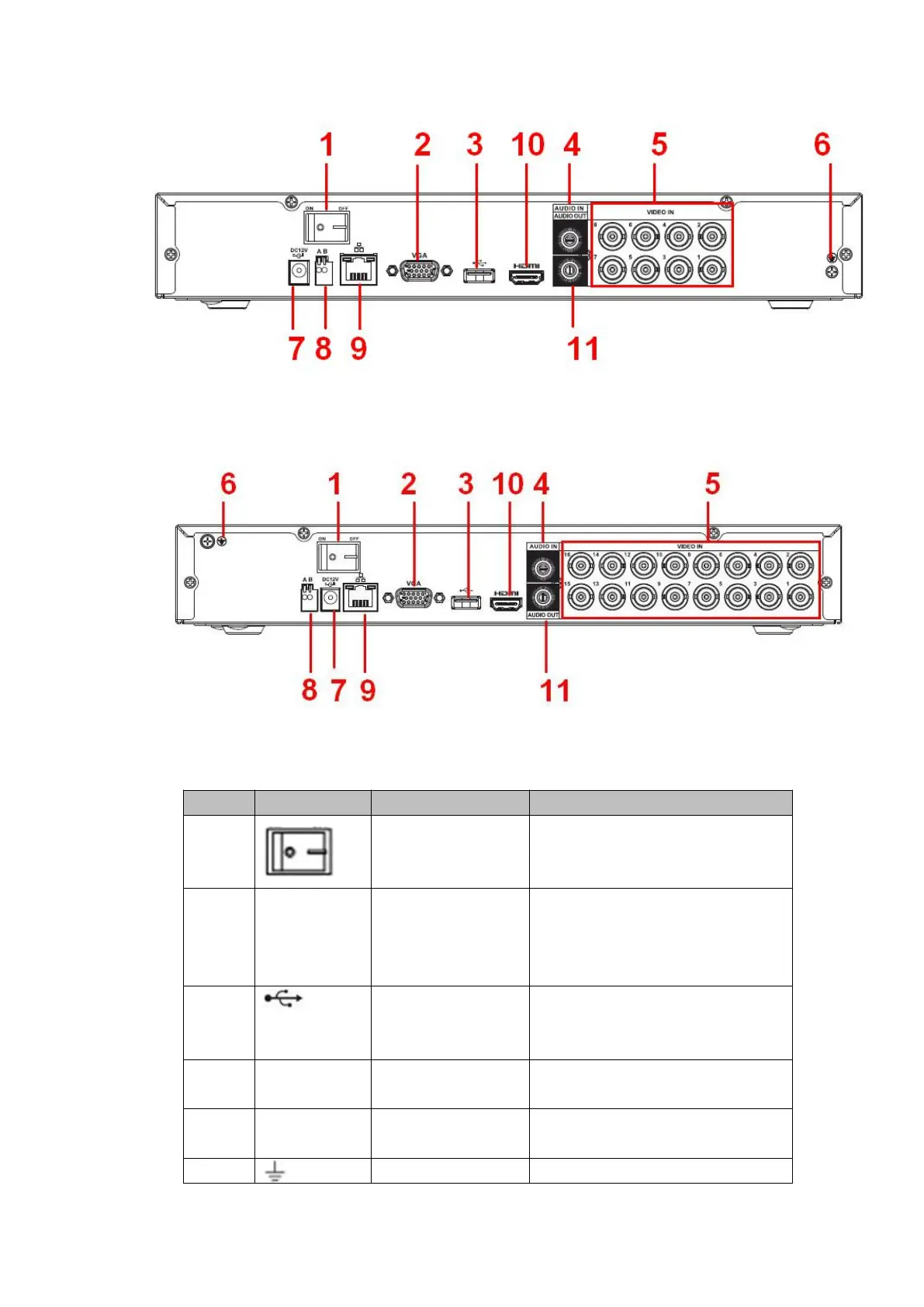

The HCVR5116H-V2 series rear panel is shown as below. See Figure 2- 25.
Figure 2- 25
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off button
Power on/off button.
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
3
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
4
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
5
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
6
GND
Ground end

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
