Dahua XVR5104HS User Manual

239

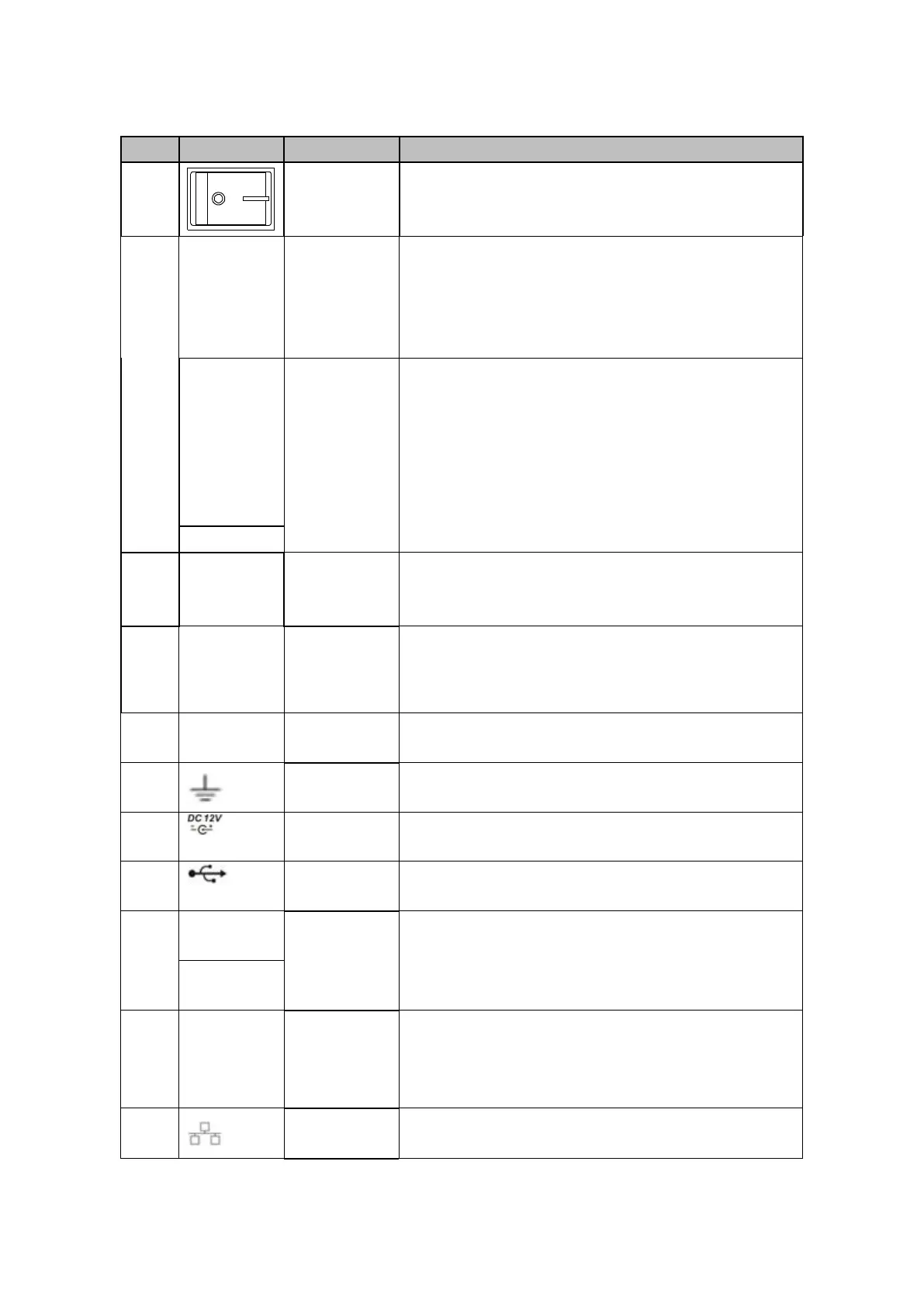

Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power switch
Power on/off button.
2
1～8(16)
Alarm input
port 1～8(16)
 There are two types; NO (normal open)/NC
(normal close).
 When your alarm input device is using external
power, please make sure the device and the DVR
have the same ground.
NO1～NO3
Alarm output
port 1～3

3 groups of alarm output ports. (Group 1:port
NO1 ～ C1,Group 2:port NO2 ～ C2,Group 3:port
NO3 ～ C3 ） ).Output alarm signal to the alarm
device. Please make sure there is power to the
external alarm device.

NO:Normal open alarm output port.

C:Alarm output public end.
C1～C3
3
VGA
VGA video
output
port
VGA video output port. Output analog video signal.
Can connect to the monitor to view ananlog video
output.
4
AUDIO IN
Audio input
port
Connect to audio input device such as speaker.
5
VIDEO IN
Video input
port
Connect to analog camera, video input signal.
6
GND
Alarm input ground port.
7
Power input
port
Input 12V DC.
8
USB2.0 port
Connect to USB storage device, mouse, burning
DVD-ROM and etc.
9
A
RS485
（ RS-485 ）
communicati
on port
RS485_A port. It is the cable A. You can connect to
the control devices such as speed dome PTZ.
B
RS485_B.It is the cable B. You can connect to the
control devices such as speed dome PTZ.
10
HDMI
High
Definition
Media
Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device.
11
Network port
100M Ethernet port

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
