Dahua XVR5104HS User Manual

379

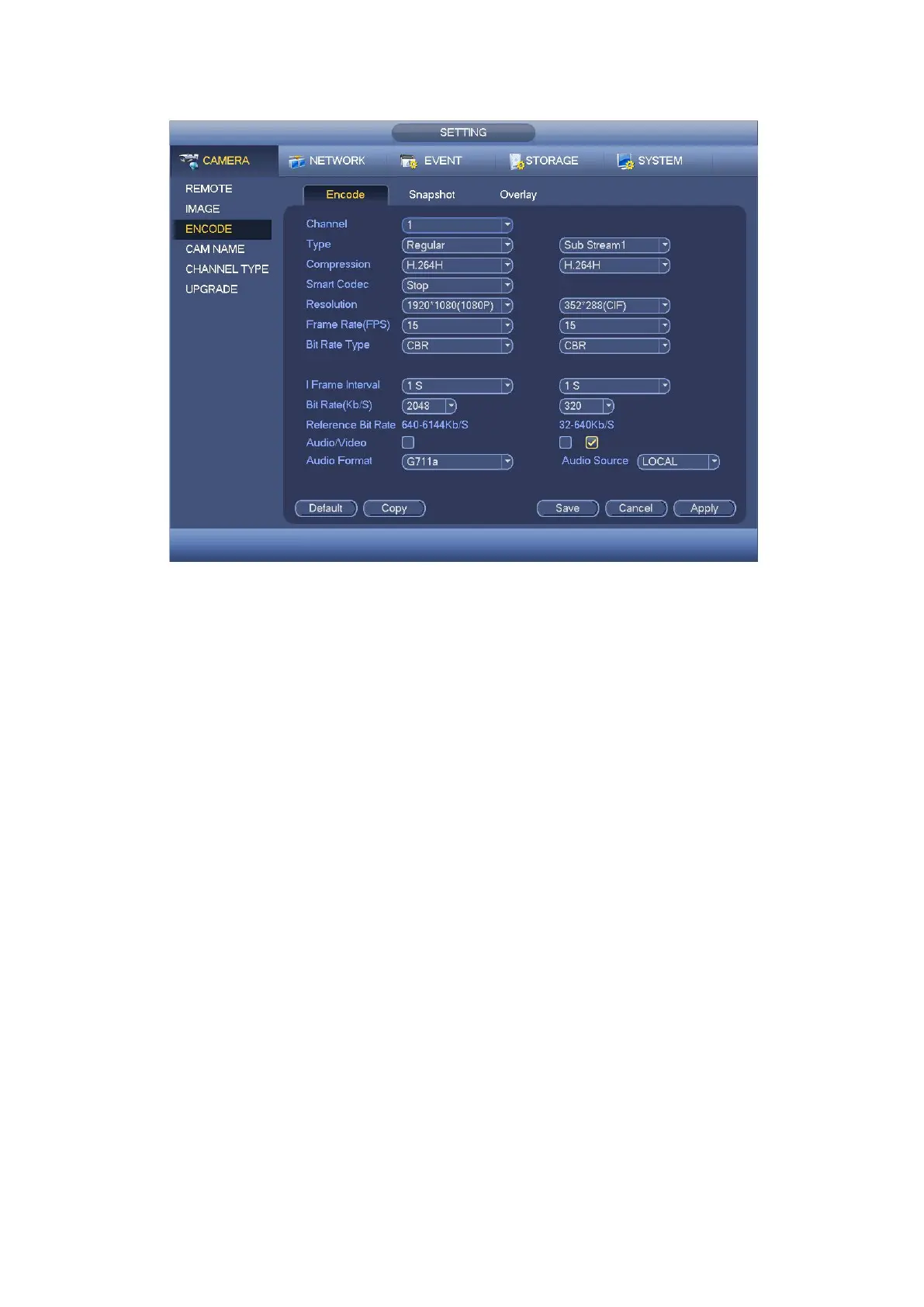

Figure 4- 105
4.9.1.3.2Snapshot
Here you can set snapshot mode, picture size, quality and frequency. See Figure 4- 106.

Snapshot mode: There are two modes: regular and trigger. If you set timing mode,
you need to set snapshot frequency. If you set trigger snapshot, you need to set
snapshot activation operation.

Image size: Here you can set snapshot picture size.

Image quality: Here you can set snapshot quality. The value ranges from 1 to 6.

Interval: It is for you to set timing (schedule) snapshot interval.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
