Dahua XVR5104HS User Manual

439

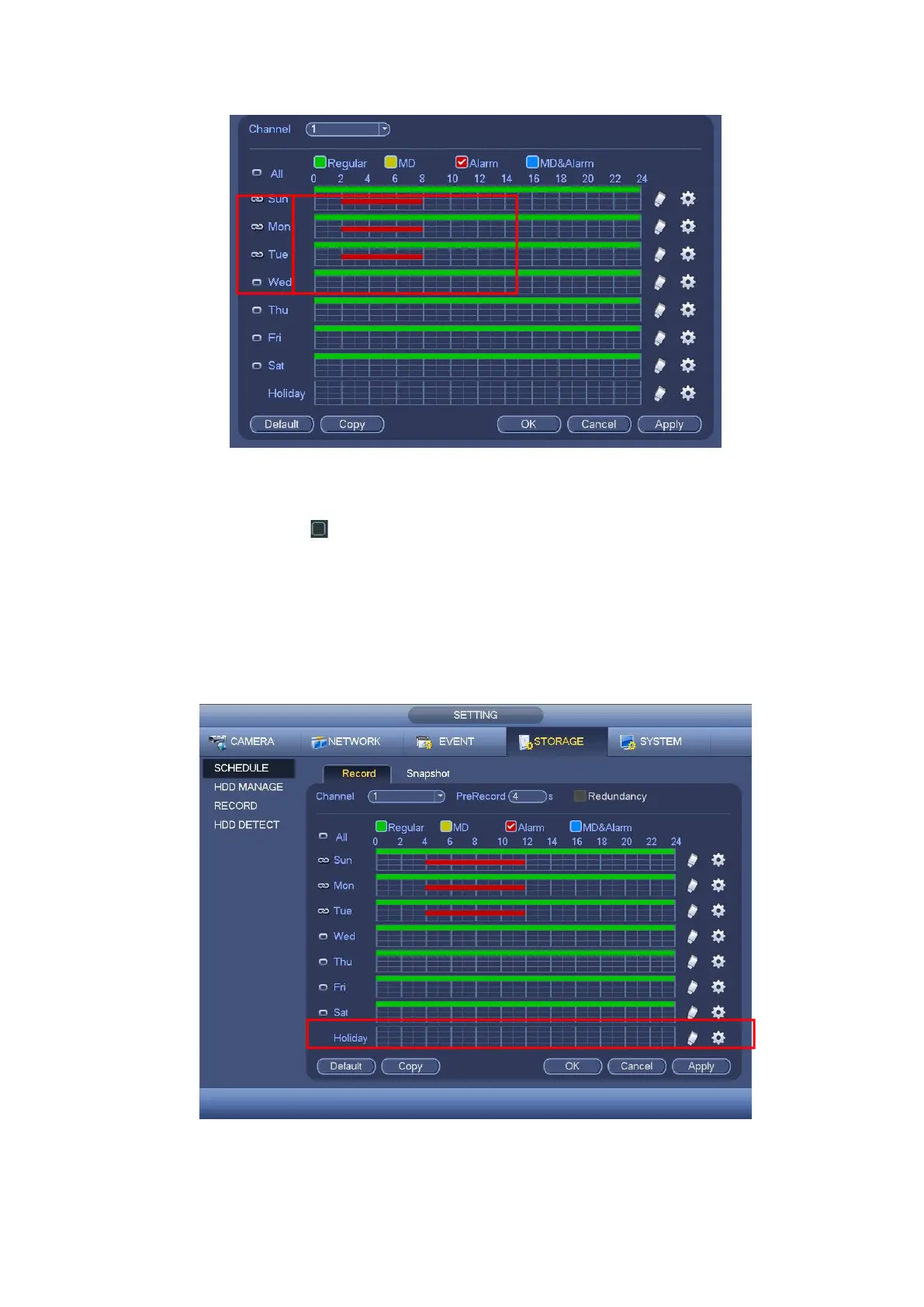

Figure 4- 172
Please highlight icon to select the corresponding function. Click Apply or Save to
complete setup.
There are color bars for your reference. Green color stands for regular recording,
yellow color stands for motion detection and red color stands for alarm recording. The
white means the MD and alarm record is valid. Once you have set to record when the
MD and alarm occurs, system will not record neither motion detect occurs nor the
alarm occurs.
Figure 4- 173

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
