Dahua XVR5104HS User Manual

448

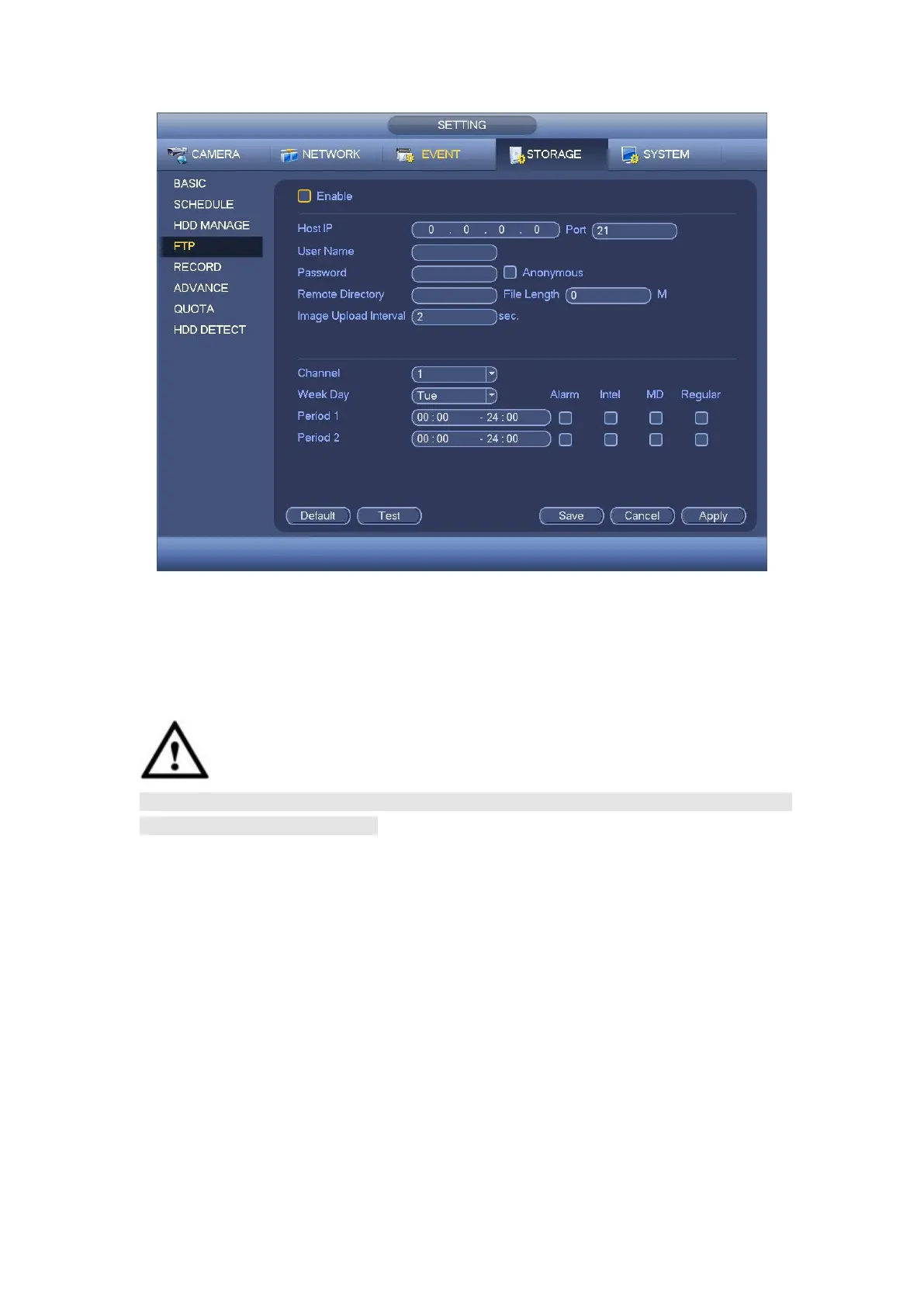

Figure 4- 184
4.9.4.4 Advanced
It is to set HDD group, and HDD group setup for main stream, sub stream and snapshot
operation
4.9.4.4.1HDD
CAUTION
HDD group and quota mode cannot be valid at the same time. System needs to restart
once you change the mode here.
Step 1 From main menu->Setting->Storage->Advanced->HDD.
Enter HDD interface. See Figure 4- 185.
Step 2 Set parameters.

HDD: Here you can view the HDD amount the device can support.

Group: It lists the HDD Group number of current hard disk.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
