Dahua XVR5104HS User Manual

451

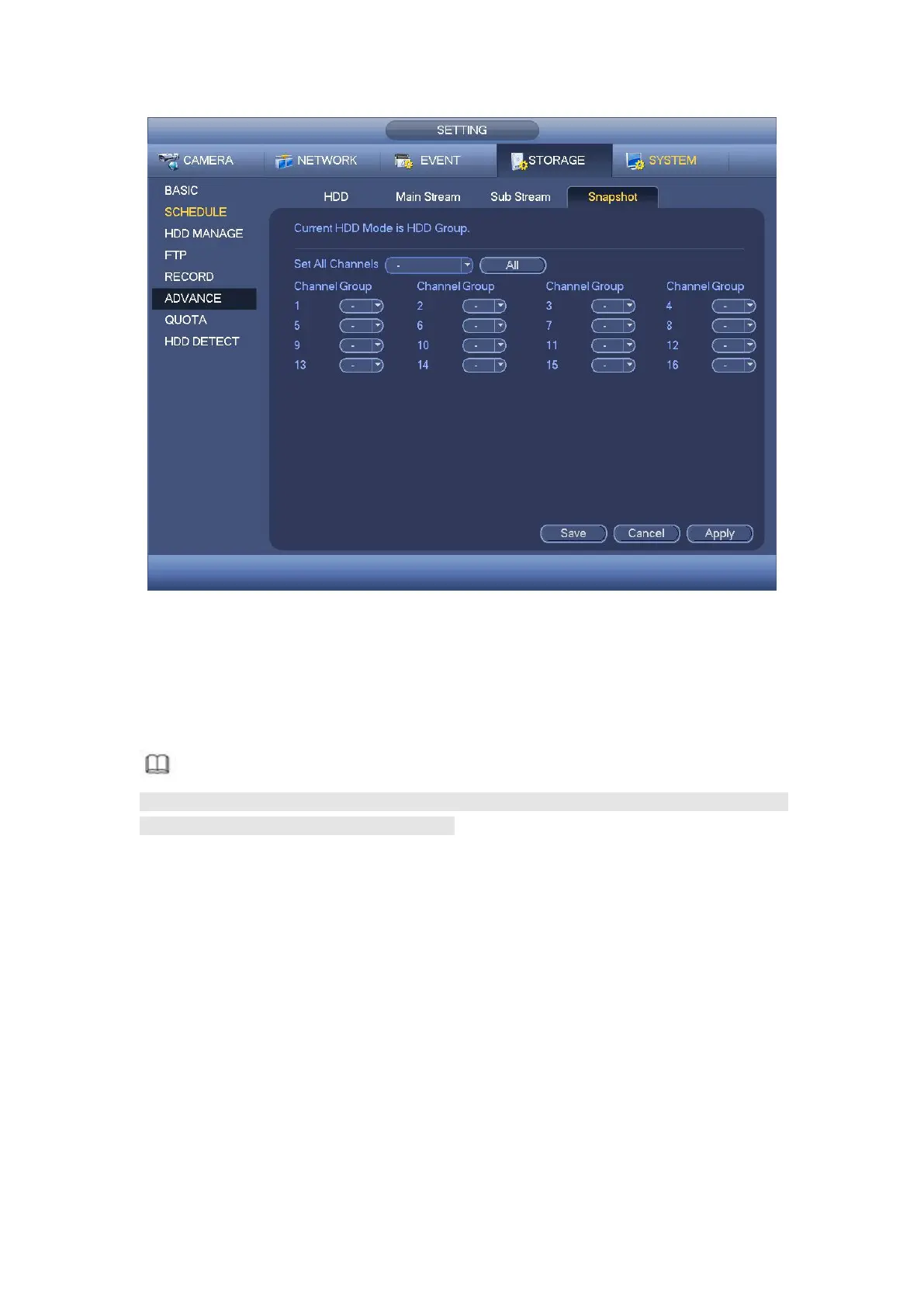

Figure 4- 188
Step 5 Click Apply or Save to complete setup.
4.9.4.5 Record
4.9.4.5.1Record Control
Note
You need to have proper rights to implement the following operations. Please make
sure the HDD has been properly installed.
There are three ways for you to go to manual record menu.

Right click mouse and then select Manual->Record.

In the main menu, from Setting->Storage->Record.

In live viewing mode, click record button in the front panel or record button in the
remote control.
System supports main stream and sub stream. There are three statuses:
schedule/manual/stop. See Figure 4- 189. Please highlight icon “ ○ ” to select
corresponding channel.

Manual: The highest priority. After manual setup, all selected channels will begin
ordinary recording.

Schedule: Channel records as you have set in recording setup (Main
Menu->Setting->System->>Schedule)

Stop: Current channel stops recording.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
