Dahua XVR5104HS User Manual

458

Navigation bar: Check the box here, system displays the navigation bar on the
interface.

Mouse property: You can set double click speed via dragging the slide bard. You can
Click Default button to restore default setup.
Click Apply or Save to complete setup.

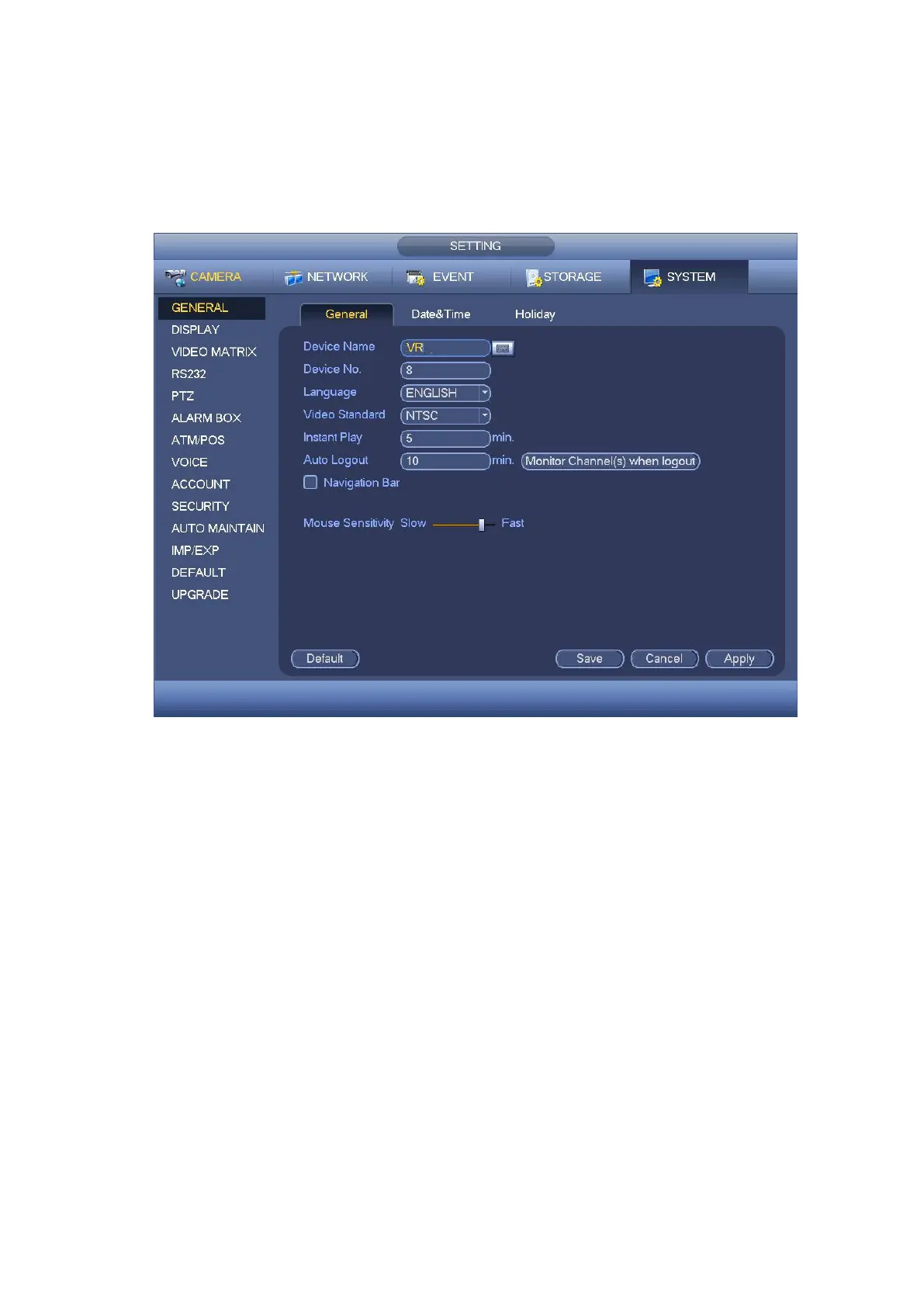

Figure 4- 197
4.9.5.1.2Date and Time
The interface is shown as in Figure 4- 198.

Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or
DD-MM-YYYY.

Date separator: There are three denotations to separate date: dot, beeline and
solidus.

DST: Here you can set DST time and date. Here you can set start time and end time
by setting corresponding week setup or by setting corresponding date setup.

NTP: It is to set NTP server information.
Click Apply or Save to complete setup.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
