Dahua XVR5104HS User Manual

462
4.9.5.2.2TV Adjust
Note
This function is for some series only.
Here is for you to adjust TV output setup. See Figure 4- 202.
Please drag slide bar to adjust each item.
Click Apply or Save to complete setup.

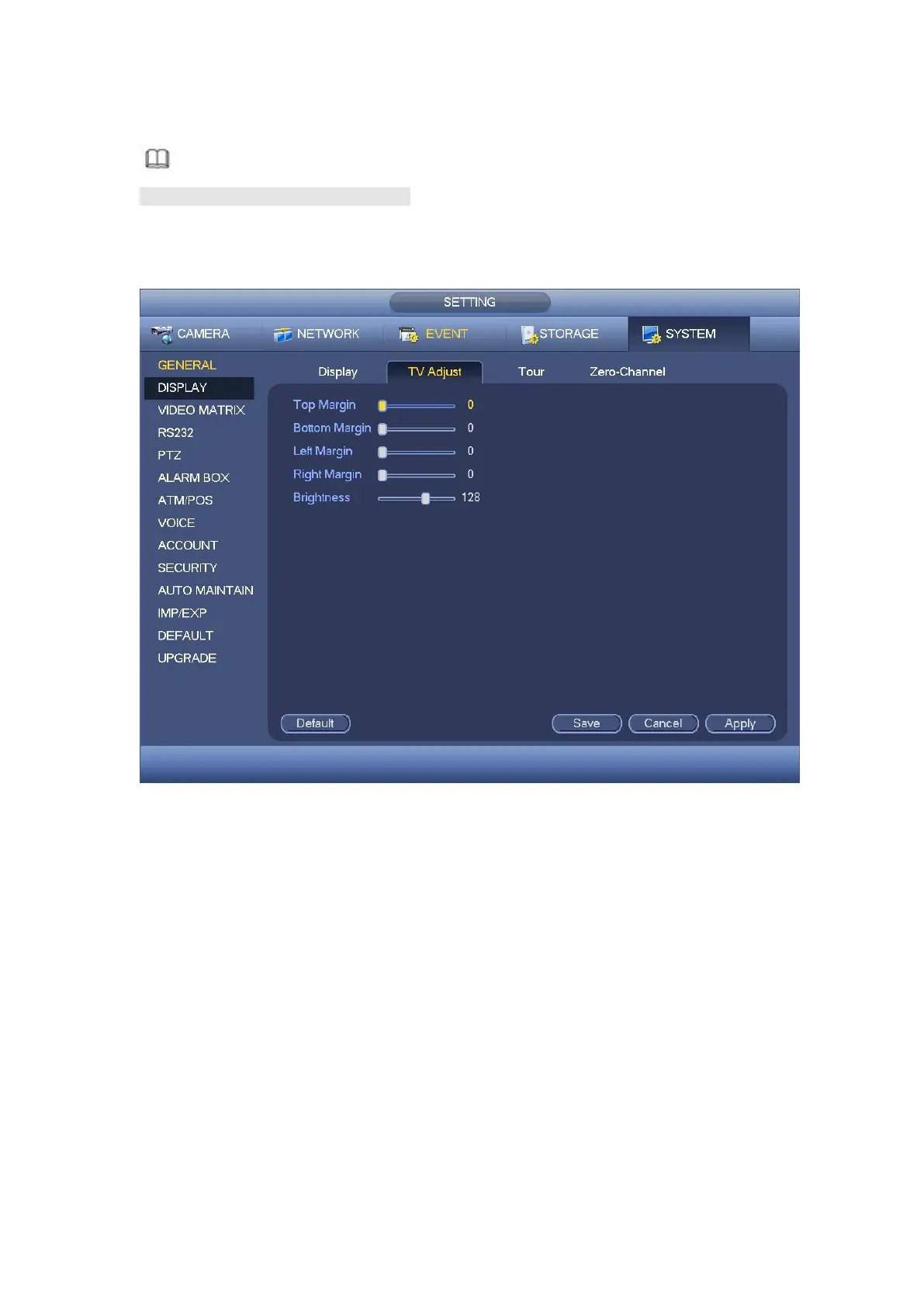

Figure 4- 202
4.9.5.2.3Tour
Here you can activate tour function. Click Setup button, you can see an interface shown
as in Figure 4- 203

Enable tour: Highlight box here to enable this function.

Interval: System supports 1/8/-window tour. Input proper interval value here. The
value ranges from 5-120 seconds. It is for schedule tour/alarm/motion detect tour.

Split: You can select window split mode from the dropdown list.

Channel group: It is to display all channel groups on current split mode. You can edit
and delete a channel group here. Double click an item in the list; you can edit its
channel group setup. Right now system max supports 32.

Add: Under specified window split mode, click it to add channel group.

Delete: Click it to remove selected channel group.

Move up: Click it to move current selected channel up.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
