Dahua XVR5104HS User Manual

467

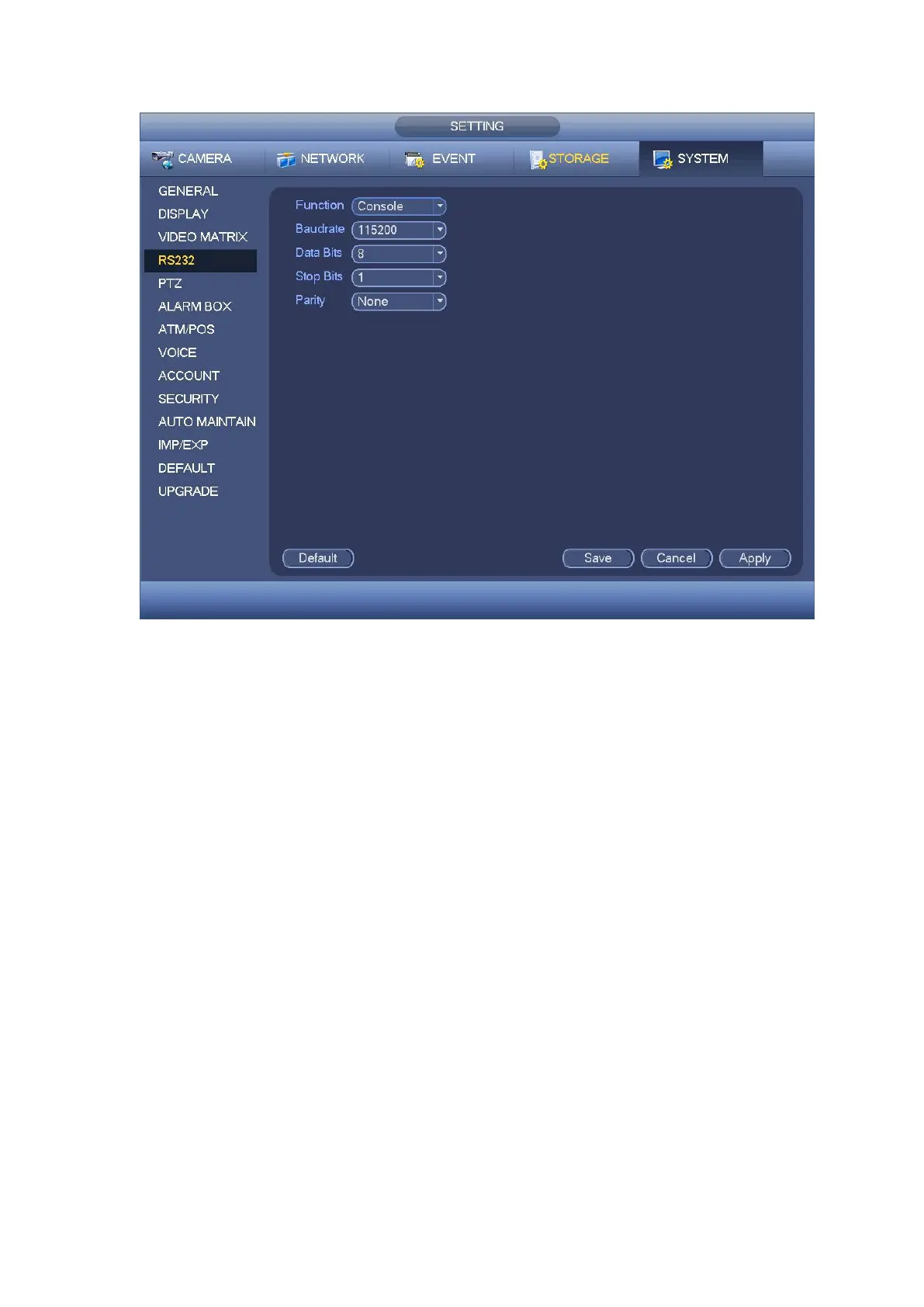

Figure 4- 208
4.9.5.5 PTZ
The pan/tilt/zoom setup includes the following items. Please select channel first. See
Figure 4- 209.

PTZ type: There are two options: local/remote. Please select remote if you are
connecting to the network PTZ.

Control mode: You can select control mode from the dropdown list. There are two
options: Serial/HDCVI. For HDCVI series product, please select HDCVI. The control
signal is sent to the PTZ via the coaxial cable. For the serial mode, the control signal
is sent to the PTZ via the RS485 port.

Protocol: If the control mode is HDCVI, please select HDCVI protocol. The default
setup is HDCVI3.0

Address: input corresponding PTZ address.

Baud rate: Select baud rate.

Data bit: Select data bit.

Stop bit: Select stop bit.

Parity: There are three choices: none/odd/even.
Click Apply or Save to complete setup.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
