Dahua XVR5104HS User Manual

550

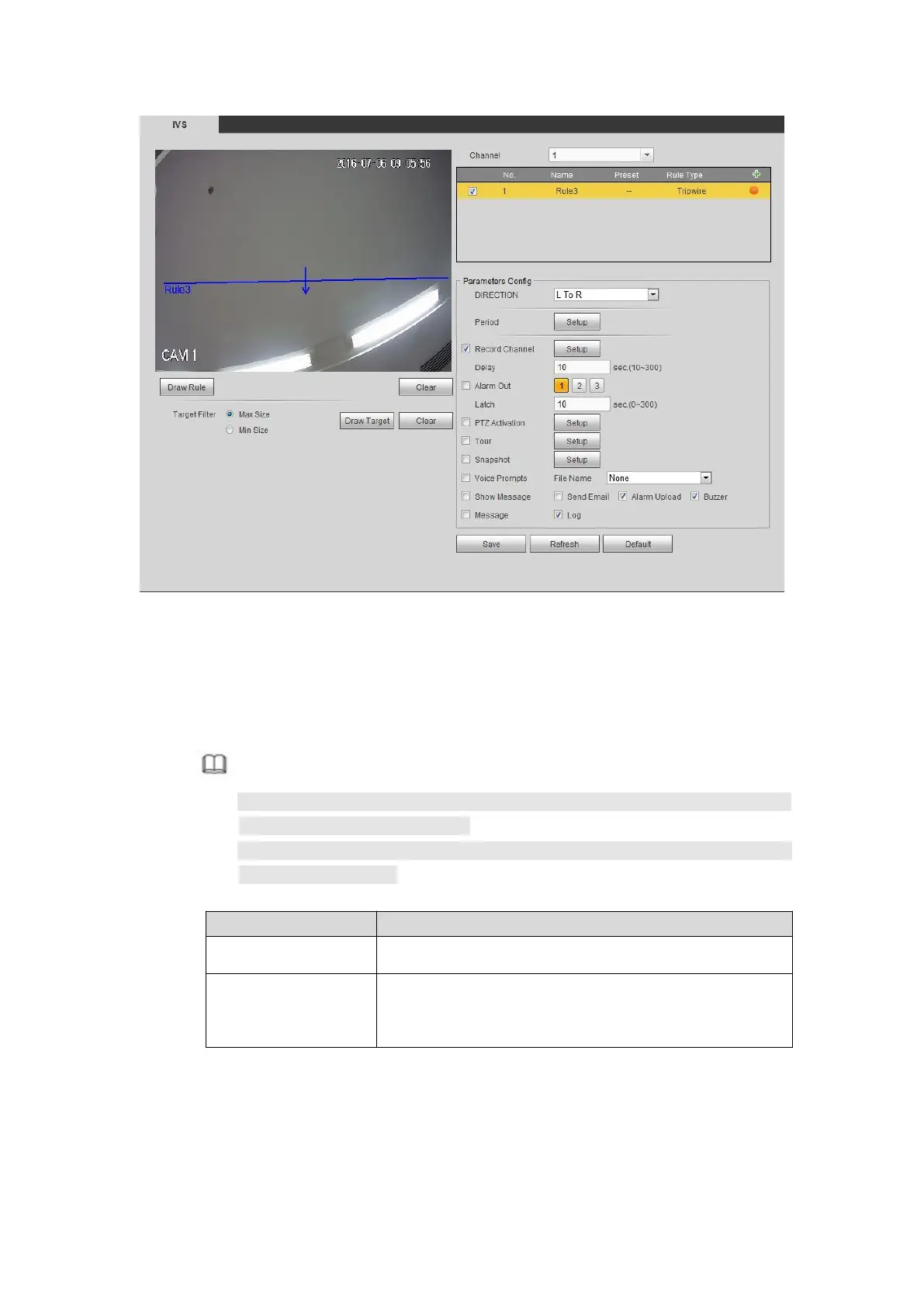

Figure 5- 79
Step 4 Set filter object. Once the object is smaller than the min size or larger than the
max size, there is no alarm.
1. After draw the rule, set max size and min size.
2. Click Draw target to draw the rectangle zone.
Note

Each rule can set two sizes (min size/max size). Please make sure the max
size is larger than the min size.

The default max size is the full screen, you can select the blue line and then
use mouse to adjust.
Step 5 Set parameters.
Parameter
Function
Direction
Tripwire direction includes: A→B, B→A, A↔B.
Period
Set tripwire valid period. System generates an alarm
during the specified period. For detailed setups, please
refer to chapter 5.10.3.1.1 motion detect
Step 6 Click Save to complete setup.
5.10.3.2.2 Intrusion (Cross warning zone)
This function is to detect there is any object enter or exit the zone. Please use according
to your actual situation.
