Dahua XVR5104HS User Manual

587
5.10.5.8 Voice
The audio function is to manage audio files and set schedule play function. It is to realize
audio broadcast activation function.
5.10.5.8.1 File List

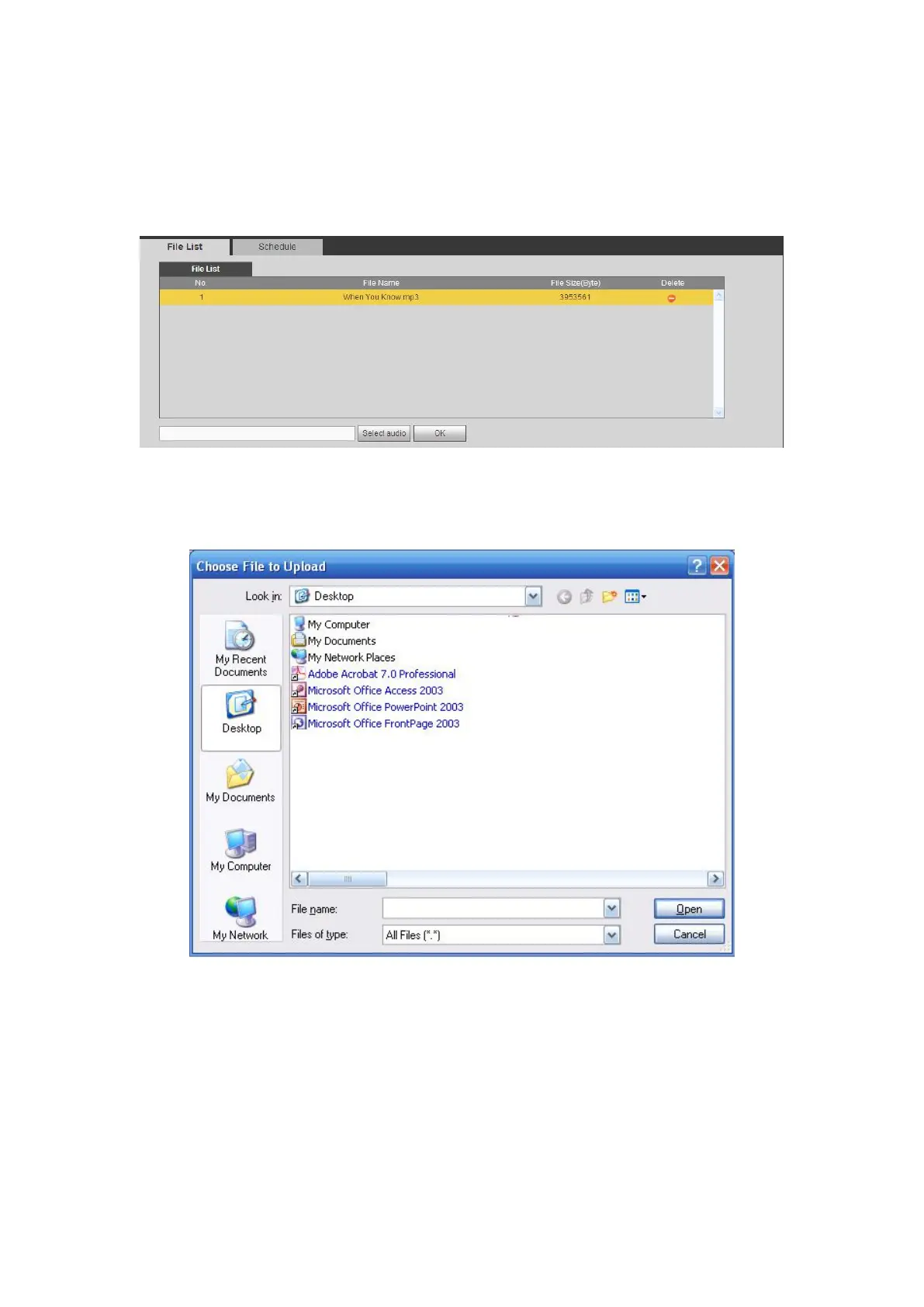

Here you can add audio file, or delete audio file. See Figure 5- 130.
Figure 5- 130
Click Add button, you can add audio file and import the audio file via the local computer.
See Figure 5- 131.
Figure 5- 131
5.10.5.8.2 Schedule
It is to set schedule broadcast function. You can play the different audio files in the
specified periods.
From main menu->Setup->System->Voice->.Schedule, you can see the following
interface. See Figure 5- 132.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
