Dahua XVR5104HS User Manual

590

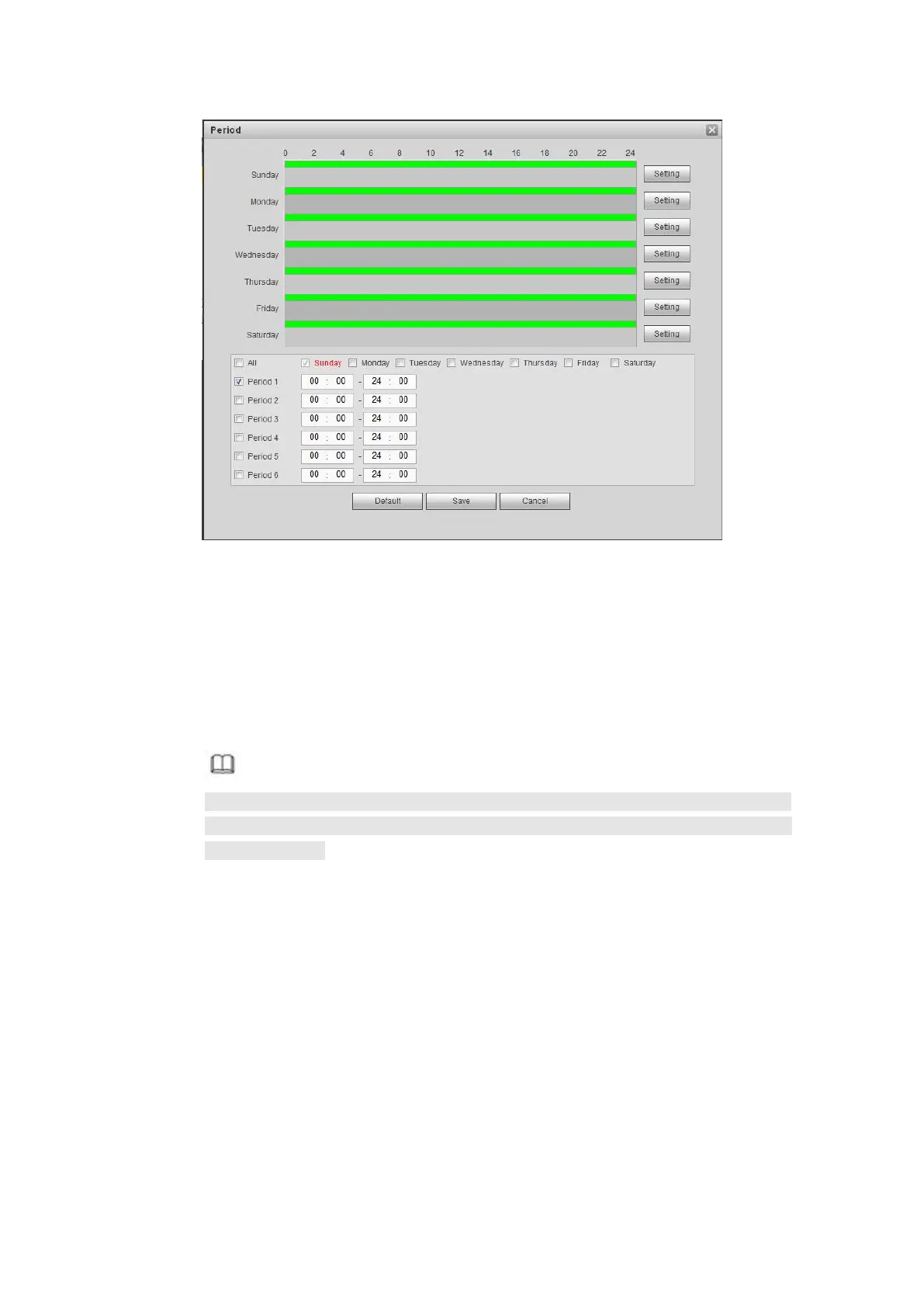

Figure 5- 135

Click Setting to set the periods. Or you can draw on the interface directly.
There are six periods in one day. Or you can input start time and end time
directly.

Check the box before the date, the settings are for the selected date(s).

Check the box before the period1-6, it is to enable the period function.
Step 4 Click Save to complete the setup.
Note
Please note the user rights shall not exceed the group right setup. For
convenient setup, please make sure the general user has the lower rights setup
than the admin.
Modify user
It is to modify the user property, belonging group, password and rights. See Figure 5- 136.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
