For L (live cable)

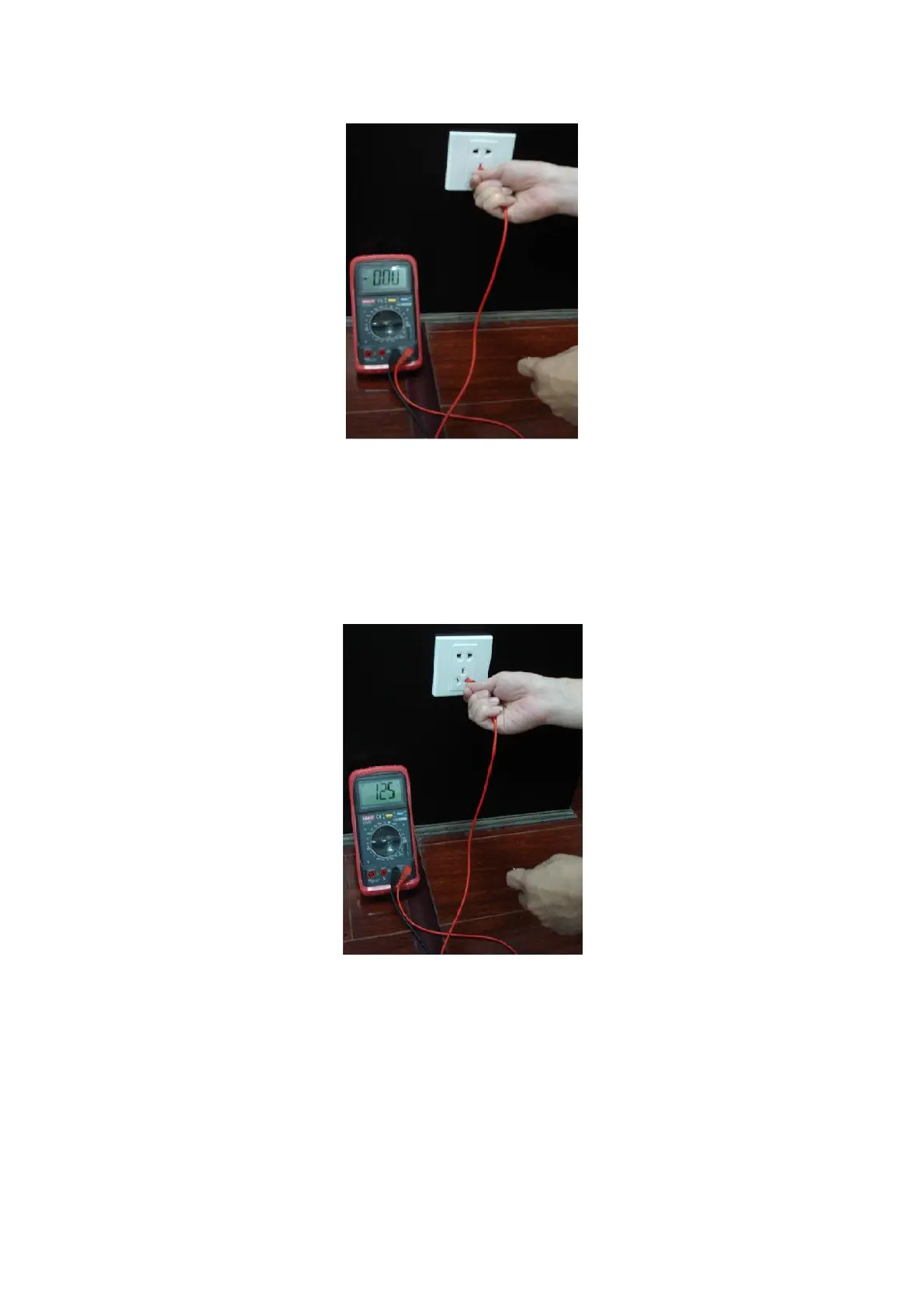

Turn the digital multimeter to 750V AC, use your one hand to hold the metal end, and then
the other hand insert the pen to the L port of the socket. See the following figure. If the
multimeter shows 120, then you can see current live cable connection is standard. If the
value is less than 60, then you can see current live cable connection is not proper or it is
not the live cable at all.
For N (Neutral cable)
Turn the digital multimeter to 750V AC, use your one hand to hold the metal end, and then
the other hand insert the pen to the N port of the socket. See the following figure. If the
multimeter shows 0, then you can see current N cable connection is standard. If the
value is more than 10, then you can see there is inductive current and the neutral cable
connection is not proper. If the value is 120, then you can know misconnected the
neutral cable to the live cable.

Dahua XVR5104HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Audio Input/Output	1/1, RCA
Video Output	1 HDMI, 1 VGA
Network Interface	1 RJ-45 Port (100M)
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Bit Rate	32Kbps ~ 6144Kbps per channel
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
IP Video Input	4+2 channel, each channel up to 6MP
Analog Video Input	4 channel, BNC
USB Interface	2x USB 2.0
HDD	1 SATA port, up to 6TB
Dimensions	260mm x 236mm x 48mm
HDCVI Camera Input	4 channels
AHD Camera Input	4 channels
TVI Camera Input	4 channels
Operating Humidity	10% ~ 90%
Resolution	1080N, 720p, 960H, D1, CIF
Record Rate	Up to 25/30fps
