Danfoss VLT AutomationDrive FC 300 - Page 124

225.0
(8.85)
2281
(89.8)
1499
(59.0)
Ø29
(1.1)
1804
(71.0)
2206
(86.9)
606
(23.8)
130BB028.10
1

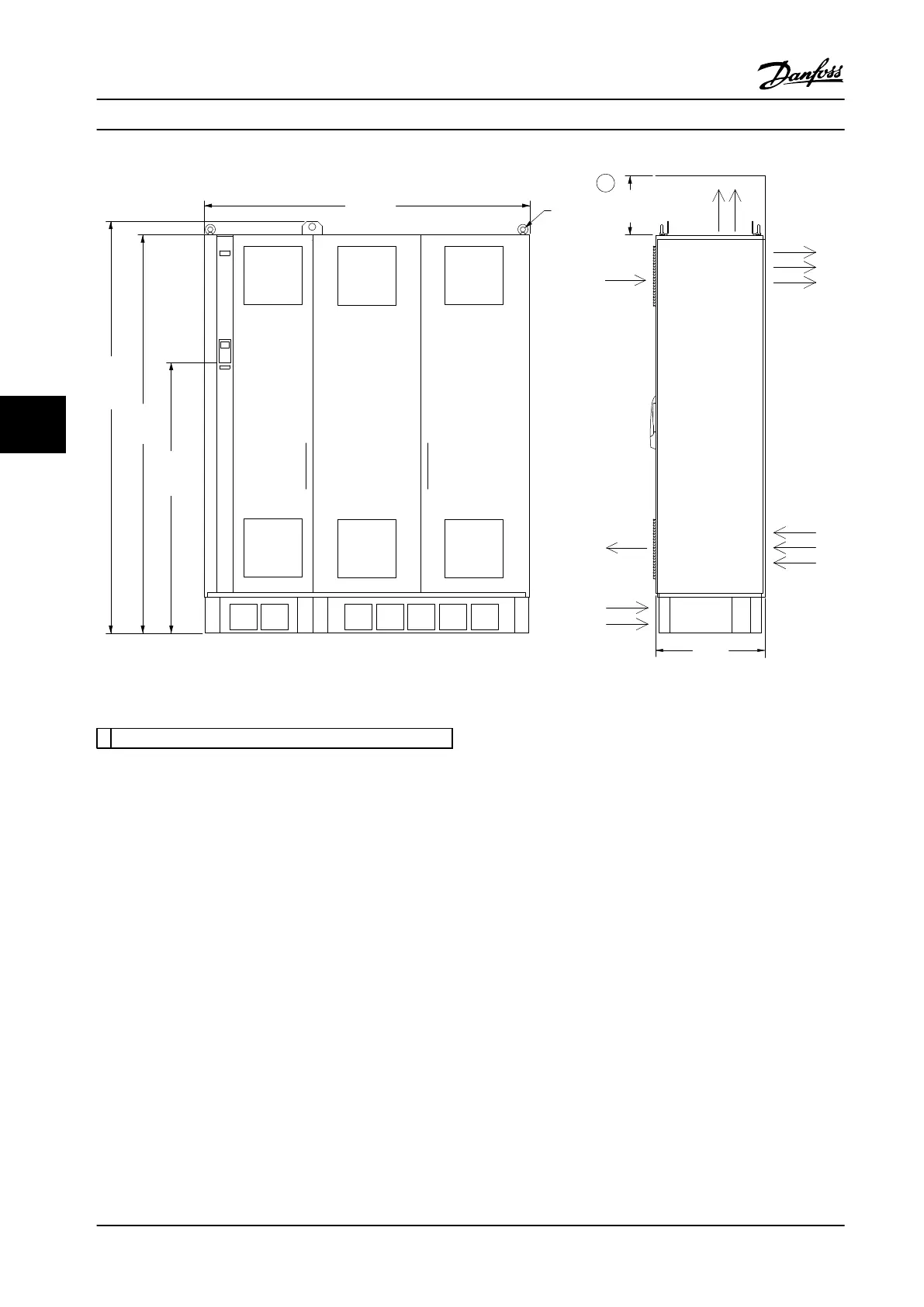

Figure 6.25 Mechanical Dimensions, F2
1
Minimum clearance from ceiling
Table 6.17 Legend to Figure 6.25
Mechanical Installation Design Guide
