Case 1. This case shows how reference input with limits inside Min to Max limits clamps.

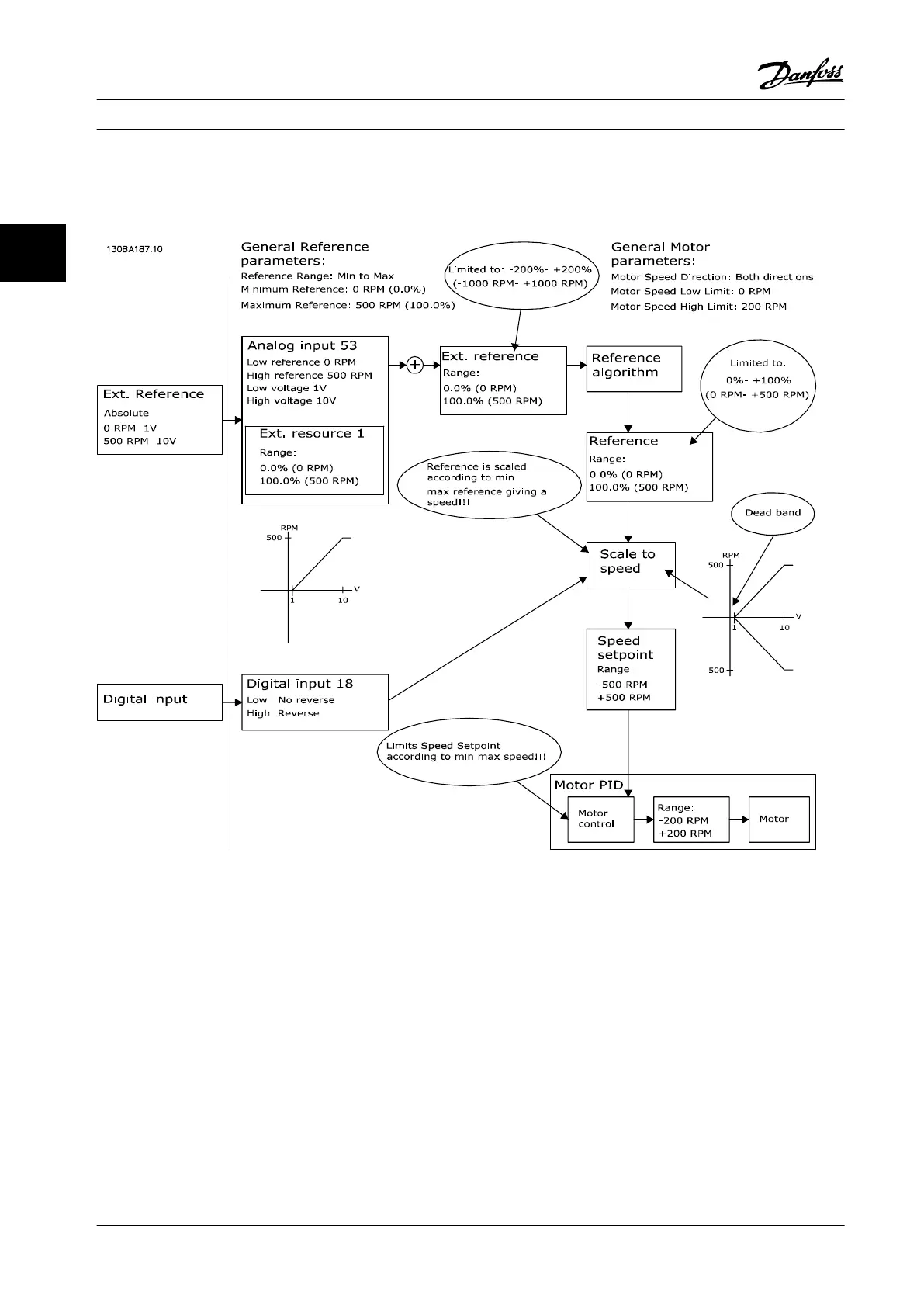

Figure 3.18 Positive Reference with Dead Band, Digital Input to Trigger Reverse
Product Introduction Design Guide
