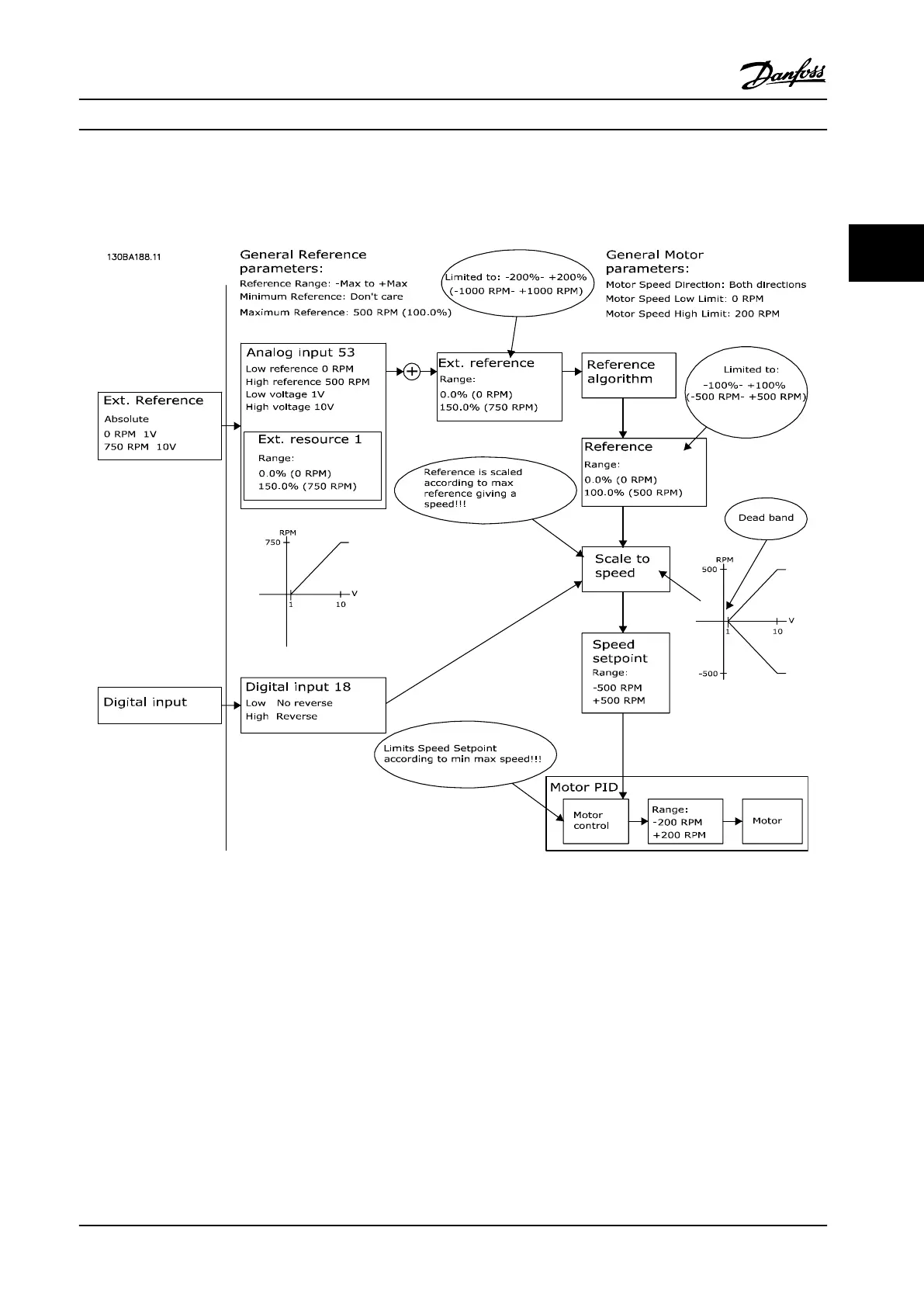

Case 2. This case shows how reference input with limits outside -Max to +Max limits clamps to the inputs low and high
limits before addition to external reference, as well as how the external reference is clamped to -Max to +Max by the
reference algorithm.
Figure 3.19 Positive Reference with Dead Band, Digital Input to Trigger Reverse. Clamping Rules
Product Introduction Design Guide
MG34S222 Danfoss A/S © Rev. 2014-02-10 All rights reserved. 35
3 3
