To Next Page

To Previous Page

Enter/Exit Programming Mode 1D Symbologies

104

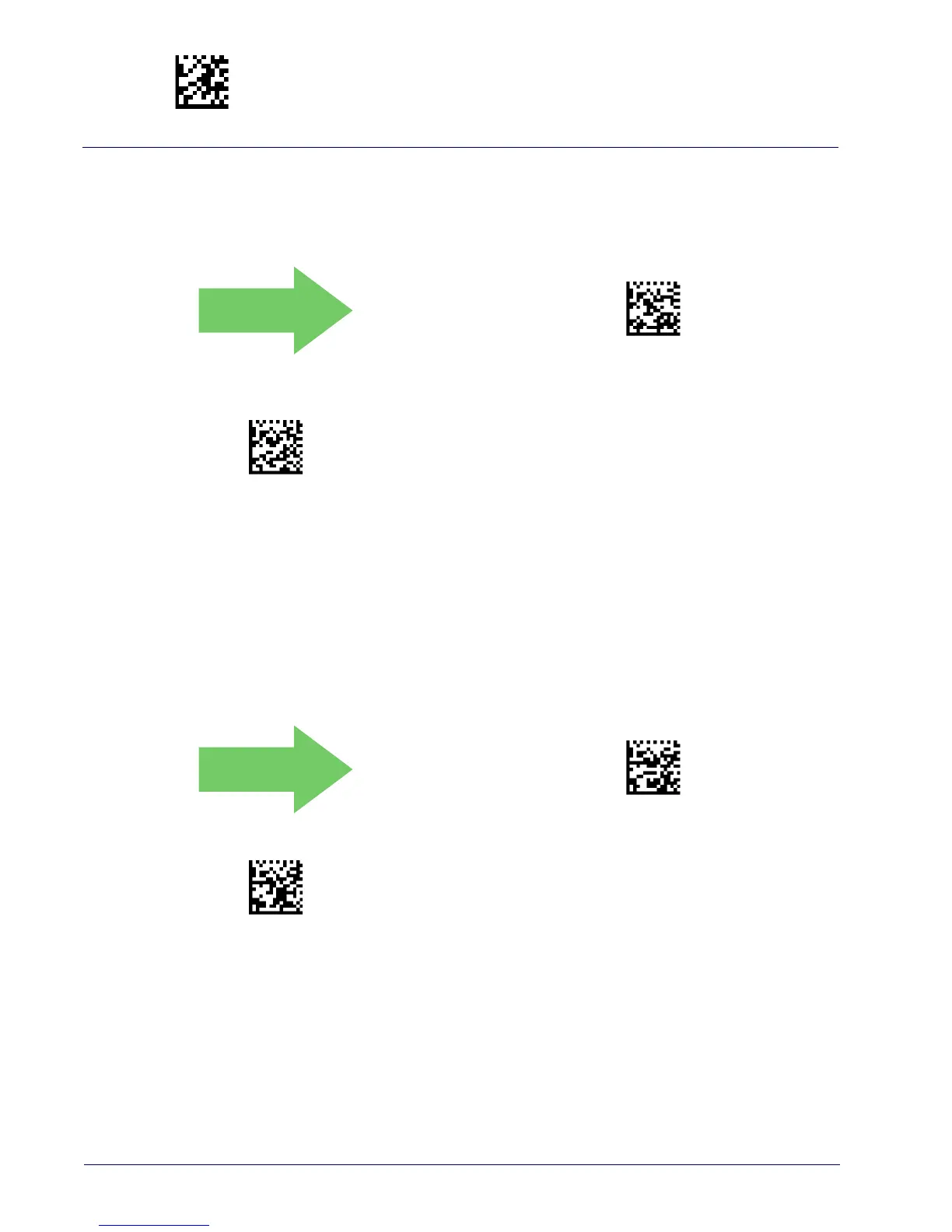

Gryphon™ GPS4400

Code 39 Start/Stop Character Transmission

Enable this option to enable/disable transmission of Code 39 start and stop

characters

DEFAULT

$CC3SS00(CR)

Code 39 Start/Stop Character Transmission =

Don’t Transmit

$CC3SS01(CR)

Code 39 Start/Stop Character Transmission = Transmit

Code 39 Full ASCII

Enables/disables the translation of Code 39 characters to Code 39 full-

ASCII characters.

DEFAULT

$CC3FA00(CR)

Code 39 Full ASCII = Disable

$CC3FA01(CR)

Code 39 Full ASCII = Enable

Default Chapter3
- Table of Contents3
Introduction11
- About this Manual11
  - Overview11
  - Manual Conventions12
- References12
- Technical Support12
- About the Reader13
- Programming the Reader14
  - Configuration Methods14
Setup15
- Unpacking15
- Setting up the Reader15
- Attaching Reader to Host16
  - Attaching/Detaching the Stand17
- Interface Selection18
- Custom Configuration Settings20
Configuration Using Bar Codes23
- Configuration Parameters23
  - Global Interface Features25
    - Host Commands - Obey/Ignore25
- Rs-232 Only Interface27
- RS-232/USB-Com Interfaces32
- USB Keyboard Settings39
- USB-OEM Interface49
- Data Format53
- Global Prefix/Suffix54
- Global AIM ID55
  - Set AIM ID Individually for GS1-12857
- Label ID58
  - Label ID: Pre-Loaded Sets58
  - Individually Set Label ID59
- Reading Parameters71
  - Double Read Timeout72
  - Led and Beeper Indicators73
- 1D Symbologies89
- 1D Code Selection89
Upc-E94
- UPC-E Enable/Disable94
- UPC-E Check Character Transmission95
- UPC-E 2D Component95
- Expand UPC-E to EAN-1396
- Expand UPC-E to UPC-A96
- UPC-E Number System Character Transmission97
Gtin Formatting97
Ean 13 (Jan 13)98
- EAN 13 Enable/Disable98
- EAN 13 Check Character Transmission98
- EAN-13 Flag 1 Character99
- EAN-13 ISBN Conversion99
- EAN-13 2D Component100
Issn100
- ISSN Enable/Disable100
Ean 8 (Jan 8)101
- EAN 8 Enable/Disable101
- EAN 8 Check Character Transmission101
- Expand EAN 8 to EAN 13102
- EAN 8 2D Component102
Upc/Ean Global Settings103
- UPC/EAN Price Weight Check103
- UPC/EAN Quiet Zones104
Add-Ons105
- Optional Add-Ons105
- Optional Add-On Timer106
- Optional GS1-128 Add-On Timer109
Code 39112
- Code 39 Enable/Disable112
- Code 39 Check Character Calculation112
- Code 39 Check Character Transmission113
- Code 39 Start/Stop Character Transmission114
- Code 39 Full ASCII114
- Code 39 Quiet Zones115
- Code 39 Length Control115
- Code 39 Set Length 1116
- Code 39 Set Length 2117
Trioptic Code118
- Trioptic Code Enable/Disable118
Code 32 (Ital Pharmaceutical Code)118
- Code 32 Enable/Disable118
- Code 32 Feature Setting Exceptions119
- Code 32 Check Char Transmission119
- Code 32 Start/Stop Character Transmission119
Code 39 Cip (French Pharmaceutical)120
- Code 39 CIP Enable/Disable120
Code 39 Danish Ppt120
- Code 39 Danish PPT Enable/Disable120
Code 39 Laposte121
- Code 39 Laposte Enable/Disable121
Code 39 Pzn121
- Code 39 PZN Enable/Disable121
Code 128122
- Code 128 Enable/Disable122
- Expand Code 128 to Code 39122
- Code 128 Check Character Transmission123
- Code 128 Function Character Transmission123
- Code 128 Sub-Code Exchange Transmission124
- Code 128 Quiet Zones124
- Code 128 Length Control125
- Code 128 Set Length 1126
- Code 128 Set Length 2127
Gs1-128
- GS1-128 Enable128
- GS1-128 2D Component128
Code Isbt 128129
- ISBT 128 Concatenation129
- ISBT 128 Force Concatenation129
- ISBT 128 Concatenation Mode130
- ISBT 128 Dynamic Concatenation Timeout131
- ISBT 128 Advanced Concatenation Options131
Interleaved 2 of 5 (I 2 of 5)132
- I 2 of 5 Enable/Disable132
- I 2 of 5 Check Character Calculation133
- I 2 of 5 Check Character Transmission134
- I 2 of 5 Length Control134
- I 2 of 5 Set Length 1135
- I 2 of 5 Set Length 2136
Interleaved 2 of 5 Cip Hr137
- Interleaved 2 of 5 CIP HR Enable/Disable137
Follett 2 of 5137
- Follett 2 of 5 Enable/Disable137
Standard 2 of 5138
- Standard 2 of 5 Enable/Disable138
- Standard 2 of 5 Check Character Calculation138
- Standard 2 of 5 Check Character Transmission139
- Standard 2 of 5 Length Control139
- Standard 2 of 5 Set Length 1140
- Standard 2 of 5 Set Length 2141
Industrial 2 of 5142
- Industrial 2 of 5 Enable/Disable142
- Industrial 2 of 5 Check Character Calculation142
- Industrial 2 of 5 Check Character Transmission143
- Industrial 2 of 5 Length Control143
- Industrial 2 of 5 Set Length 1144
- Industrial 2 of 5 Set Length 2145
Code Iata146
- IATA Enable/Disable146
- IATA Check Character Transmission146
Codabar147
- Codabar Enable/Disable147
- Codabar Check Character Calculation147
- Codabar Check Character Transmission148
- Codabar Start/Stop Character Transmission148
- Codabar Start/Stop Character Set149
- Codabar Start/Stop Character Match149
- Codabar Quiet Zones150
- Codabar Length Control150
- Codabar Set Length 1151
- Codabar Set Length 2152
Abc Codabar153
- ABC Codabar Enable/Disable153
- ABC Codabar Concatenation Mode153
- ABC Codabar Dynamic Concatenation Timeout154
- ABC Codabar Force Concatenation155
Code 11156
- Code 11 Enable/Disable156
- 2D Symbologies181
- 2D Global Features181
Software Configuration Strings213
- Command Syntax214
  - Serial Configuration Strings216
  - 2D Codes237
References241
- RS-232 Parameters242
- Symbologies251
  - Set Length251
- Data Editing253
- Reading Parameters264
  - Double Read Timeout264
  - Good Read LED Duration265
- Scanning Features266
Technical Specifications273
- LED and Beeper Indications276
- Indicators276
- Error Codes278
- Host Interface Connections278
- GPS4400 Dimensions279
- Imager Labeling281
  - Aiming System281
Standard Defaults283
Sample Bar Codes295
- Composite Codes298
Keypad299
Host Configuration Reserved Characters301
Scancode Tables303
- Control Character Emulation303
  - Single Press and Release Keys303
- Interface Type PC at PS/2, USB-Keyboard or USB-Keyboard for APPLE304
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode306
- Digital Interface308
- Ibm31Xx 102-Key309
- Ibm Xt310
- Microsoft Windows Codepage 1252311
Screw Mounting Template313
- Ascii Chart315
