1D Symbologies Enter/Exit Programming Mode
Product Reference Guide
125
I 2 of 5 Set Length 1
This feature specifies one of the bar code lengths for I 2 of 5 Length Control.
Length 1 is the minimum label length if in Variable Length Mode, or the first
fixed length if i
n Fixed Length Mode. The length includes the bar code’s
check and data characters. The length can be set from 2 to 50 characters in
increments of two.
Table 7 provides some examples for setting Length 1. See page 241 for
detailed instructions on setting this feature.

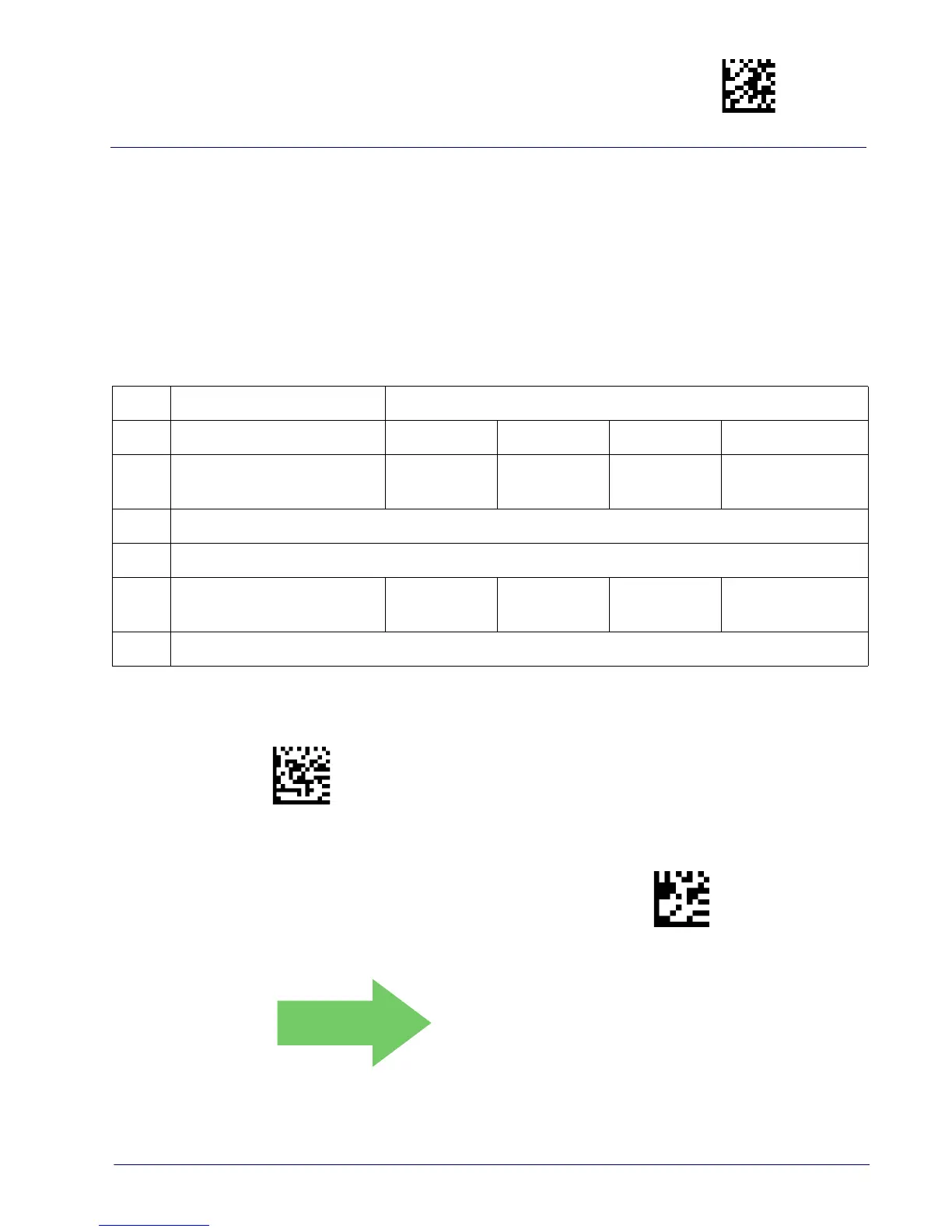

Table 7. I 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
2 Characters 6 Characters 14 Characters 50 Characters
2
Pad with leading zeros to
yield two digits
02 06 14 50
3 Scan ENTER/EXIT PROGRAMMING MODE
4 Scan SELECT I 2 of 5 LENGTH 1 SETTING
5
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘2’ ‘0’ and ‘6’ ‘1’ and ‘4’ ‘5’ AND ‘0’
6 Scan ENTER/EXIT PROGRAMMING MODE
Select I 2 of 5 Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start again
at the beginning.
CANCEL
DEFAULT
06 = Length 1 is 6 Characters
