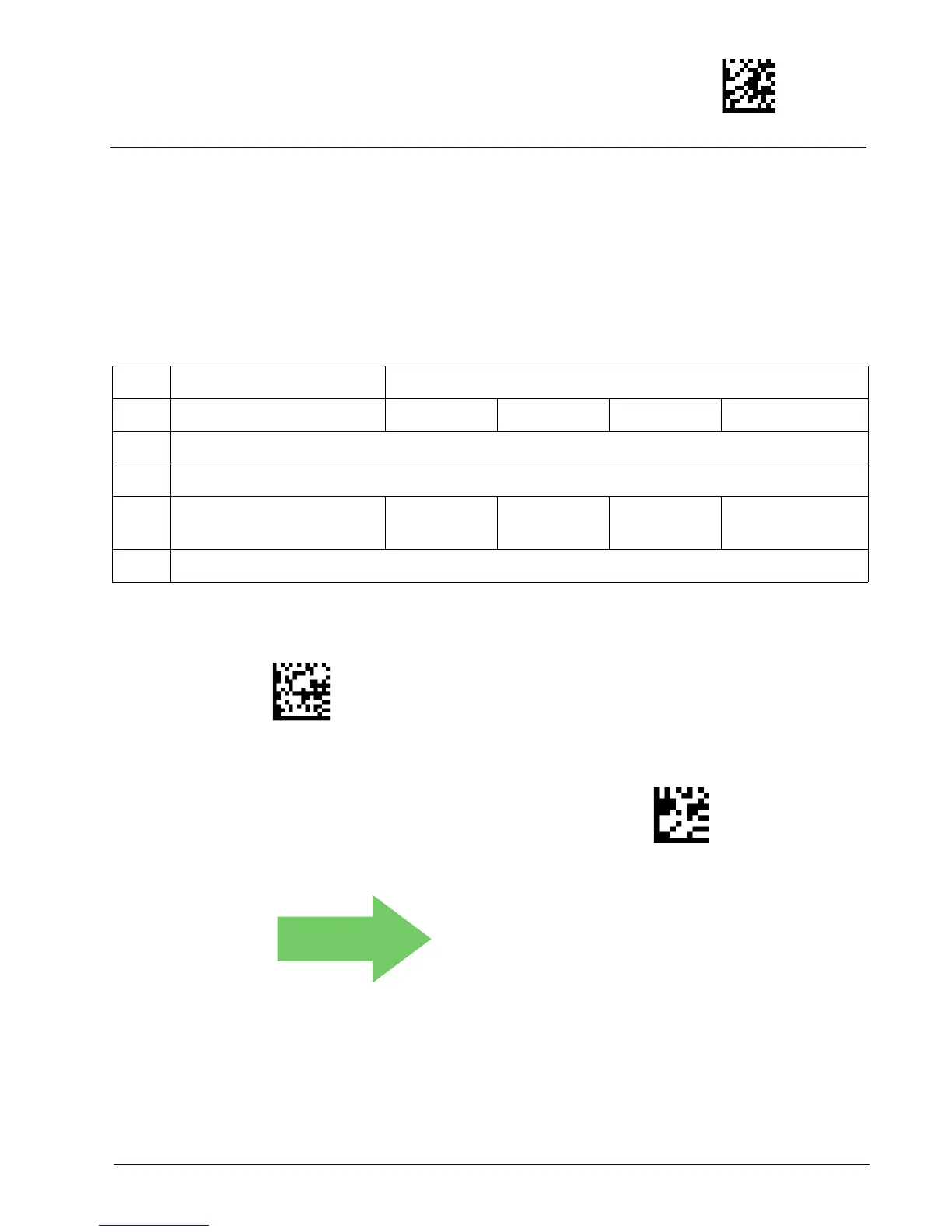

1D Symbologies Enter/Exit Programming Mode
Product Reference Guide
165
MSI Set Length 1
This feature specifies one of the bar code lengths for MSI Length Control.
Length 1 is the minimum label length if in Variable Length Mode, or the first
fixed length if in Fixed Length Mode. Length includes the bar code’s data
characters only. The length can be set from 01 to 50 characters.
Table 21 provides some examples for setting Length 1. See page 241 for
detailed instructions on setting this feature.
Table 21. MSI Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
01 Characters 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT MSI LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘1’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select MSI Set Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort and not
save the entry string. You can then start again at the beginning.
CANCEL
DEFAULT
01 = Length 1 is 1 Character
To Next Page
