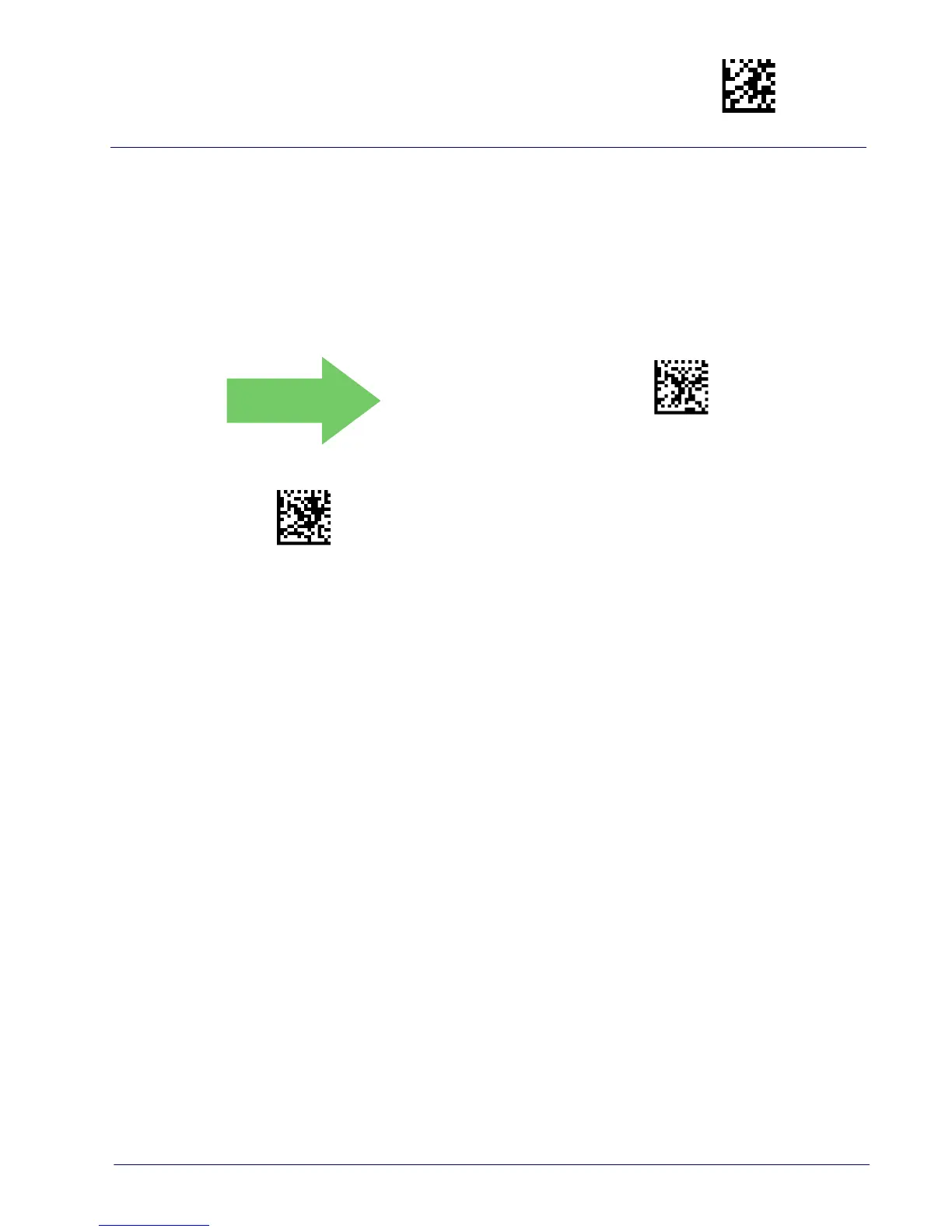

2D Symbologies Enter/Exit Programming Mode

Product Reference Guide

173

2D Structured Append

Enables/disables ability of reader to append multiple 2D Codes labels in a

structured format. The structured append property is globally applied to the

following symbologies, if these are enabled:

• Data Matrix •Aztec

•QR Code • PDF 417

DEFAULT

$CDESA00(CR)

Structured Append = Disable

$CDESA01(CR)

Structured Append = Enable
