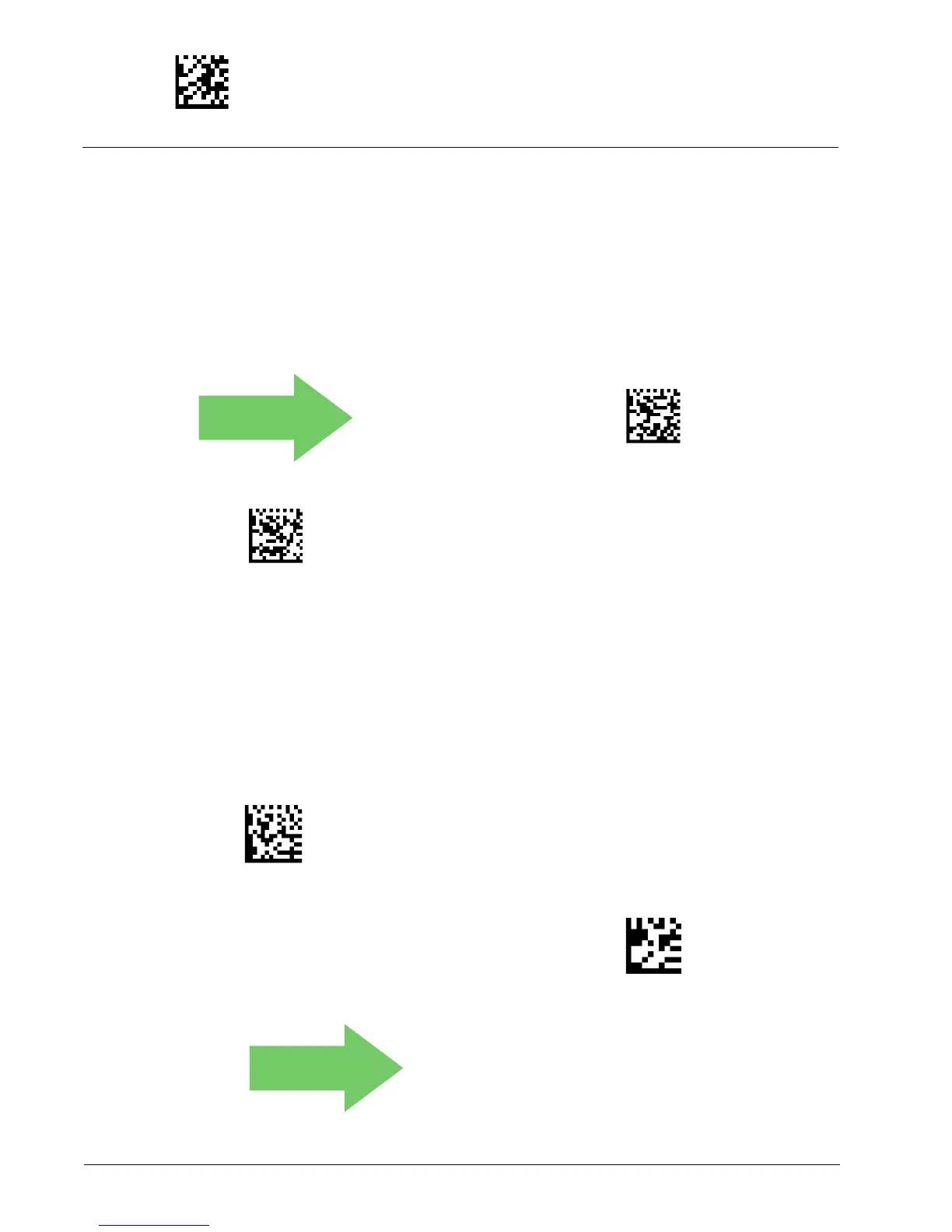

Enter/Exit Programming Mode 2D Symbologies

182

Gryphon™ GPS4400

Data Matrix Length Control

This feature specifies either variable length decoding or fixed length decod-

ing for this symbology.

Variable Length:

For variable length decoding, a minimum and maximum

length may be set.

Fixed Length:

For fixed length decoding, two different lengths may be set.

DEFAULT

$CDMLC00(CR)

Data Matrix Length Control = Variable Length

$CDMLC01(CR)

Data Matrix Length Control = Fixed Length

Data Matrix Set Length 1

Specifies one of the bar code lengths for Data Matrix Length Control. Length 1

is the minimum label length if in Variable Length Mode, or the first fixed

length if in Fixed Length

Mode. Characters can be set from 0001 to 3,116

characters in increments of 0001 (pad with zeros).

See page 241 for detailed instructions on setting this feature.

$CDML1

Select Data Matrix Length 1 Setting

To configure this feature, scan the ENTER/EXIT PRO-

GRAMMING MODE bar code above, then the bar code

left followed by the digits from the Alphanumeric

characters in

Appendix D, Keypad representing your

desired character(s). End by scanning the ENTER/EXIT

bar c

ode again.

Make a mistake? Scan the CANCEL bar code to abort

and not save the entry string. You can then start again

at the beginning.

CANCEL

DEFAULT

0001 = Length 1 is 1 Character
