Enter/Exit Programming Mode 1D Symbologies

150

Gryphon™ GPS4400

GS1 DATABAR™ OMNIDIRECTIONAL

The following options apply to the GS1 DataBar™ Omnidirectional (formerly

RSS-14) symbology.

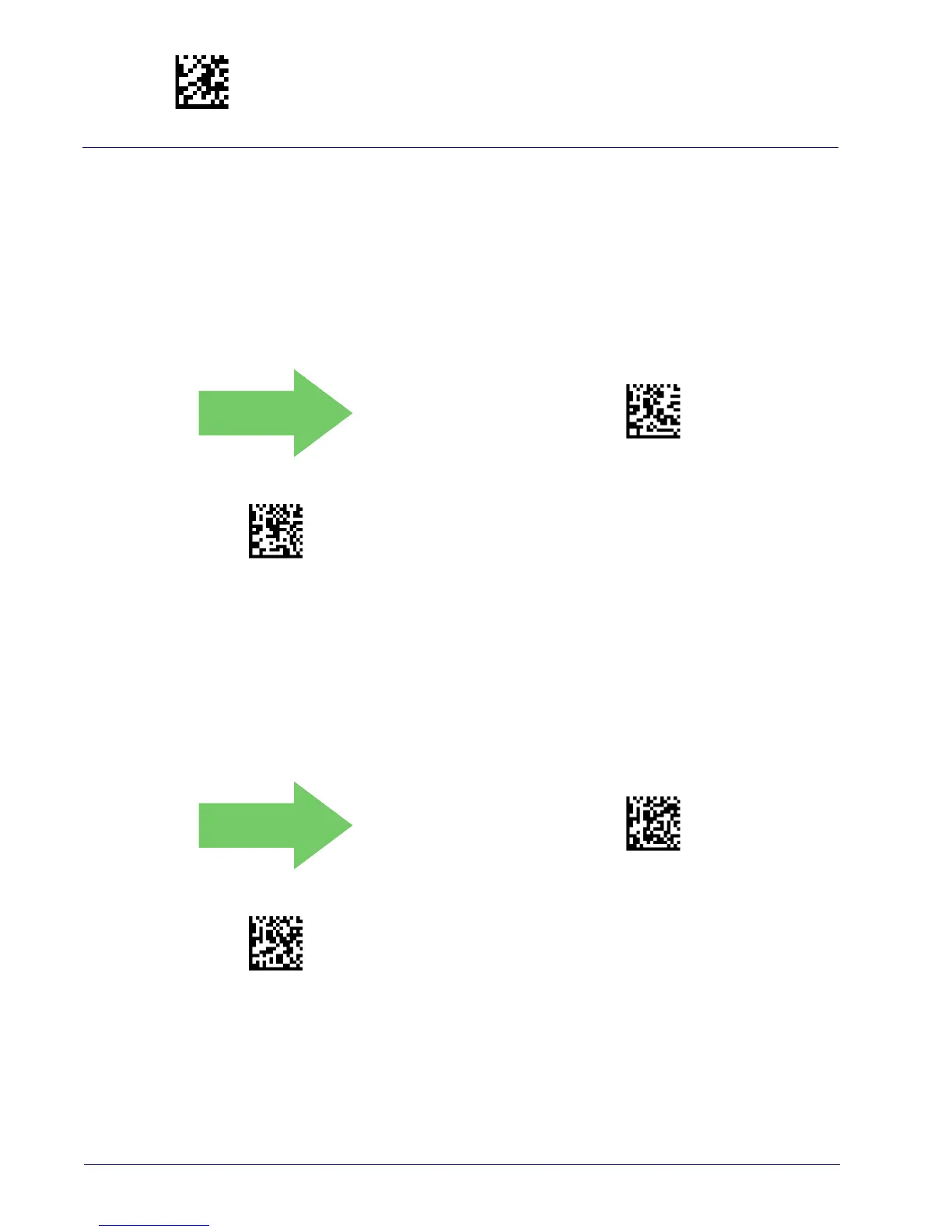

GS1 DataBar™ Omnidirectional Enable/Disable

When disabled, the reader will not read GS1 DataBar™ Omnidirectional bar

codes.

DEFAULT

$C4BEN00(CR)

GS1 DataBar™ Omnidirectional = Disable

$C4BEN01(CR)

GS1 DataBar™ Omnidirectional = Enable

GS1 DataBar™ Omnidirectional GS1-128 Emulation

When enabled, GS1 DataBar™ Omnidirectional bar codes will be translated

to the GS1-128 label data format.

DEFAULT

$C4BU800(CR)

GS1 DataBar™ Omnidirectional GS1-128 Emulation = Disable

$C4BU801(CR)

GS1 DataBar™ Omnidirectional GS1-128 Emulation = Enable
