To Next Page

To Previous Page

Enter/Exit Programming Mode 1D Symbologies

162

Gryphon™ GPS4400

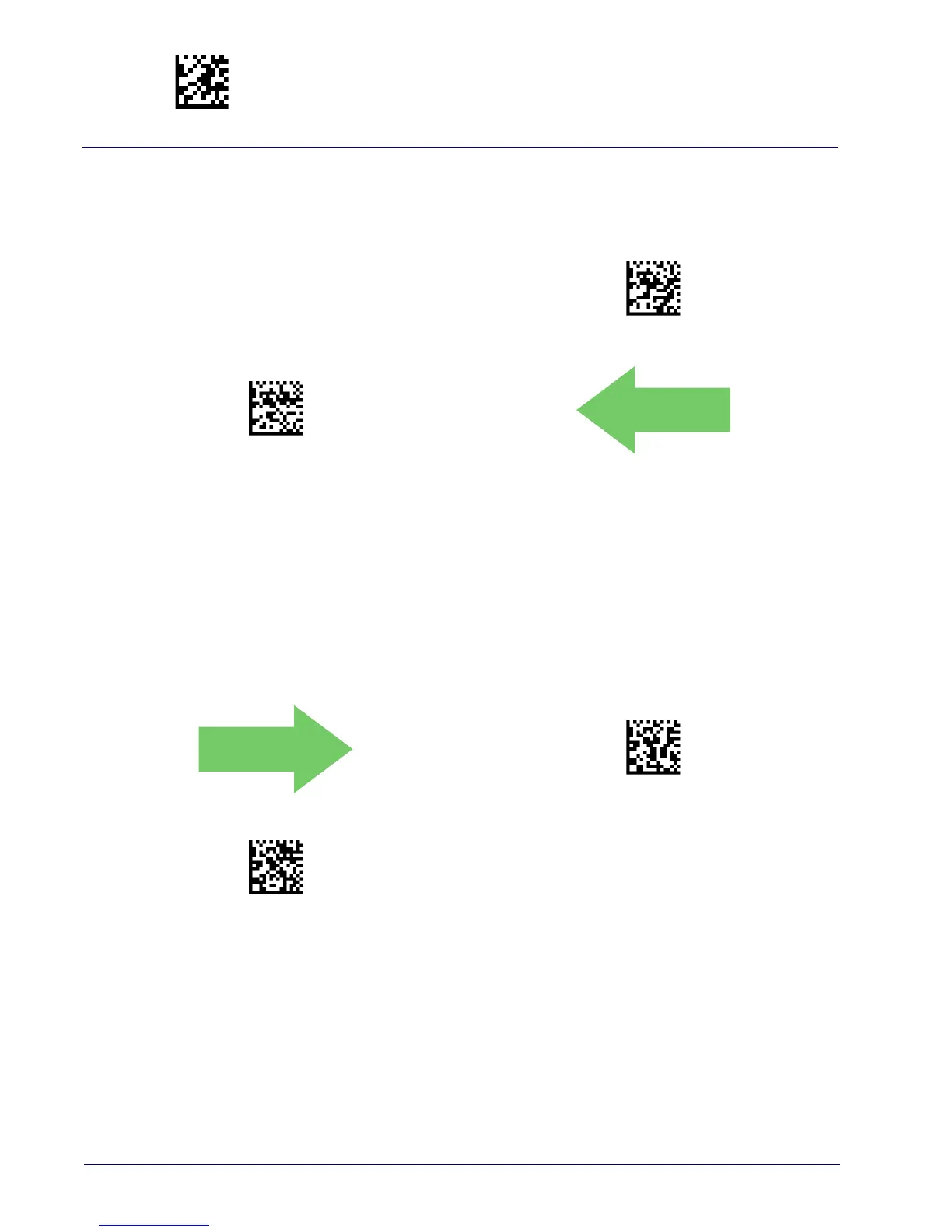

Code 93 Quiet Zones

Enables/disables quiet zones for Code 93.

$CC9LO02(CR)

Code 93 Quiet Zones = Quiet Zones on two sides

$CC9LO03(CR)

Code 93 Quiet Zones = Small Quiet Zones on two sides

DEFAULT

MSI

The following options apply to the MSI symbology.

MSI Enable/Disable

Enables/Disables ability of reader to decode MSI labels.

DEFAULT

$CMSEN00(CR)

MSI = Disable

$CMSEN01(CR)

MSI = Enable

Default Chapter3
