Enter/Exit Programming Mode 1D Symbologies

120

Gryphon™ GPS4400

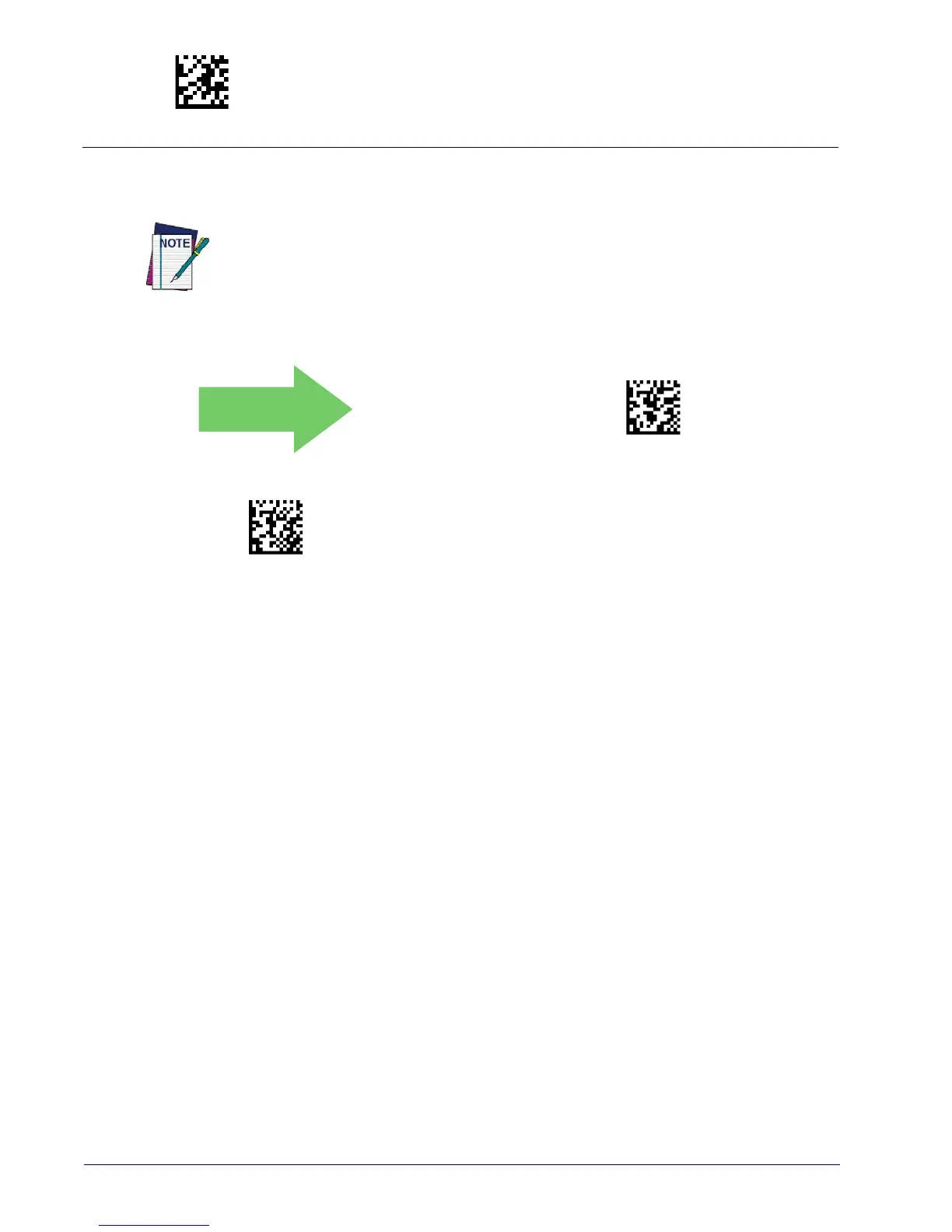

ISBT 128 Concatenation Mode

Specifies the concatenation mode between Static and Dynamic.

DEFAULT

$CI8CM00CR)

ISBT 128 Concatenation Mode = Static

$CI8CM01CR)

ISBT 128 Concatenation Mode = Dynamic

This option is only valid when ISBT 128 Concatenation is enabled (see "

ISBT 128 Con-

catenation" on page 119

Default Chapter3
