Enter/Exit Programming Mode 1D Symbologies

138

Gryphon™ GPS4400

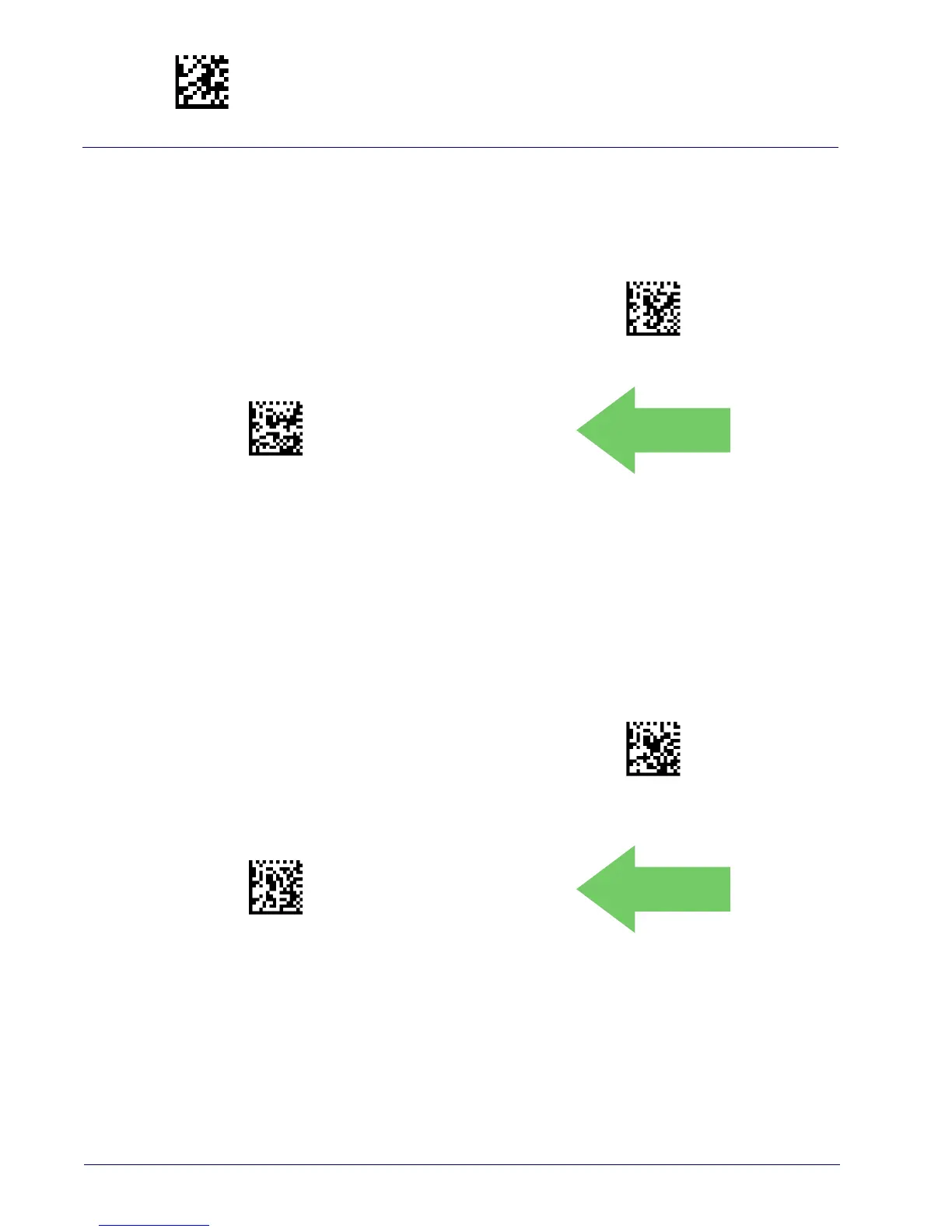

Codabar Check Character Transmission

Enable this option to transmit the check character along with Codabar bar

code data.

$CCBCT00(CR)

Codabar Check Character Transmission = Don’t Send

$CCBCT01(CR)

Codabar Check Character Transmission = Send

DEFAULT

Codabar Start/Stop Character Transmission

Enable this option to enable/disable transmission of Codabar start and stop

characters

$CCBSS00(CR)

Codabar Start/Stop Character Transmission =

Don’t Transmit

$CCBSS01(CR)

Codabar Start/Stop Character Transmission = Transmit

DEFAULT
