Gryphon™ GPS4400
LED and Beeper Indications

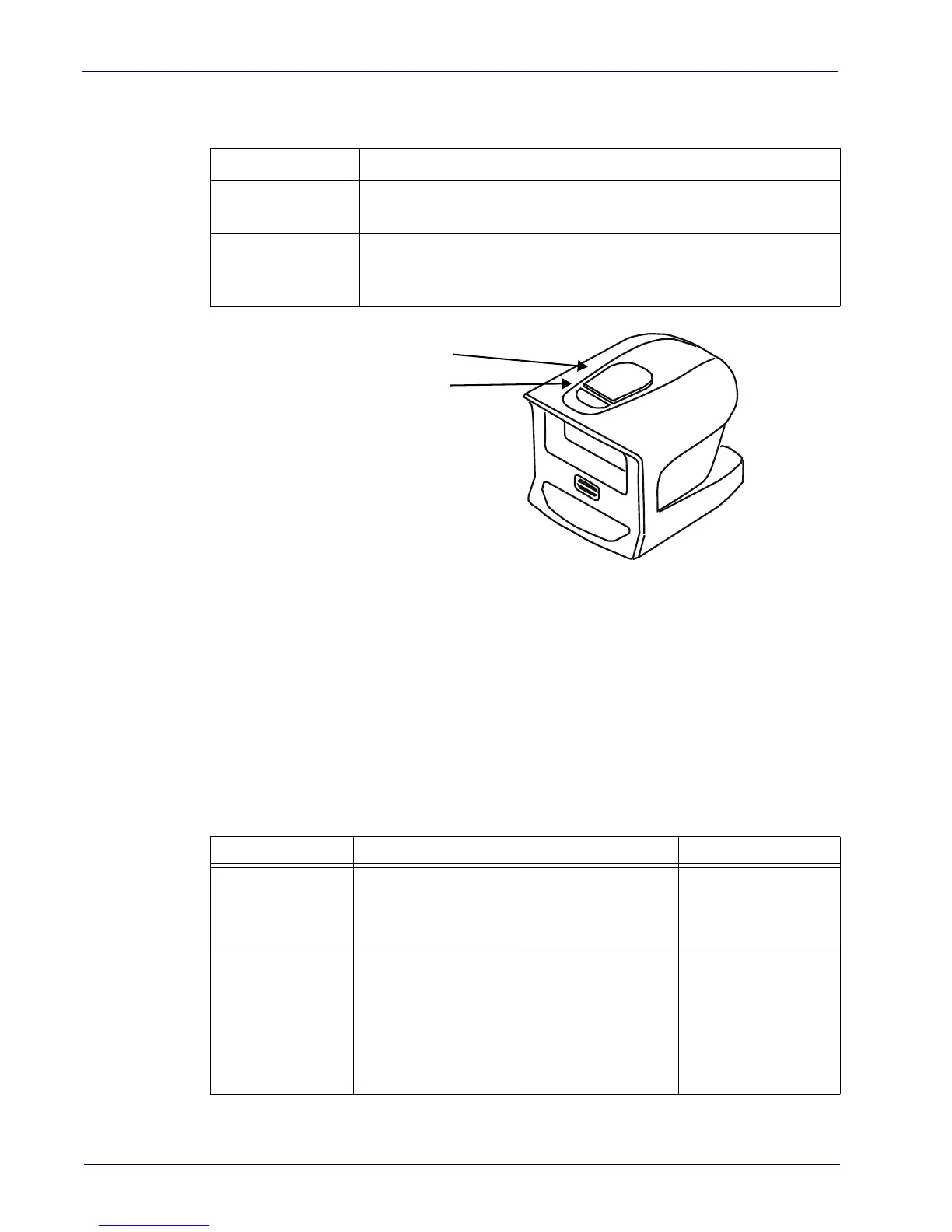

The top of the product has a button and an indicator LED:
Trigger Button
Press for manual trigger
Green LED
ON =
Good Read or trigger button press
Green LED Blinks =
USB enumeration or interface inactive, waiting for change of configu-
ration, during transfer of captured image, or during Flash memory
updates
Indicators
The reader’s beeper sounds and its LED illuminates to indicate various
functions or errors on the reader. An optional “Green Spot” also performs
useful functions. The following tables list these indications. One exception
to the behaviors listed in the tables is that the reader’s functions are pro-
grammable, and so may or may not be turned on. For example, certain
indi-
cations such as the power-up beep can be
disabled using programming bar
code labels.
Indicator Description LED Beeper
Power-up Beep
The reader is in the pro-
cess of powering-up.
Reader beeps four
time
s at highest fre-
quency and volume
upon power-up.
Good Read Beep
A label has been suc-
cessfully scanned by
the r
eader.
LED behavior for this
in
dication is configu-
rable via the feature
“G
ood Read: When to
Indicate”
(see the PRG for infor-
mation.)
The reader will beep
once at
current fre-
quency, volume, mono/
bi-tonal setting and
du
ration upon a suc-
cessful label scan.
