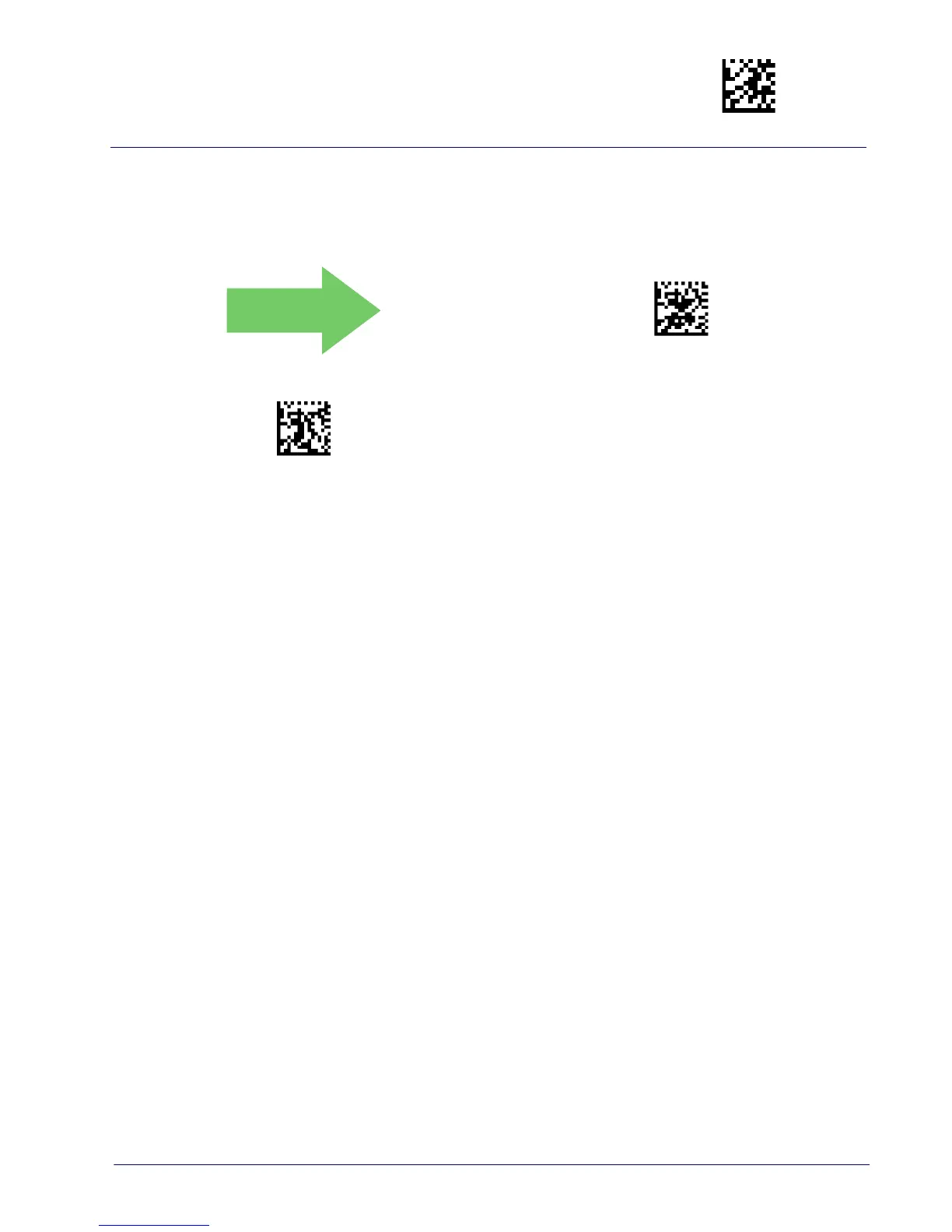

1D Symbologies Enter/Exit Programming Mode

Product Reference Guide

115

Code 128 Length Control

This feature specifies either variable length decoding or fixed length decod-

ing for the Code 128 symbology. See page 241 for more information.

DEFAULT

$CC8LC00(CR)

Code 128 Length Control = Variable Length

$CC8LC01(CR)

Code 128 Length Control = Fixed Length

Default Chapter3
