88 SAFERY LASER SCANNER
CHAPTER 9
DIAGNOSTICS

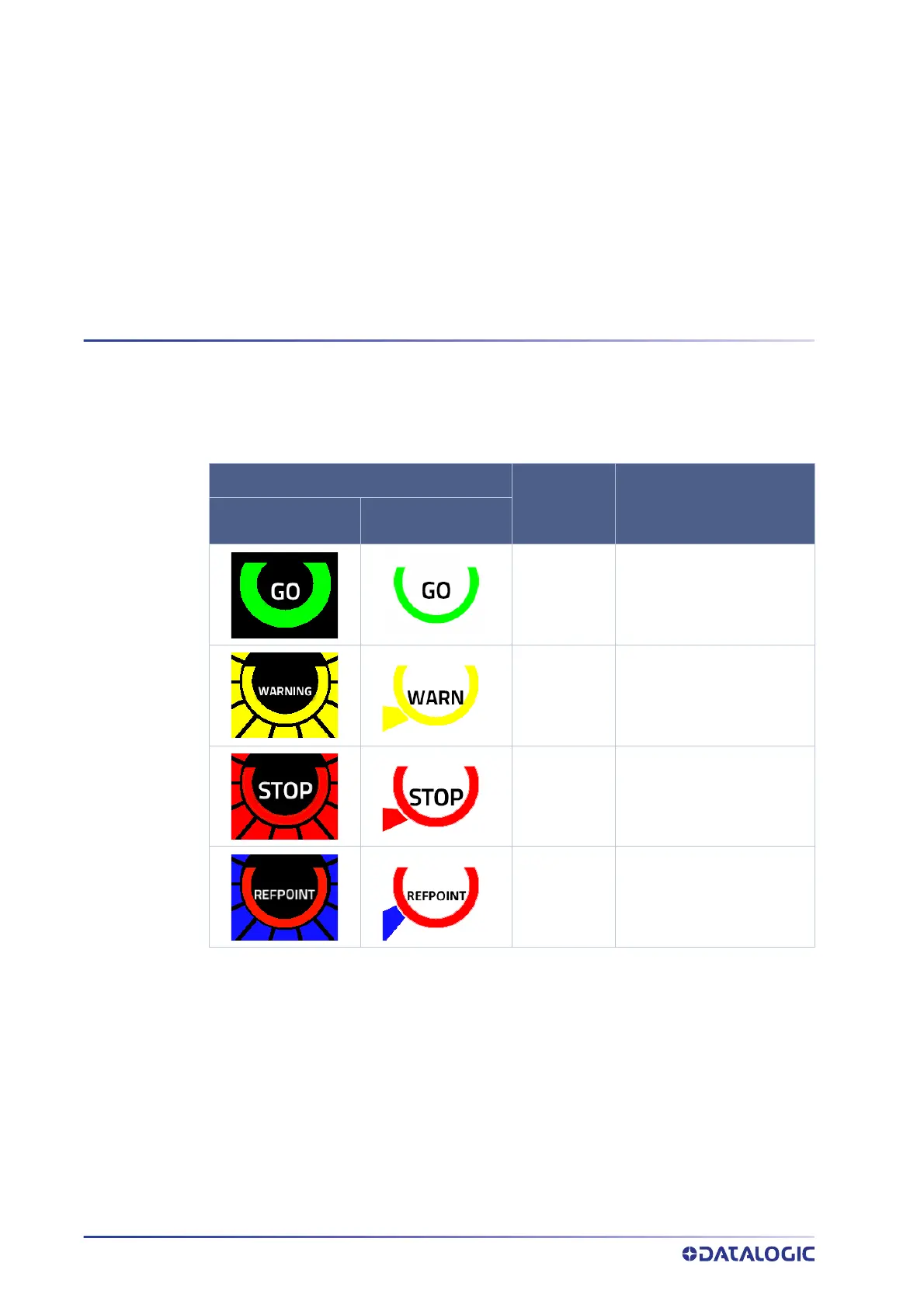

MONITORING BY DISPLAY
Configuration valid
Configuration
pending acceptance
ON State
The device is correctly func-
tioning (OSSDs GO Condi-
tion). No presence detected
in the Safety and Warning
Area.
Warning for
intrusion into
Warning Area
The device is correctly func-
tioning. The device has
detected a presence in the
Warning Area.
OFF State for
intrusion into
Safety Area
The device is correctly func-
tioning (OSSDs STOP Condi-
tion). The device has detected
a pr
esence in the Safety
Zone.
OFF State for
Reference
Points
The device has detected that
R
eference Points have
moved. The Display Sector in
the direction of the moved
reference point is lit in blue.
