FUNCTIONS
76 SAFERY LASER SCANNER
EDM
The External Device Monitoring (EDM) function controls external devices by verifying
the OSSDs status.
EDM enabled
When EDM is enabled it is necessary to connect the EDM input to a 24 VDC normally-
closed contact of the device to be monitored.
The figures below show how to connect the EDM input.

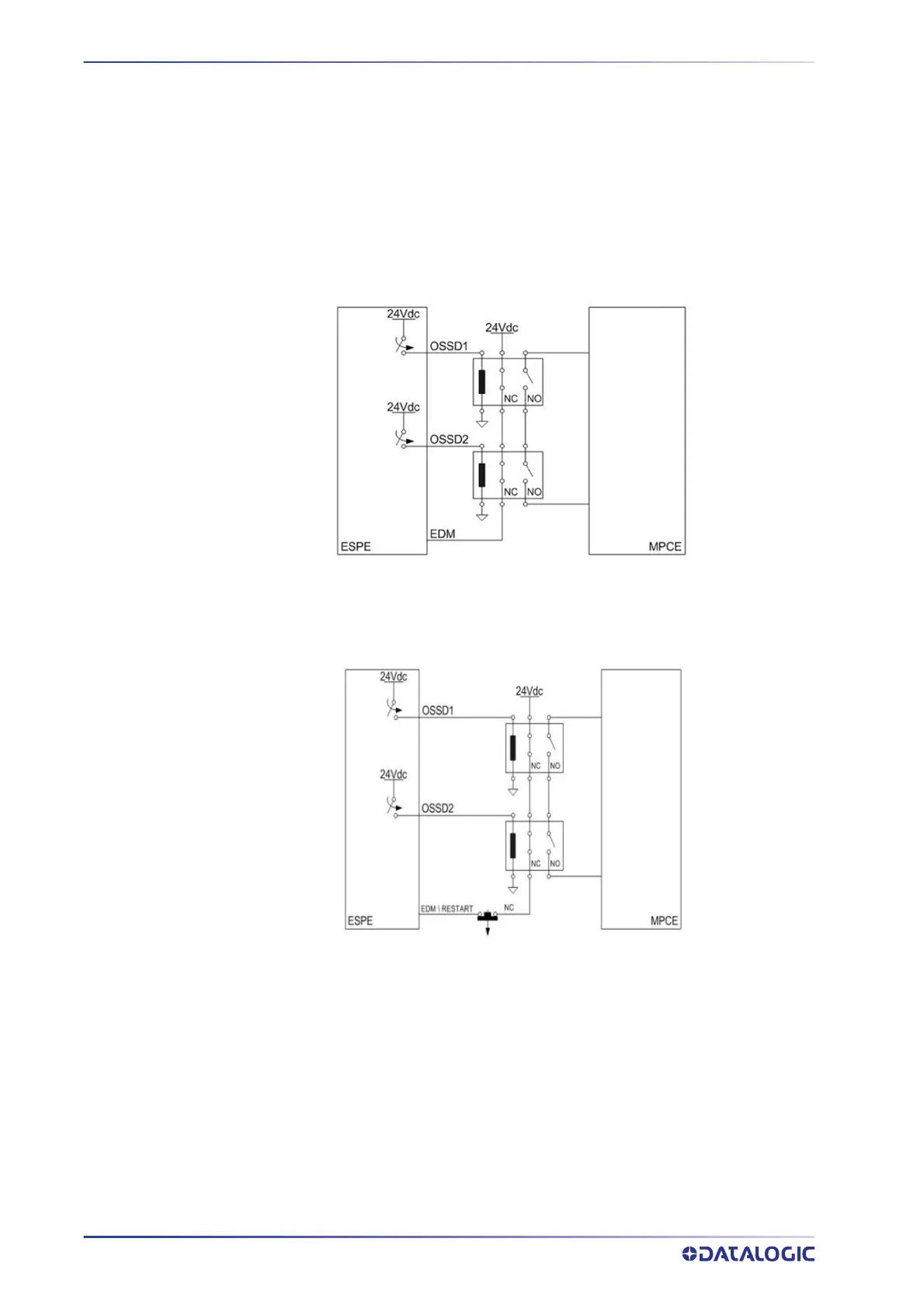

Figure 15 - EDM connection with automatic restart
Figure 16 - EDM connection with manual restart
