DEVICES ORIENTATION
The installation may require different safety laser scanners in the same location. In this
state, it is possible that the devices interfere with each other and the OSSD might to the
OFF-state.
Specific mounting requirements must be followed to prevent a dangerous failure.
• Tilt the Laser Sentinel so that the scanning plane does not enter the output win-
dow of any other scanner.

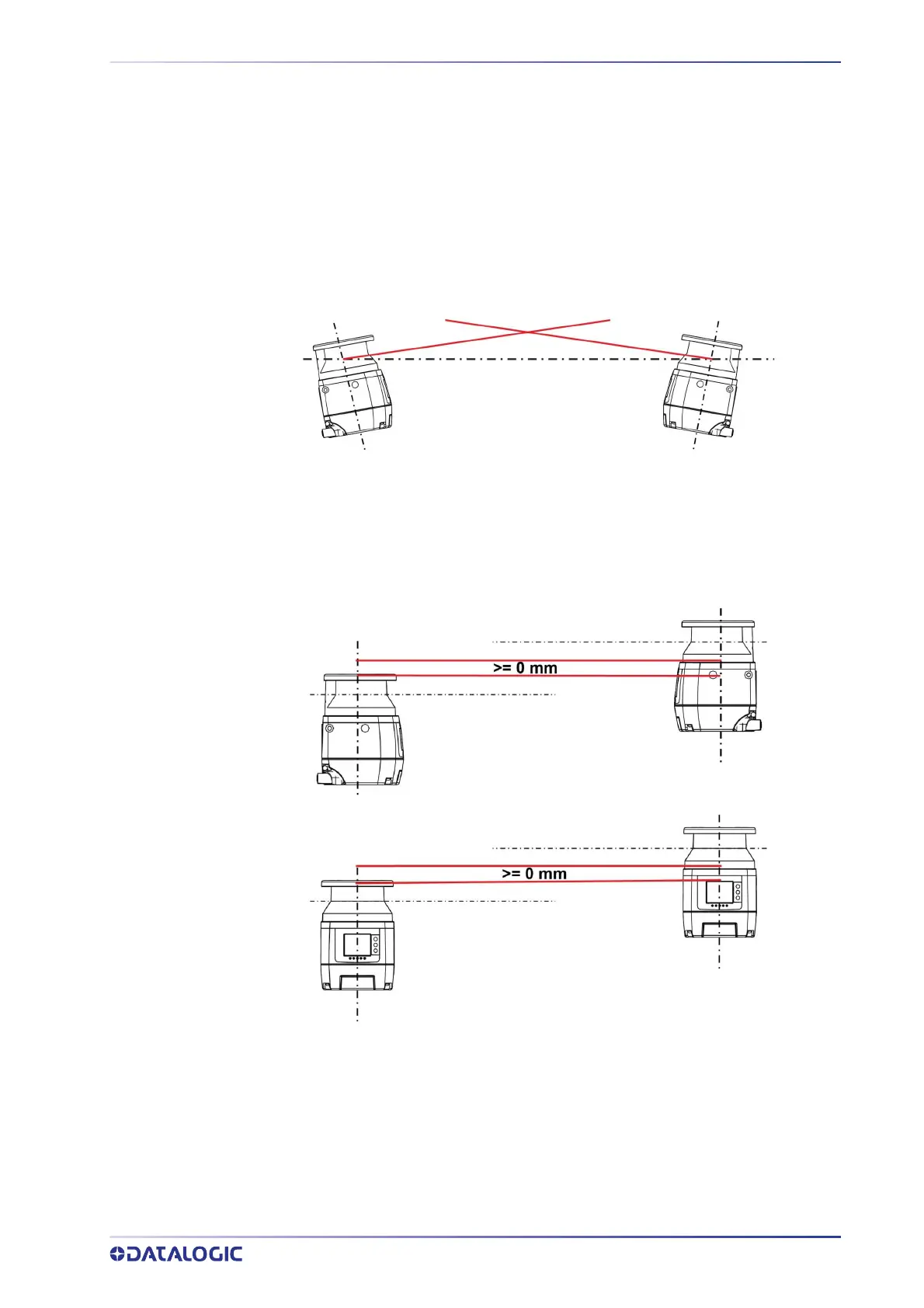

Figure 10 - Scanner mounted ad different scanning angles
• Mount the devices at different heights so that there is an offset equal to or greater
than the height of the scanner output window.
Figure 11 - Scanners mounted ad different scanning heights
• Set the devices to different response time.
