CHAPTER 6
ELECTRICAL CONNECTIONS

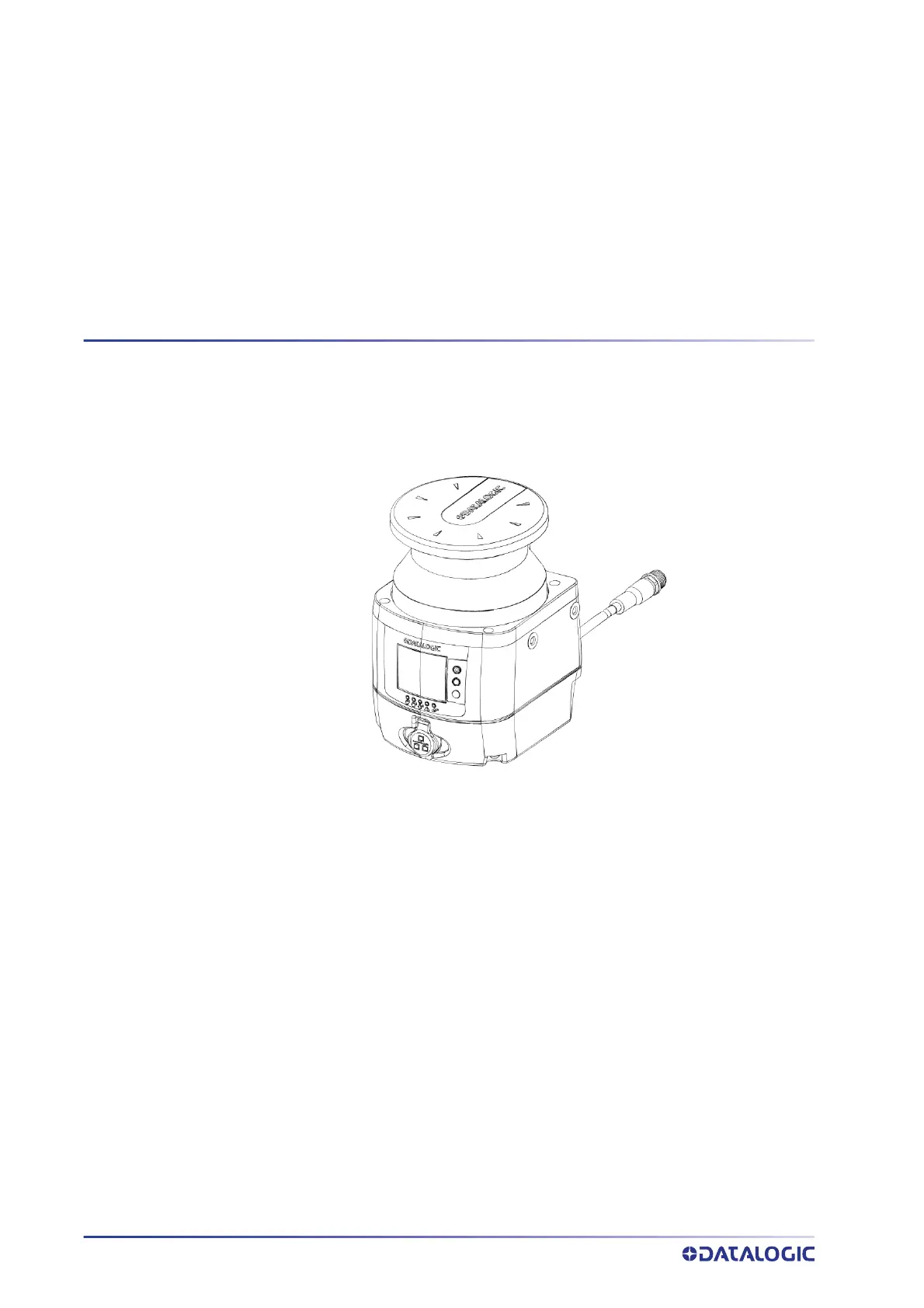

LASER SENTINEL STAND ALONE MODEL CONNECTORS
The Laser Sentinel Stand Alone model includes:
A
B
A M12 4-pole connector (Programming and monitoring of safety laser scanner with
Graphic User Interface)
B
M12 8-pole connector (Machine interface: power supply and inputs/outputs)
